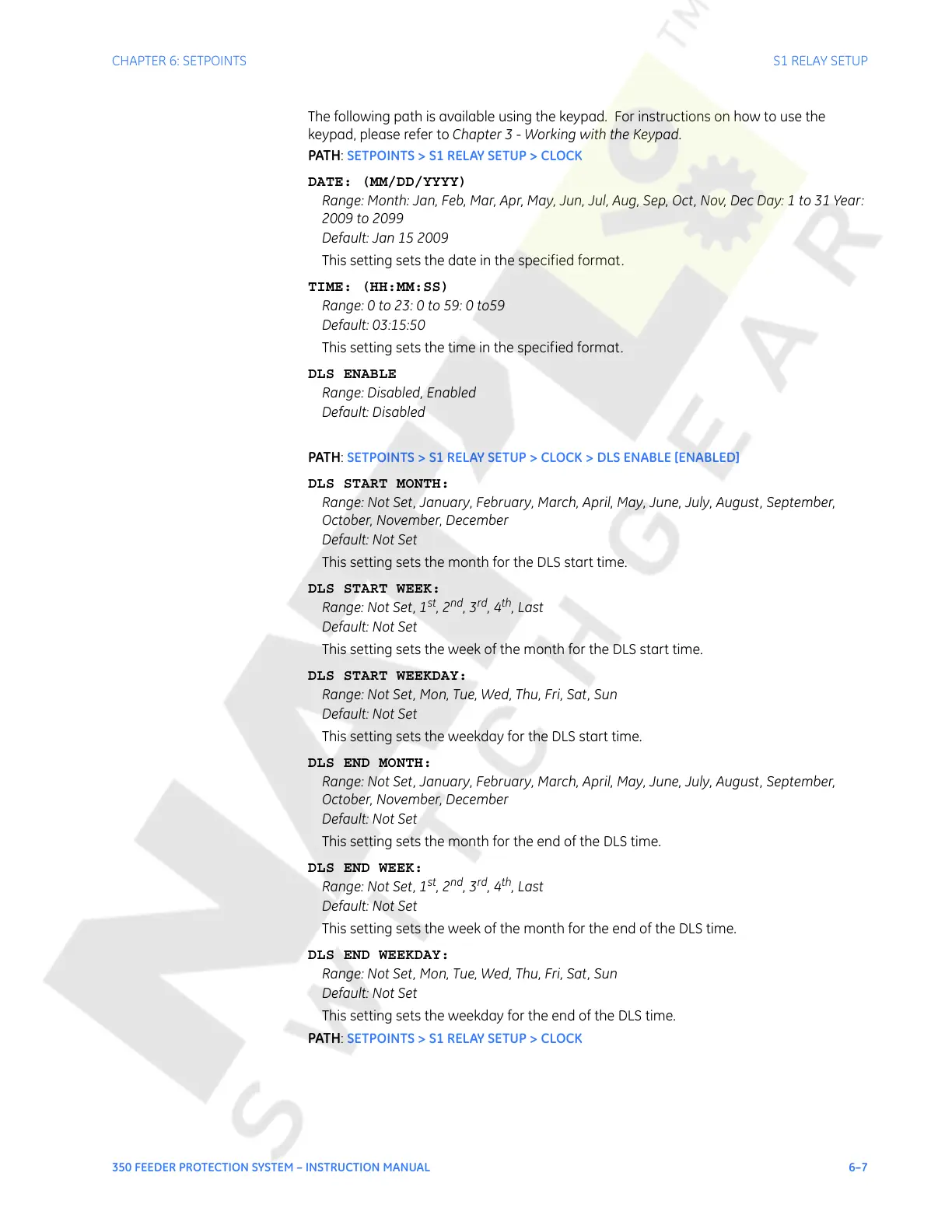

CHAPTER 6: SETPOINTS S1 RELAY SETUP
350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL 6–7
The following path is available using the keypad. For instructions on how to use the
keypad, please refer to Chapter 3 - Working with the Keypad.
PATH:
SETPOINTS > S1 RELAY SETUP > CLOCK
DATE: (MM/DD/YYYY)
Range: Month: Jan, Feb, Mar, Apr, May, Jun, Jul, Aug, Sep, Oct, Nov, Dec Day: 1 to 31 Year:
2009 to 2099
Default: Jan 15 2009
This setting sets the date in the specified format.
TIME: (HH:MM:SS)
Range: 0 to 23: 0 to 59: 0 to59
Default: 03:15:50
This setting sets the time in the specified format.
DLS ENABLE
Range: Disabled, Enabled
Default: Disabled
PATH:
SETPOINTS > S1 RELAY SETUP > CLOCK > DLS ENABLE [ENABLED]
DLS START MONTH:
Range: Not Set, January, February, March, April, May, June, July, August, September,
October, November, December
Default: Not Set
This setting sets the month for the DLS start time.
DLS START WEEK:
Range: Not Set, 1
st
, 2
nd
, 3
rd
, 4
th
, Last
Default: Not Set
This setting sets the week of the month for the DLS start time.
DLS START WEEKDAY:
Range: Not Set, Mon, Tue, Wed, Thu, Fri, Sat, Sun
Default: Not Set
This setting sets the weekday for the DLS start time.
DLS END MONTH:
Range: Not Set, January, February, March, April, May, June, July, August, September,
October, November, December
Default: Not Set
This setting sets the month for the end of the DLS time.
DLS END WEEK:
Range: Not Set, 1
st
, 2
nd
, 3
rd
, 4
th
, Last
Default: Not Set
This setting sets the week of the month for the end of the DLS time.
DLS END WEEKDAY:
Range: Not Set, Mon, Tue, Wed, Thu, Fri, Sat, Sun
Default: Not Set
This setting sets the weekday for the end of the DLS time.
PATH:
SETPOINTS > S1 RELAY SETUP > CLOCK
