GE Multilin 350 Series User Manual

6–114 350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
S4 CONTROLS CHAPTER 6: SETPOINTS
S4 Controls

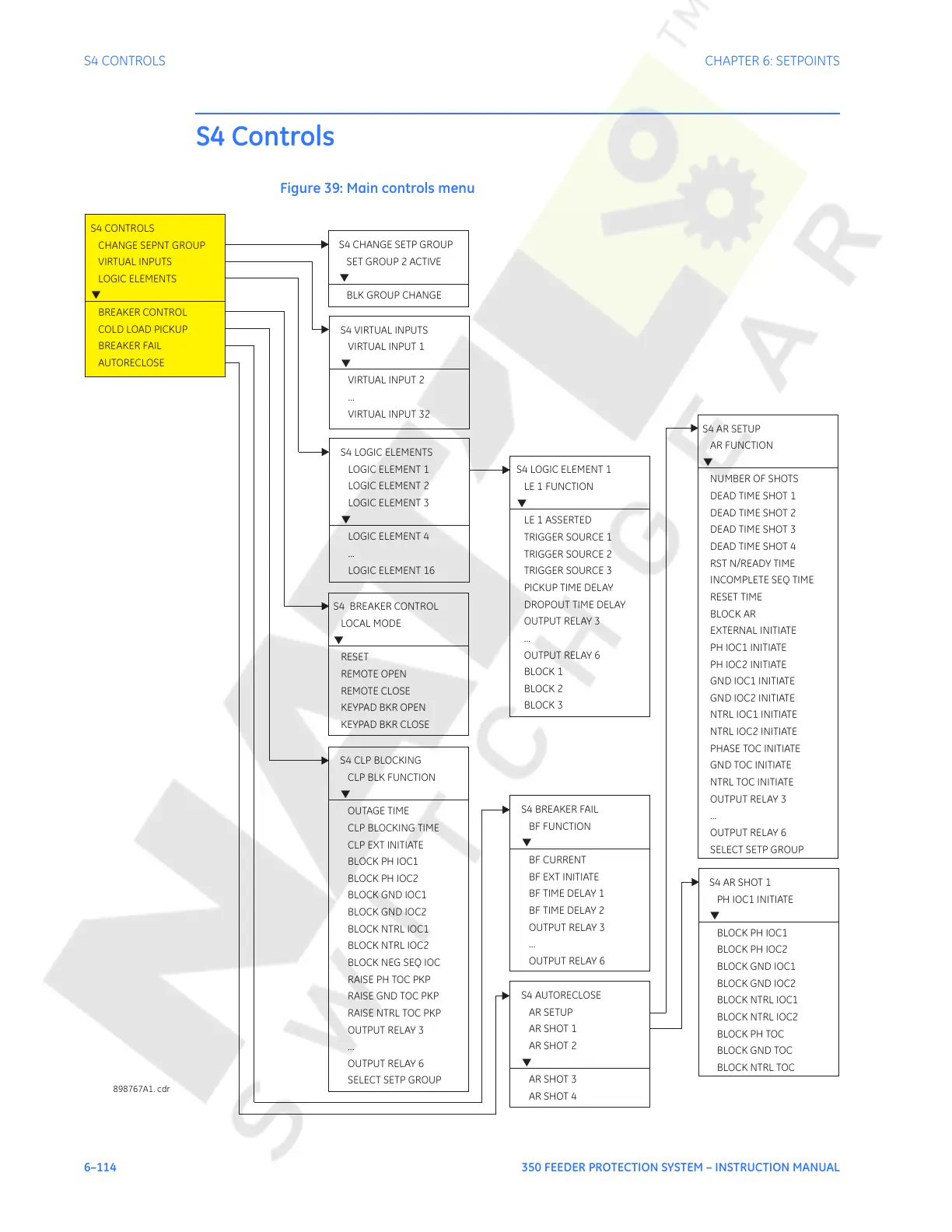

Figure 39: Main controls menu
S4 CONTROLS
CHANGE SEPNT GROUP
VIRTUAL INPUTS
LOGIC ELEMENTS
BREAKER CONTROL
COLD LOAD PICKUP
BREAKER FAIL
AUTORECLOSE
▼
S4 CHANGE SETP GROUP
SET GROUP 2 ACTIVE
BLK GROUP CHANGE
▼
S4 BREAKER CONTROL
LOCAL MODE
RESET
REMOTE OPEN
REMOTE CLOSE
KEYPAD BKR OPEN
KEYPAD BKR CLOSE
▼
S4 CLP BLOCKING
CLP BLK FUNCTION
OUTAGE TIME
CLP BLOCKING TIME
CLP EXT INITIATE
BLOCK PH IOC1
BLOCK PH IOC2
BLOCK GND IOC1
BLOCK GND IOC2
BLOCK NTRL IOC1
BLOCK NTRL IOC2
BLOCK NEG SEQ IOC
RAISE PH TOC PKP
RAISE GND TOC PKP
RAISE NTRL TOC PKP
OUTPUT RELAY 3
...
OUTPUT RELAY 6
SELECT SETP GR OUP
▼
S4 LOGIC ELEMENT 1
LE 1 FUNCTION
LE 1 ASSERTED
TRIGGER SOURCE 1
PICKUP TIME DELAY
DROPOUT TIME DELAY
OUTPUT RELAY 3
...
OUTPUT RELAY 6
BLOCK 1
BLOCK 2
BLOCK 3
TRIGGER SOURCE 2
TRIGGER SOURCE 3
▼
S4 AR SHOT 1
PH IOC1 INITIATE
BLOCK PH IOC1
BLOCK PH IOC2
BLOCK GND IOC1
BLOCK GND IOC2
BLOCK NTRL IOC1
BLOCK NTRL IOC2
BLOCK PH TOC
BLOCK GND TOC
BLOCK NTRL TOC
▼
S4 AR SETUP
AR FUNCTION
NUMBER OF SHOTS
DEAD TIME SHOT 1
RST N/READY TIME
INCOMPLETE SEQ TIME
RESET TIME
BLOCK AR
EXTERNAL INITIATE
PH IOC1 INITIATE
PH IOC2 INITIATE
GND IOC1 INITIATE
GND IOC2 INITIATE
NTRL IOC1 INITIATE
NTRL IOC2 INITIATE
PHASE TOC INITIATE
GND TOC INITIATE
NTRL TOC INITIATE
OUTPUT RELAY 3
...
OUTPUT RELAY 6
SELECT SETP GR OUP
DEAD TIME SHOT 2
DEAD TIME SHOT 3
DEAD TIME SHOT 4
▼
898767A1. cdr
S4 VIRTUAL INPUTS
...
VIRTUAL INPUT 1
VIRTUAL INPUT 2
VIRTUAL INPUT 32
▼
S4 LOGIC ELEMENTS
...
LOGIC ELEMENT 1
LOGIC ELEMENT 2
LOGIC ELEMENT 3
LOGIC ELEMENT 4
LOGIC ELEMENT 16
▼
S4 BREAKER FAIL
BF FUNCTION
BF CURRENT
BF EXT INITIATE
BF TIME DELAY 1
...
OUTPUT RELAY 6
BF TIME DELAY 2
OUTPUT RELAY 3
▼
S4 AUTORECLOSE
AR SETUP
AR SHOT 1
AR SHOT 2
AR SHOT 3
AR SHOT 4
▼
