6–14 350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
S1 RELAY SETUP CHAPTER 6: SETPOINTS
IEC 60870-5-103 serial
communication

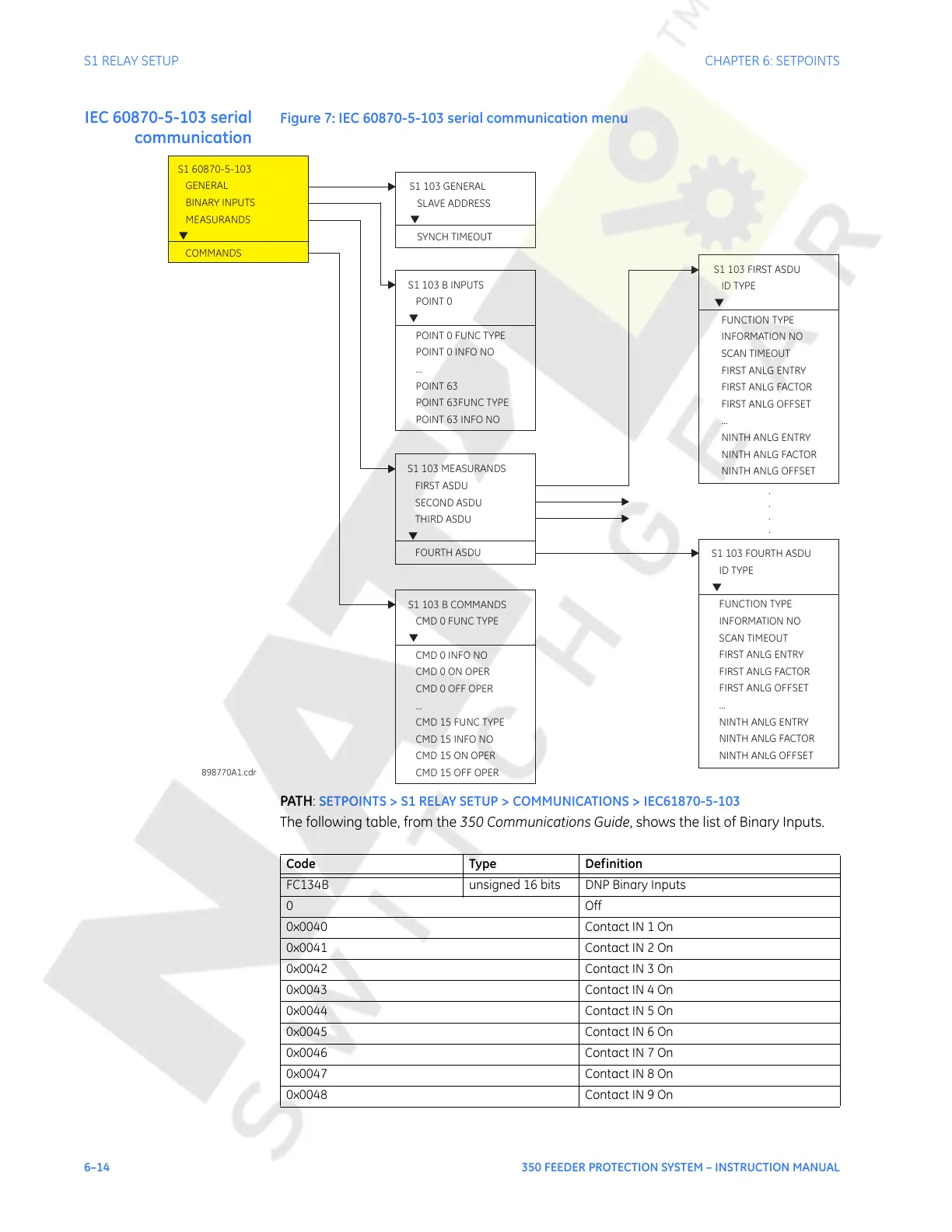

Figure 7: IEC 60870-5-103 serial communication menu
PATH:
SETPOINTS > S1 RELAY SETUP > COMMUNICATIONS > IEC61870-5-103
The following table, from the 350 Communications Guide, shows the list of Binary Inputs.
S1 103 FIRST ASDU
ID TYPE
FUNCTION TYPE
INFORMATION NO
SCAN TIMEOUT
FIRST ANLG ENTRY
FIRST ANLG FACTOR
FIRST ANLG OFFSET
...
NINTH ANLG ENTRY
NINTH ANLG FACTOR
NINTH ANLG OFFSET
▼
S1 103 GENERAL
SLAVE ADDRESS
SYNCH TIMEOUT
▼
898770A1.cdr
S1 103 MEASURANDS
FIRST ASDU
SECOND ASDU
THIRD ASDU
FOURTH ASDU
▼
S1 60870-5-103
GENERAL
BINARY INPUTS
MEASURANDS
COMMANDS
▼
S1 103 B COMMANDS
CMD 0 FUNC TYPE
CMD 0 INFO NO
CMD 0 ON OPER
CMD 0 OFF OPER
...
CMD 15 FUNC TYPE
CMD 15 INFO NO
CMD 15 ON OPER
CMD 15 OFF OPER
▼
S1 103 FOURTH ASDU
ID TYPE
FUNCTION TYPE
INFORMATION NO
SCAN TIMEOUT
FIRST ANLG ENTRY
FIRST ANLG FACTOR
FIRST ANLG OFFSET
...
NINTH ANLG ENTRY
NINTH ANLG FACTOR
NINTH ANLG OFFSET
▼
S1 103 B INPUTS
POINT 0
POINT 0 FUNC TYPE
POINT 0 INFO NO
...
POINT 63
POINT 63FUNC TYPE
POINT 63 INFO NO
▼
.
.
.
.
Code Type Definition
FC134B unsigned 16 bits DNP Binary Inputs
0Off
0x0040 Contact IN 1 On
0x0041 Contact IN 2 On
0x0042 Contact IN 3 On
0x0043 Contact IN 4 On
0x0044 Contact IN 5 On
0x0045 Contact IN 6 On
0x0046 Contact IN 7 On
0x0047 Contact IN 8 On
0x0048 Contact IN 9 On
