CHAPTER 4: ACTUAL VALUES A1 STATUS
350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL 4–3
A1 Status

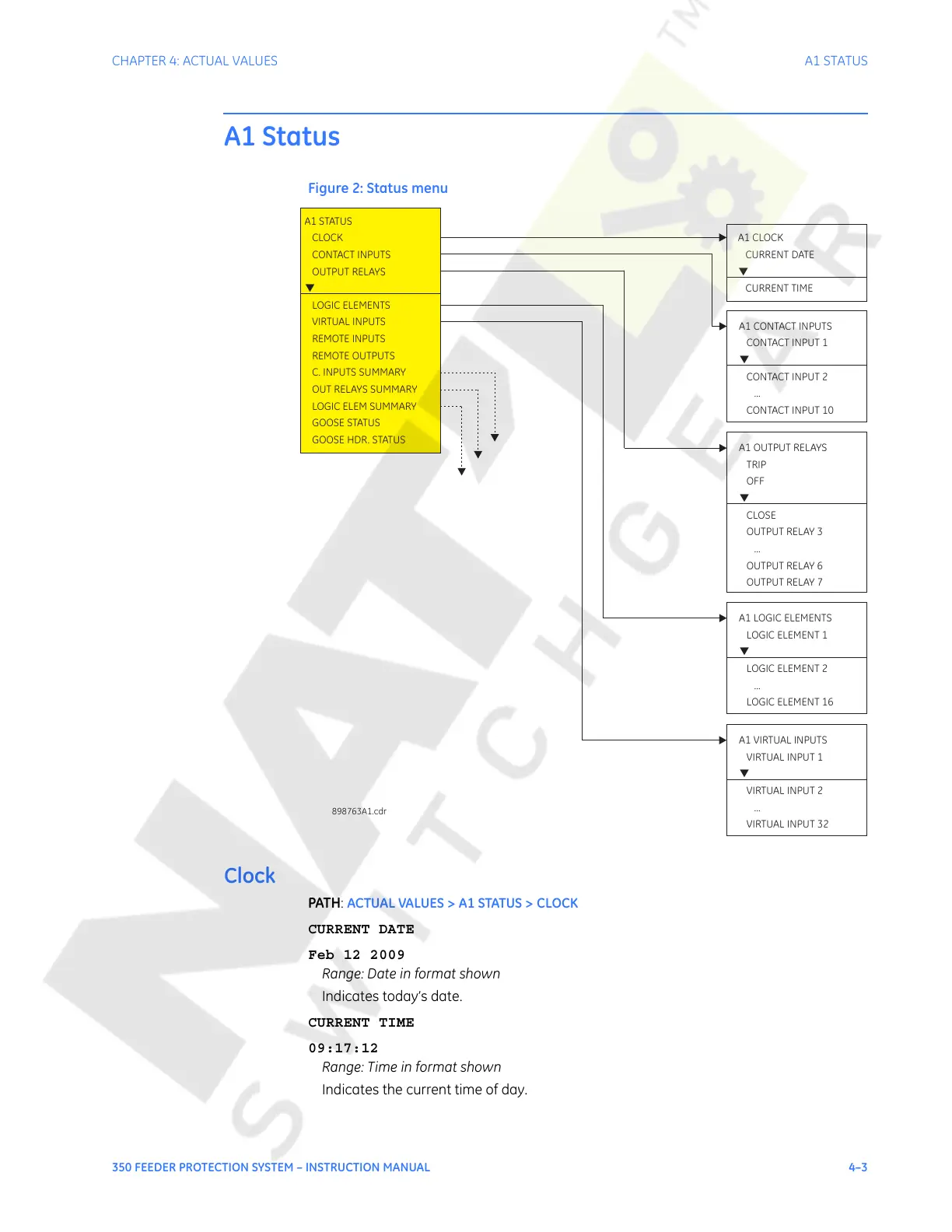

Figure 2: Status menu
Clock
PATH: ACTUAL VALUES > A1 STATUS > CLOCK
CURRENT DATE
Feb 12 2009
Range: Date in format shown
Indicates today’s date.
CURRENT TIME
09:17:12
Range: Time in format shown
Indicates the current time of day.
A1 CONTACT INPUTS
CONTACT INPUT 1
CONTACT INPUT 2
...
CONTACT INPUT 10
A1 CLOCK
CURRENT DATE
CURRENT TIME
A1 STATUS
CLOCK
CONTACT INPUTS
OUTPUT RELAYS
LOGIC ELEMENTS
VIRTUAL INPUTS
REMOTE INPUTS
REMOTE OUTPUTS
C. INPUTS SUMMARY
OUT RELAYS SUMMARY
LOGIC ELEM SUMMARY
GOOSE STATUS
GOOSE HDR. STATUS
898763A1.cdr
A1 OUTPUT RELAYS
TRIP
OFF
CLOSE
OUTPUT RELAY 3
...
OUTPUT RELAY 6
OUTPUT RELAY 7
A1 LOGIC ELEMENTS
LOGIC ELEMENT 1
2
...
16
LOGIC ELEMENT
LOGIC ELEMENT
A1 VIRTUAL INPUTS
1
2
...
32
VIRTUAL INPUT
VIRTUAL INPUT
VIRTUAL INPUT
