NX-1348E-ICON - 8 -
g
GE Interlogix
ENTER CODE ICON
The enter code icon is on whenever a valid code should be entered on the keypad.
1.. 48 ZONE ICON
The zone icons are “off” when everything is normal. A zone icon will be “on” if the zone has been bypassed. If
a zone icon is “flashing”, that zone is in alarm or has been faulted. If a zone icon is “flashing” rapidly, it means
that the zone is in a trouble condition.

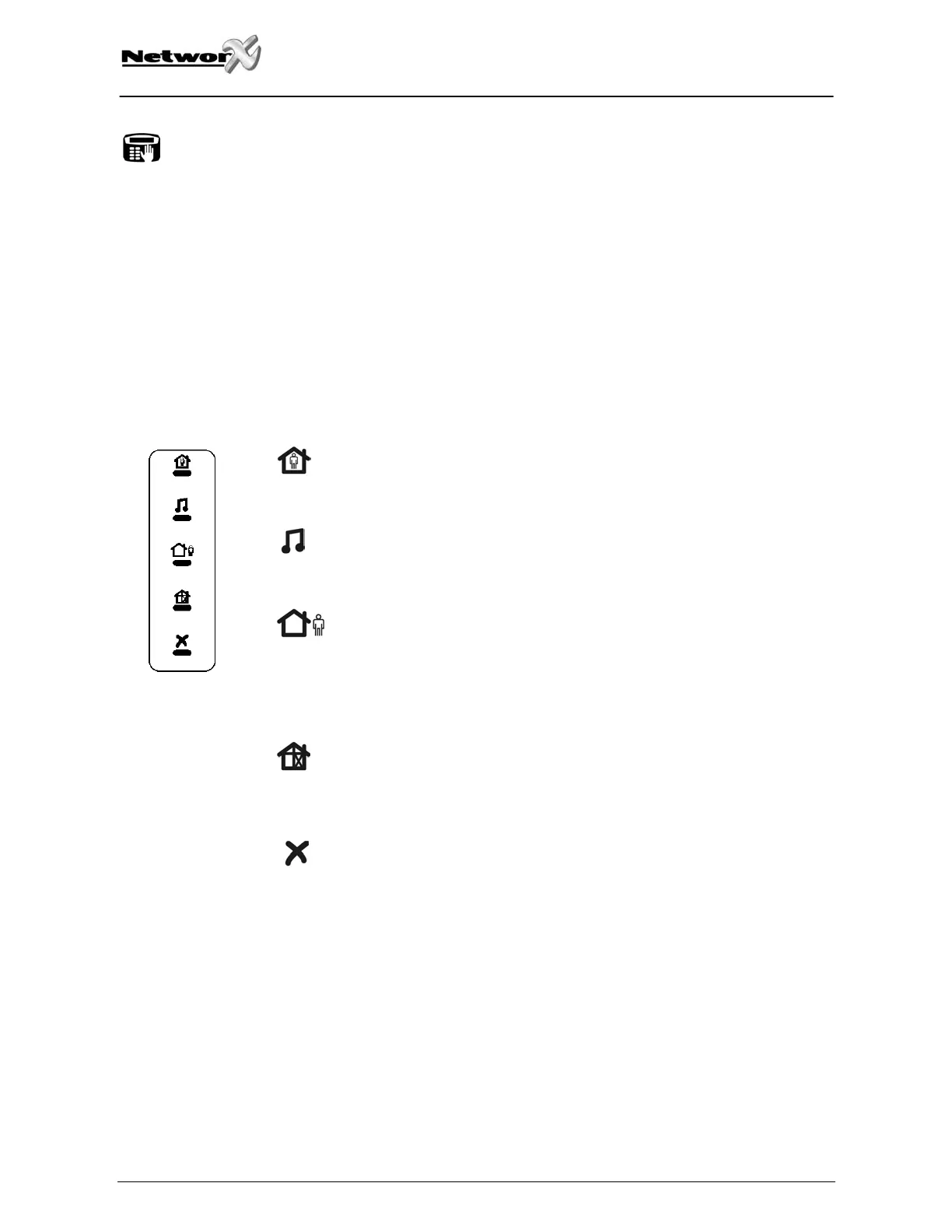

Understanding the LED’s
STAY LED
The stay led is “on” when all interior (motion detector) zones are bypassed.
CHIME LED
The chime led is “on” when the chime feature is “on”; “off” otherwise.
EXIT LED
The exit led is “on” during the exit delay. Please note that the led will flash during the
last 10 seconds of the exit delay as a warning that the time is running out. (The user may want
to disarm the system if the exit led is flashing in order to prevent an alarm. The user may
then re-arm the system and exit before the delay expires.)
BYPASS LED
The bypass led is “on” when any zone in this keypad’s partition is bypassed. The zone(s)
that is bypassed will also be illuminated. If the bypass led is “off”, no zones are bypassed.
CANCEL LED
The cancel led will flash during an abort delay time. If a code is entered followed by the
[CANCEL] key while this led is flashing, all abortable reports will stop the communication
process. Note: The abort feature must be enabled. Entering a code followed by the
[CANCEL] key during or after an alarm report to the central station will cause the cancel
led to come on. It will stay on until the central station has received the cancel report.
Note: The cancel feature must be enabled.
