Name: GE P643
Brand: GE
Rating: 4 (1 reviews)

To Next Page

To Previous Page

CT Selection Alm

CT1 Excluded

CB1 ReTrip 3ph

CB Fail 1 Status

Disabled

Enabled

T1 IA< Start

CT1A ZCD

Trip State

CB Fail 2 Status

Disabled

Enabled

T1 IB< Start

CT1B ZCD

T1 IC< Start

CT1C ZCD

T1 IN< Start

CT1 In ZC D

Reset State

CB1 BkTrip 3 ph

V00695

Note: This diagram does not show all stages . Other stages follow similar principles.

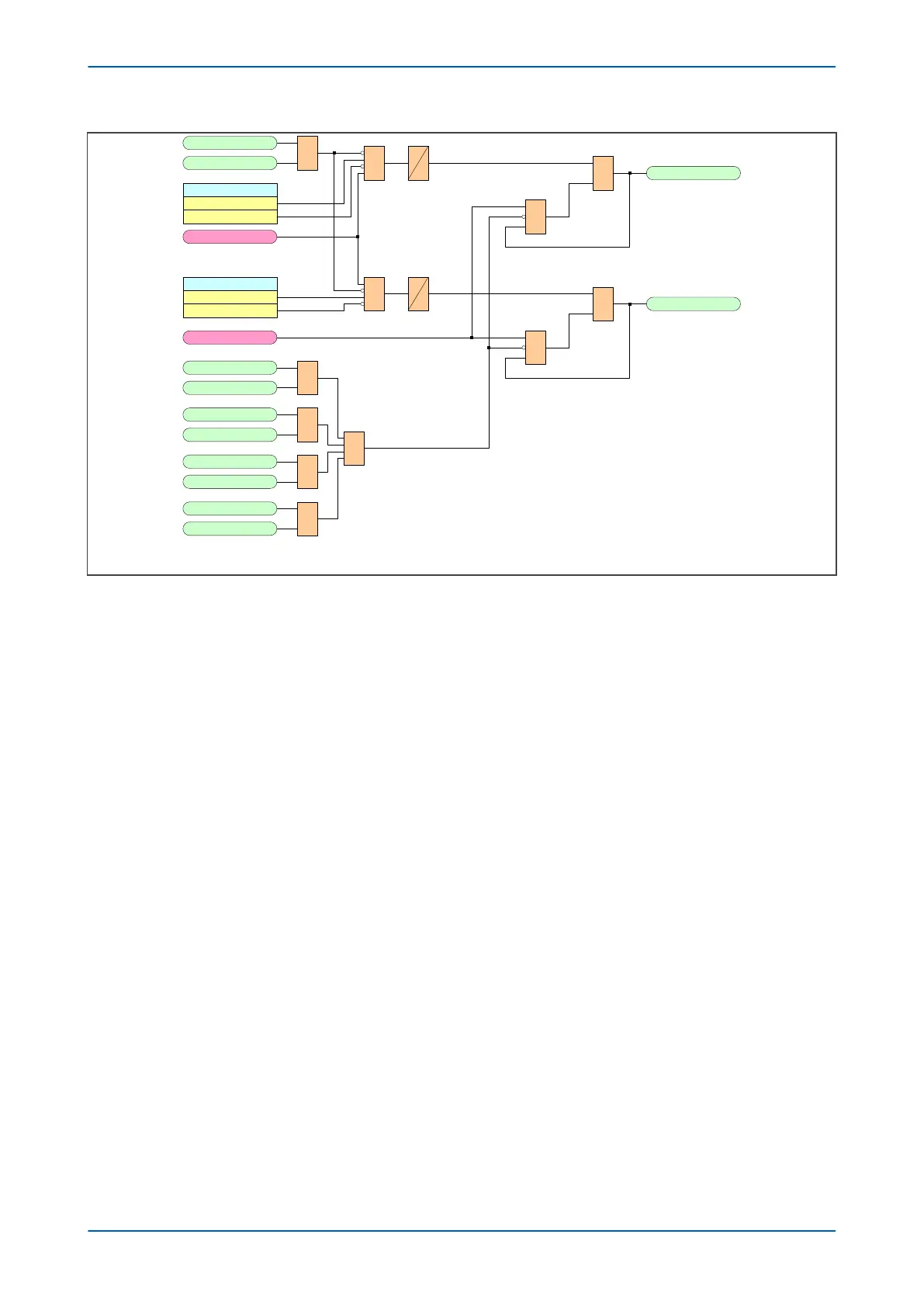

Figure 108: Circuit Breaker Fail Logic - part 2

Chapter 10 - CB Fail Protection P64x

232 P64x-TM-EN-1.3
