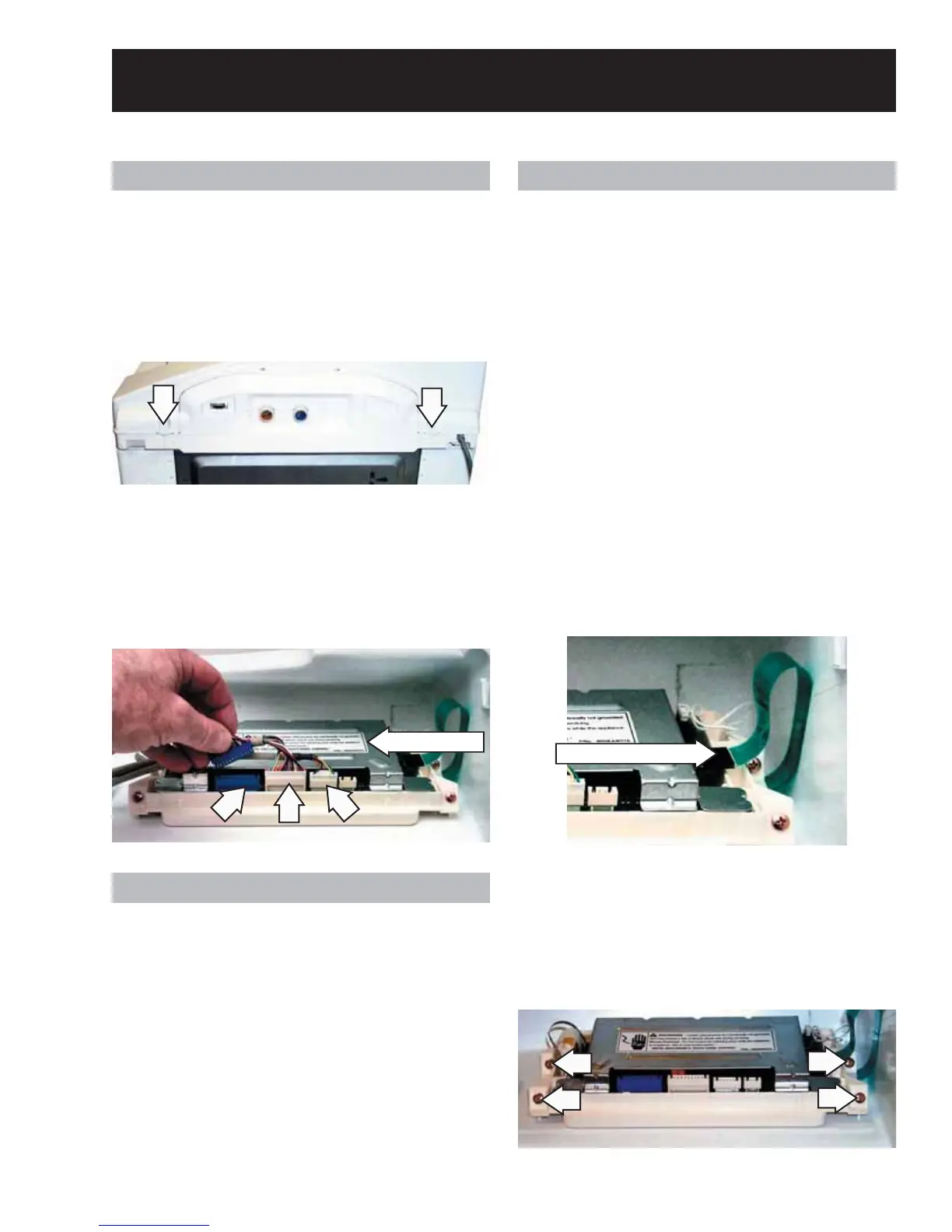

– 23 –
Washer Components
2. Place a towel over the lid of the washer to
prevent scratches to the surface. Gently lift each
corner of the backsplash, then roll it forward so
it rests on top of the washer.
3. Disconnect the wiring to the keypanel. Remove
the backsplash.
Backsplash
The backsplash must be removed to access the
control system components.
To remove the backsplash:
1. Remove the 2 Phillips head screws that hold the
backsplash in place.
Control System
The washer control system consists of three main
components:
• Main control board and touch screen LCD
• Membrane keypanel
• Inverter
Caution: To prevent electrostatic discharge from
damaging any electronic components, use an ESD
wristband or touch a grounded metal surface before
servicing.
3. Remove the 4 Phillips head screws (2 on each
side) that hold the main control board and LCD
touch screen assembly in place. Remove the
assembly.
Main Control Board and Touch Screen LCD
The main control board and touch screen LCD
are attached to the backsplash as one unit. The
touch screen LCD and main control board are only
available as a complete assembly.
Important Note: The main control board and
touch screen of the WPG9360 washer are NOT
interchangeable with the main control board and
touchscreen of the WPG9350 washer.
To remove the main control board and LCD touch
screen assembly:
1. Remove the Backsplash.
2. Disconnect the ribbon at the right of the main
control board.
Note: Do not disconnect any other ribbons from the
main control board.
Disconnect Ribbon
Control Board
To Next Page
