ā 41 ā

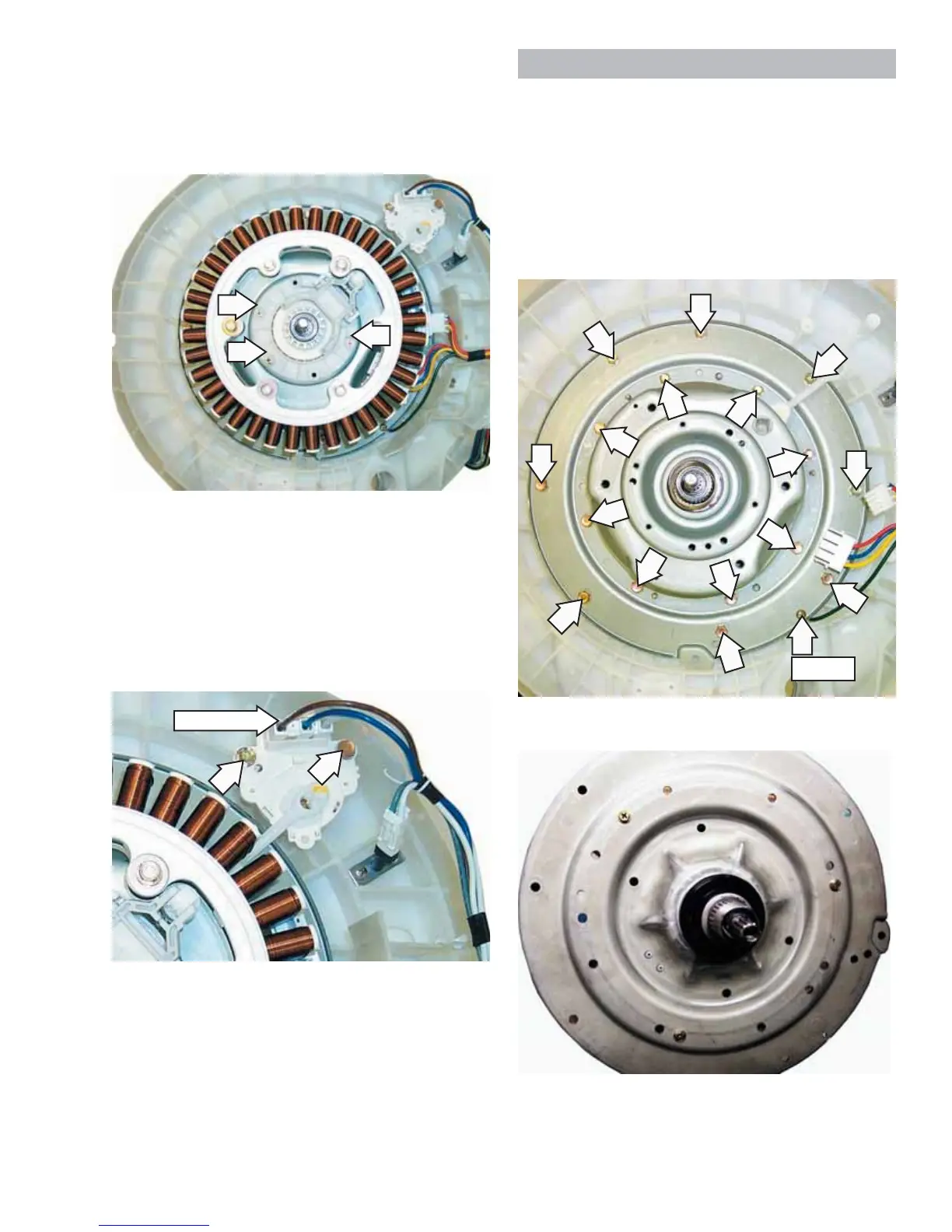

Bearing Housing Assembly
To remove the bearing housing Assembly:
1. Remove the
Motor Assembly and Clutch Shifter
Assembly
.
2. Remove the Phillips-head screw that holds the
ground wire to the bearing housing. Remove
the 10-mm hex-head screws on the bearing
housing assembly.
Note: When reassembling, be sure to put the motor
and Hall sensor wires back in the wiring guard away
from the motor.
3. Remove the clutch coupler assembly.
4. Disconnect the wiring connector from the clutch
motor.
5. Remove the two 10-mm hex-head screws that
hold the clutch motor in place. Remove the
clutch motor.
To remove the clutch shifter assembly:
1. Remove the rotor. (See
Motor Assembly.)
2. Remove the three Phillips-head screws from the
clutch coupler plate.
4. Remove the bearing housing assembly.
Disconnect
Ground
To Next Page
