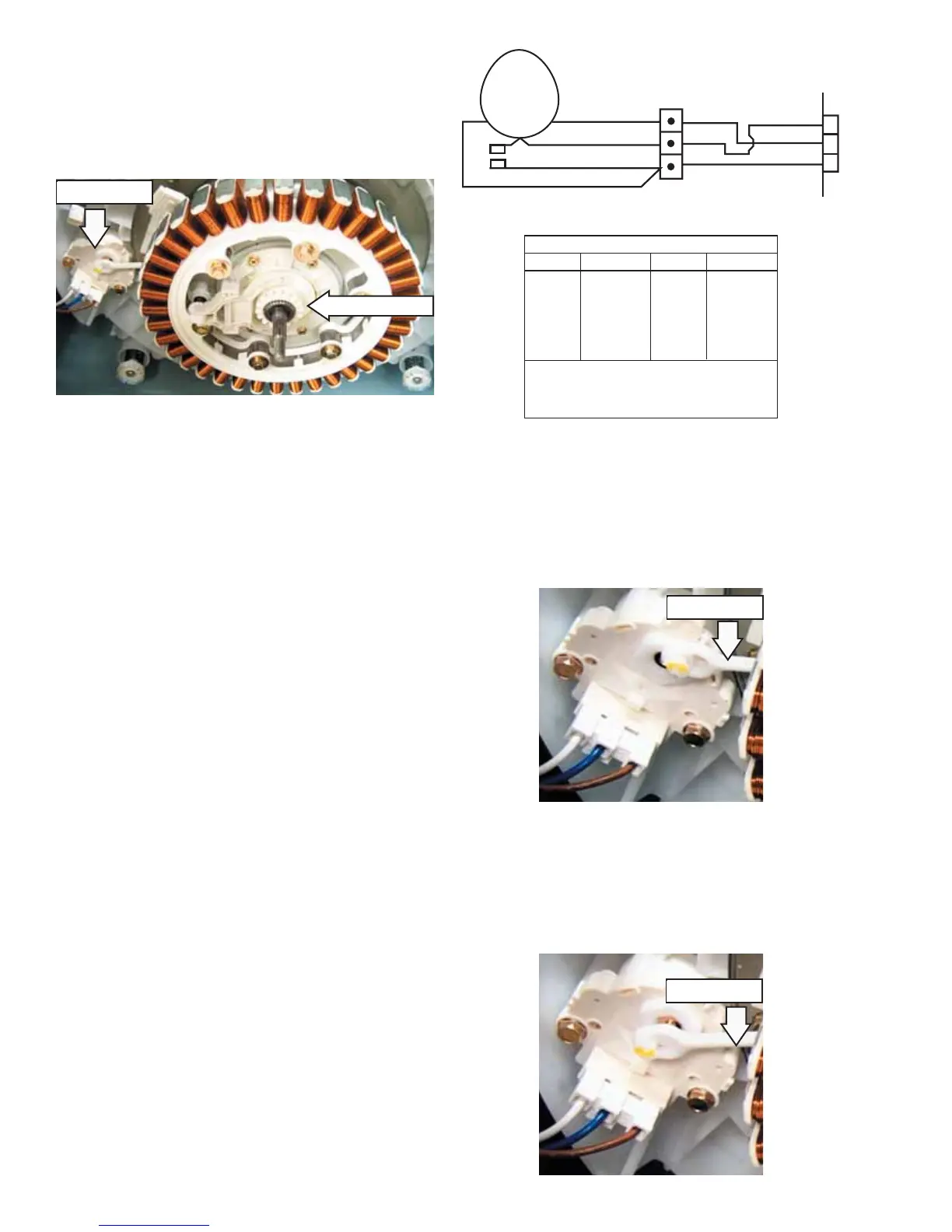

Diagnosing the Clutch Motor
Note: Disconnect power and unplug the clutch
motor connector at the inverter board.
The light blue connector on the inverter board
has the blue, white and brown wires that are
the clutch motor wires.
The inverter supplies 120 VAC to the clutch
motor through the brown and white wires when
the clutch motor changes position.
To check power from the inverter, program any
wash cycle and press START. If the clutch motor
was left in the locked mode there should be 120
VAC present for about 6 seconds on the brown
and white wires. If the clutch motor was left in
the unlocked mode, there should be 120 VAC for
about 6 seconds, then a pause with no voltage,
then 120 VAC again for about 6 seconds.
• The clutch motor has an approximate resistance
value of 2000 Ω. This can be measured
between the white and brown wires on the
inverter board. (See Inverter and Main Board Pin
Connectors.)
• The rotation of the clutch motor causes an
internal switch to open or close. This can be
measured between the brown and blue wires on
the inverter board.
•
•
•
• When the basket and infusor are in the unlocked
position, the clutch moves upward, disengaging
the clutch coupler and rotor teeth, allowing the
infusor to rotate independently of the basket.
COLOR CODE
LETTERS COLOR
COLOR
LETTERS
AX
BX
CX
NX
OX
PX
RX
SX
GX
VX
WX
YX
LT. BLUE
BLACK
BROWN
DK.BLUE
ORANGE
PINK
RED
GRAY
GREEN
PURPLE
WHITE
YELLOW
THE "X' INDICATES ONE SOLID COLOR-
NO TRACER. WIRES WITH TRACER SHOW
BOTH COLORS, EXAMPLE - WR IS WHITE
WITH RED TRACER.
NX
WX
CX
1
2
3
WX
NX
CX
CLUTCH
MOTOR
& CAM
Unlocked Position
When the clutch arm is closest to the main
motor, the clutch is in the locked position and
the clutch switch is open (infi nite resistance)
between the brown and blue wires.
•
When the clutch arm is farthest away from
the main motor, the clutch is in the unlocked
position and the clutch switch is closed (0 Ω)
between the brown and blue wires.
•
Clutch Arm
Unlocked Position
Locked Position
Clutch Arm
Clutch Motor
Clutch Coupler
