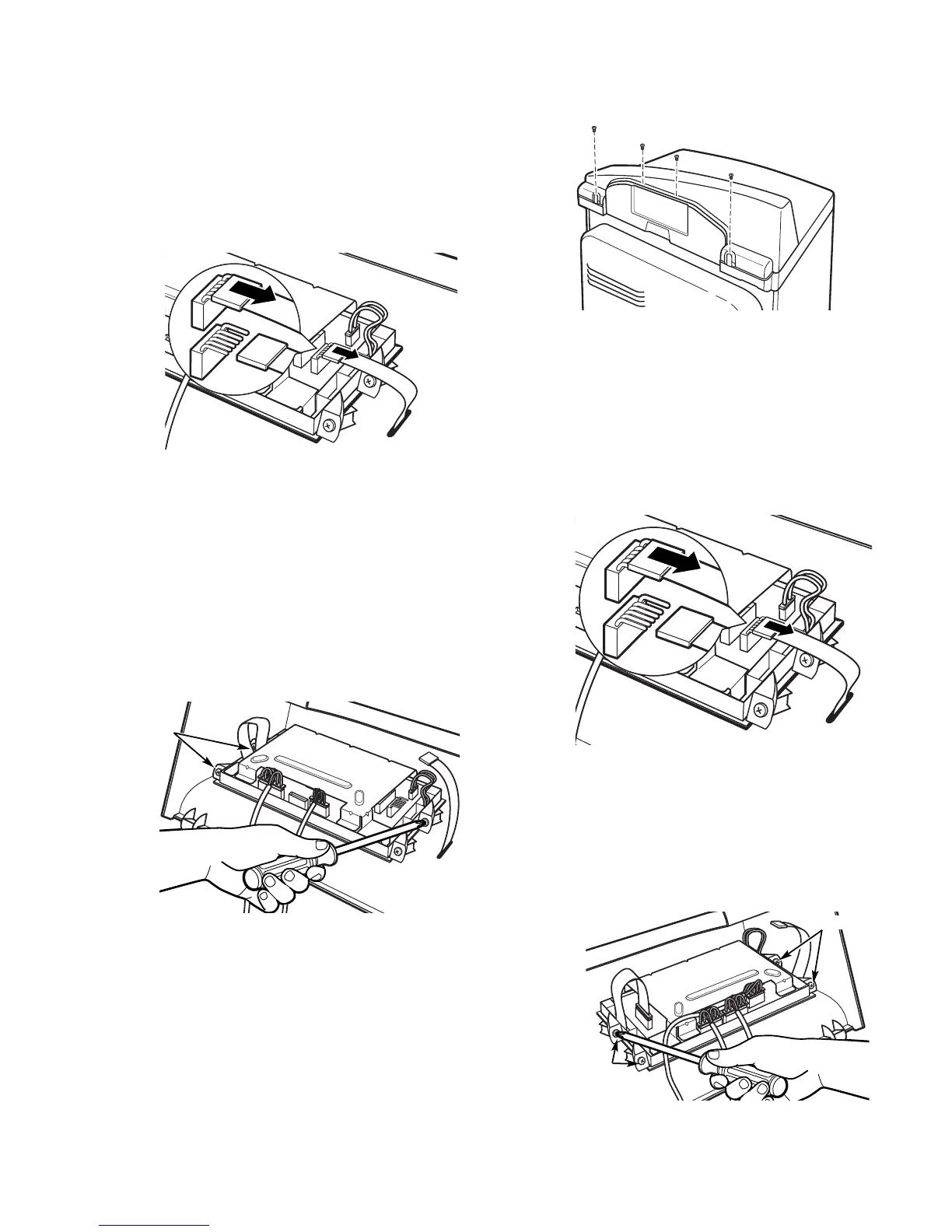

6. Remove the 4 Phillips-head screws holding the
washer control board to the backsplash, then
remove the control board and set it aside.
10. Remove the 4 Phillips-head screws holding the
dryer control board to the backsplash.
11. Remove the dryer control board and set it aside.
7. Place a towel over the top surface of the dryer
to prevent scratches to the surface.
9. Disconnect the ribbon at the right of the dryer
control board by pulling the connector at the
end of the ribbon off the metal pins.
Note: Do not disconnect any other wires from
the dryer control board.
Screws
Rear of Drye r
8. Remove the 4 Phillips-head screws from the
dryer backsplash. Rotate backsplash forward
and lift off.
5. Disconnect the ribbon at the right of the washer
control board by pulling the connector at the
end of the ribbon off the metal pins.
Note: Do not disconnect any other wires from
the washer control board.
Rear of Washer
Screws
Rear of Dryer
(Continued Next Page)
