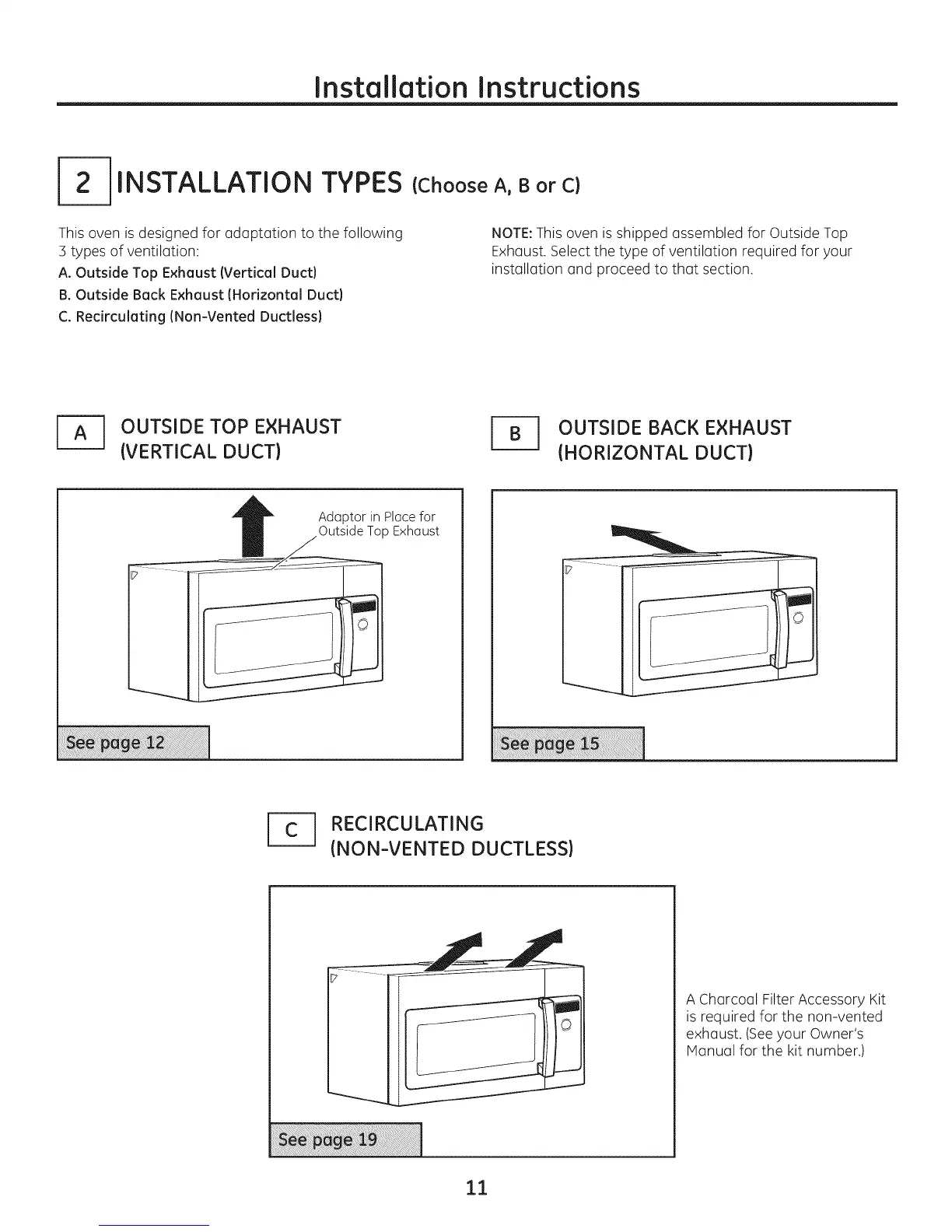

Installation Instructions
INSTALLATION TYPES
This oven is designed for adaptation to the following
3 types of ventilation:
A. Outside Top Exhaust (Vertical Duct)
B. Outside Back Exhaust (Horizontal Duct)
C. Recirculating (Non-Vented Ductless)
(Choose A, B or C)
NOTE:This oven is shipped assembled for Outside Top
Exhaust. Select the type of ventilation required for your
installation and proceed to that section.
J_ OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
r_ UTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
Adaptor in Ploce for
Outside Top Exhaust
1_ RECIRCULATING
(NON-VENTED DUCTLESS)
A Charcoal Filter Accessory Kit
is required for the non-vented
exhaust. (Seeyour Owner's
Manual for the kit number.)
11
To Next Page
