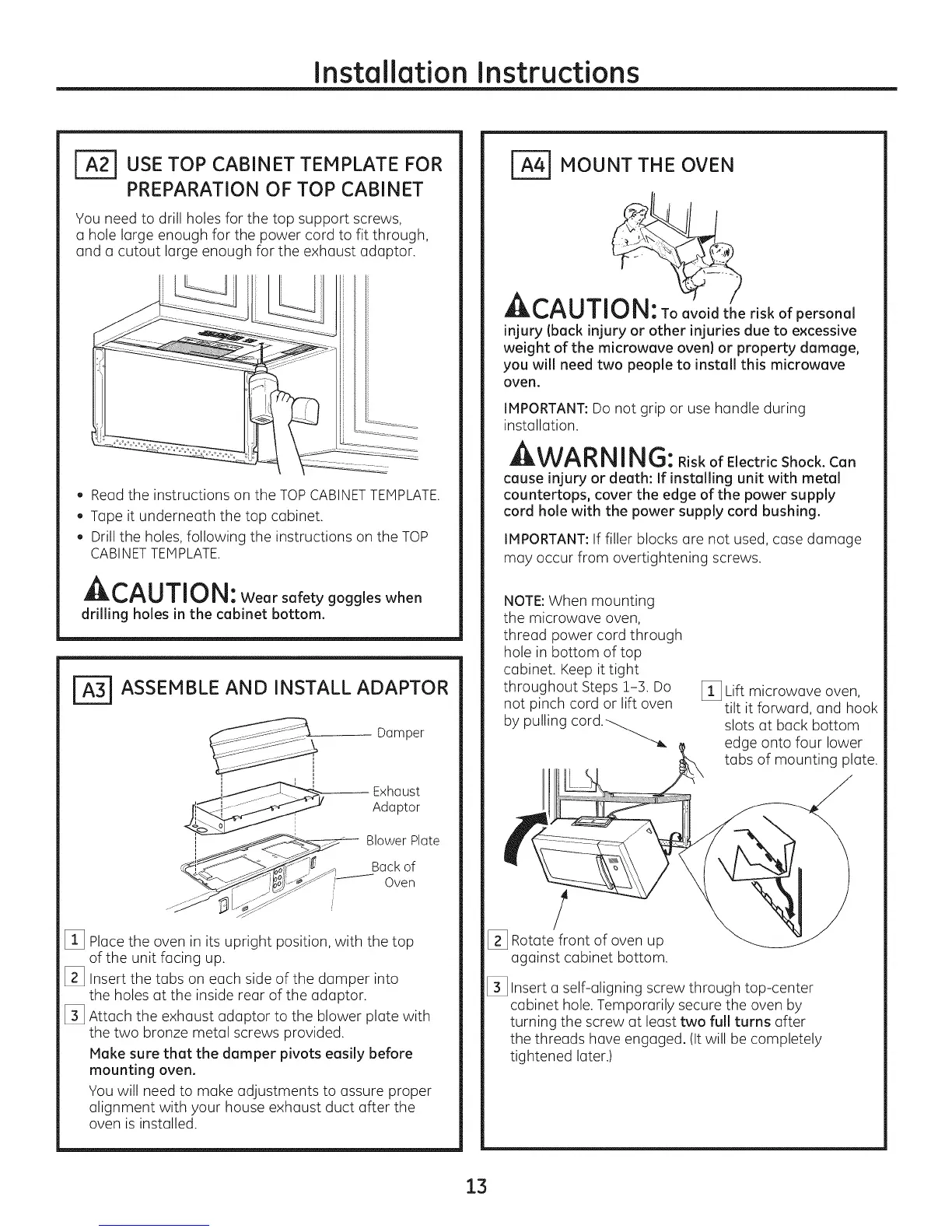

Installation Instructions
_USE TOP CABINET TEMPLATE FOR
PREPARATION OF TOP CABINET
You need to drill holes for the top support screws,
a hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
,, Read the instructions on the TOPCABINETTEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP
CABINETTEMPLATE.
A,--^l l-rill,!
_._u/Iul_: Wearsafetygoggleswhen
drilling holes in the cabinet bottom.
ASSEMBLE AND INSTALL ADAPTOR
Damper
i : i
'_J ...... AdaptorExhaust
j Blower Plate
ack of
...._L Oven
[_ Place the oven in its upright position, with the top
of the unit facing up.
[_ Insert the tabs on each side of the damper into
the holes at the inside rear of the adaptor.
[_ Attach the exhaust adaptor to the blower plate with
the two bronze metal screws provided.
Make sure that the damper pivots easily before
mounting oven.
You will need to make adjustments to assure proper
alignment with your house exhaust duct after the
oven is installed.
_ MOUNT THE OVEN
CAUTI0 N:Toavoidti_eriskofpersonal
injury (back injury or other injuries due to excessive
weight of the microwave ovenl or property damage,
you will need two people to install this microwave
oven.
IMPORTANT:Do not grip or use handle during
installation.
WA RN!NG:RiskofElectricShock.Can
cause injury or death: If installing unit with metal
countertops, cover the edge of the power supply
cord hole with the power supply cord bushing.
IMPORTANT:If filler blocks are not used, case damage
may occur from overtightening screws.
NOTE:When mounting
the microwave oven,
thread power cord through
hole in bottom of top
cabinet. Keep it tight
throughout Steps 1-3. Do
not pinch cord or lift oven
by pulling cord._
[_ Lift microwave oven,
tilt it forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting plate.
J
[_ Rotate front of oven up
against cabinet bottom.
[_ Insert a self-aligning screw through top-center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after
the threads have engaged. (It will be completely
tightened later.)
13
