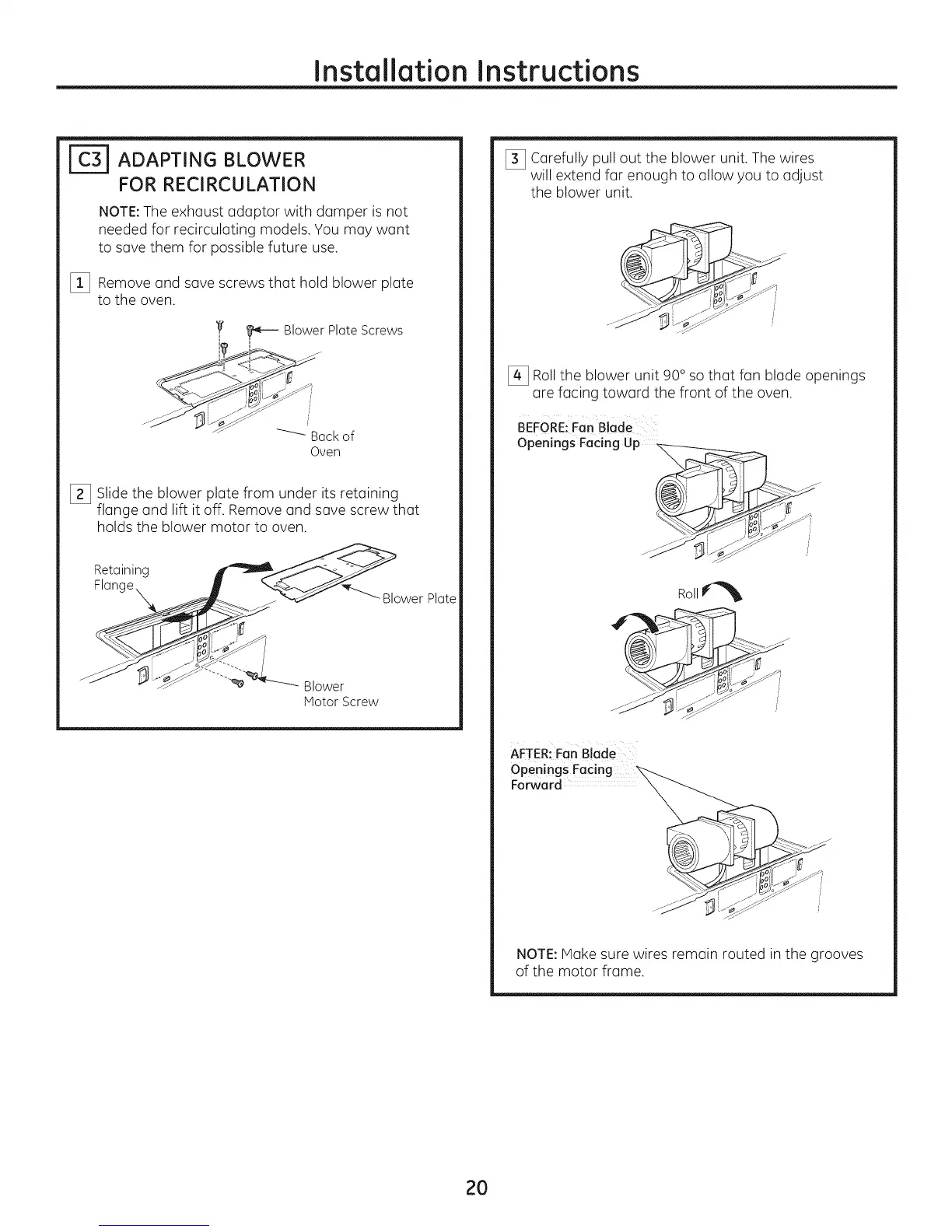

Installation Instructions
ADAPTING BLOWER
FOR RECIRCULATION
NOTE:The exhaust adaptor with damper is not
needed for recirculating models. You may want
to save them for possible future use.
[_ Remove and save screws that hold blower plate
to the oven.
_,V _ Blower PlateScrews
------ Backof
Oven
[_ Slide the blower plate from under its retaining
flange and lift it off. Remove and save screw that
holds the blower motor to oven.
Retaining _'_'_
Flange _----___ Blower Plate
__ Blower
Motor Screw
[_ Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust
the blower unit.
[_ Roll the blower unit 90° so that fan blade openings
are facing toward the front of the oven.
BEFORE:FanBlade
OpeningsFacing Up
Roll€_
/ Jl /_1
/
AFTER: Fan Blade
Openings Facing _
Forward
NOTE:Make sure wires remain routed in the grooves
of the motor frame.
2O
To Next Page
