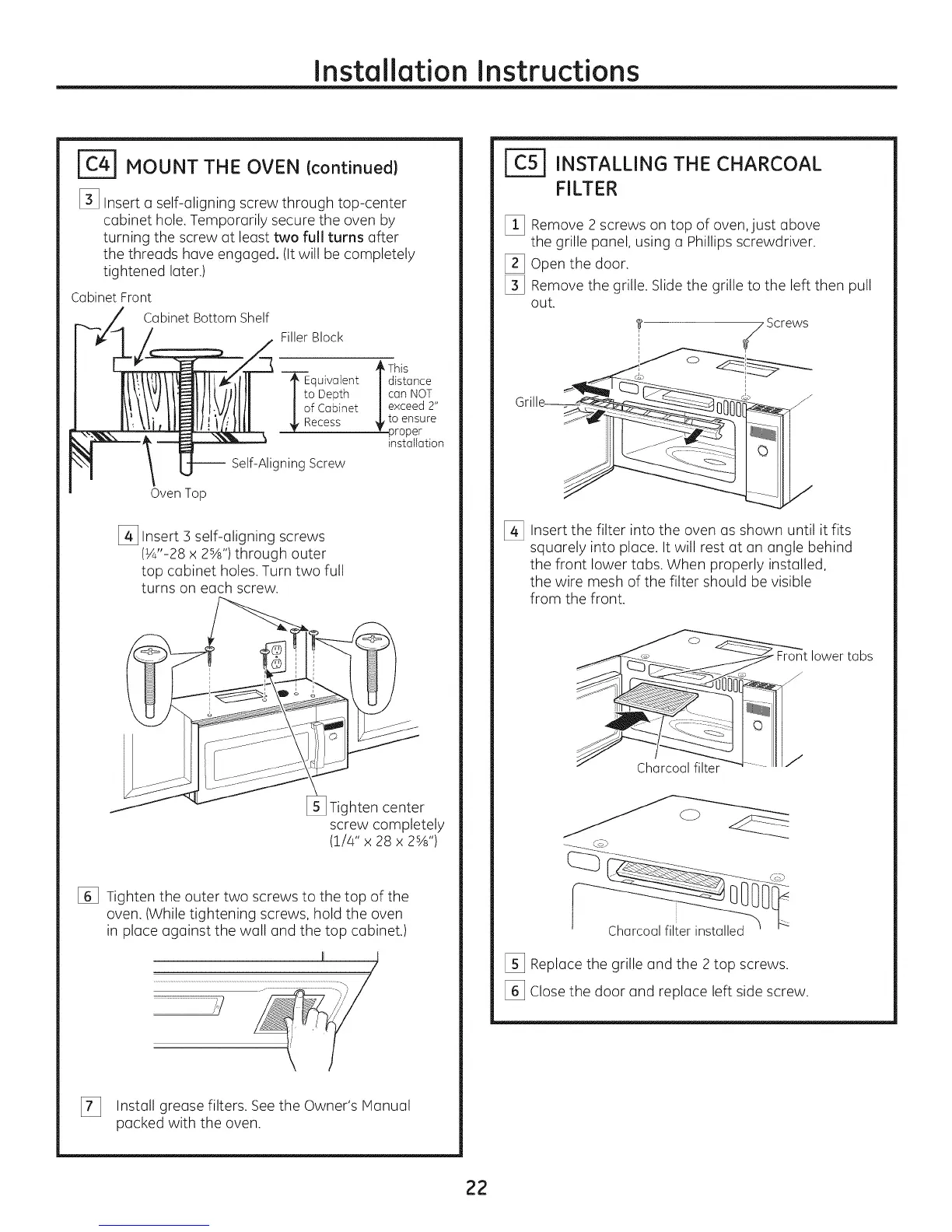

Installation Instructions
MOUNT THE OVEN (continuedl
[_ Insert a self-aligning screw through top-center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after
the threads have engaged. (It will be completely
tightened later.)
Cabinet Front
Cabinet Bottom Shelf
Filler Block
__ _ This
Equivalent | distance
J to Depth | can NOT
of Cabinet | exceed 2"
$ Recess _ to ensure
_proper
installation
-- Self-Aligning Screw
Oven Top
[_ Insert 3 self-aligning screws
(¼"-28 x 2%") through outer
top cabinet holes. Turn two full
turns on each screw.
hten center
screw completely
(1/4" x 28 x 2%")
[] Tighten the outer two screws to the top of the
oven. (Whiletightening screws, hold the oven
in place against the wall and the top cabinet.)
[_ Install grease filters. See the Owner's Manual
packed with the oven.
IC51 INSTALLING THE CHARCOAL
FILTER
[_ Remove 2 screws on top of oven,just above
the grille panel, using a Phillips screwdriver.
[_ Open the door.
[_ Remove the grille. Slide the grille to the left then pull
out.
0
[_ Insert the filter into the oven as shown until it fits
squarely into place. It will rest at an angle behind
the front lower tabs. When properly installed,
the wire mesh of the filter should be visible
from the front.
Front lower tabs
Charcoal filter
I_ Replace the grille and the 2 top screws.
[_ Close the door and replace left side screw.
22
