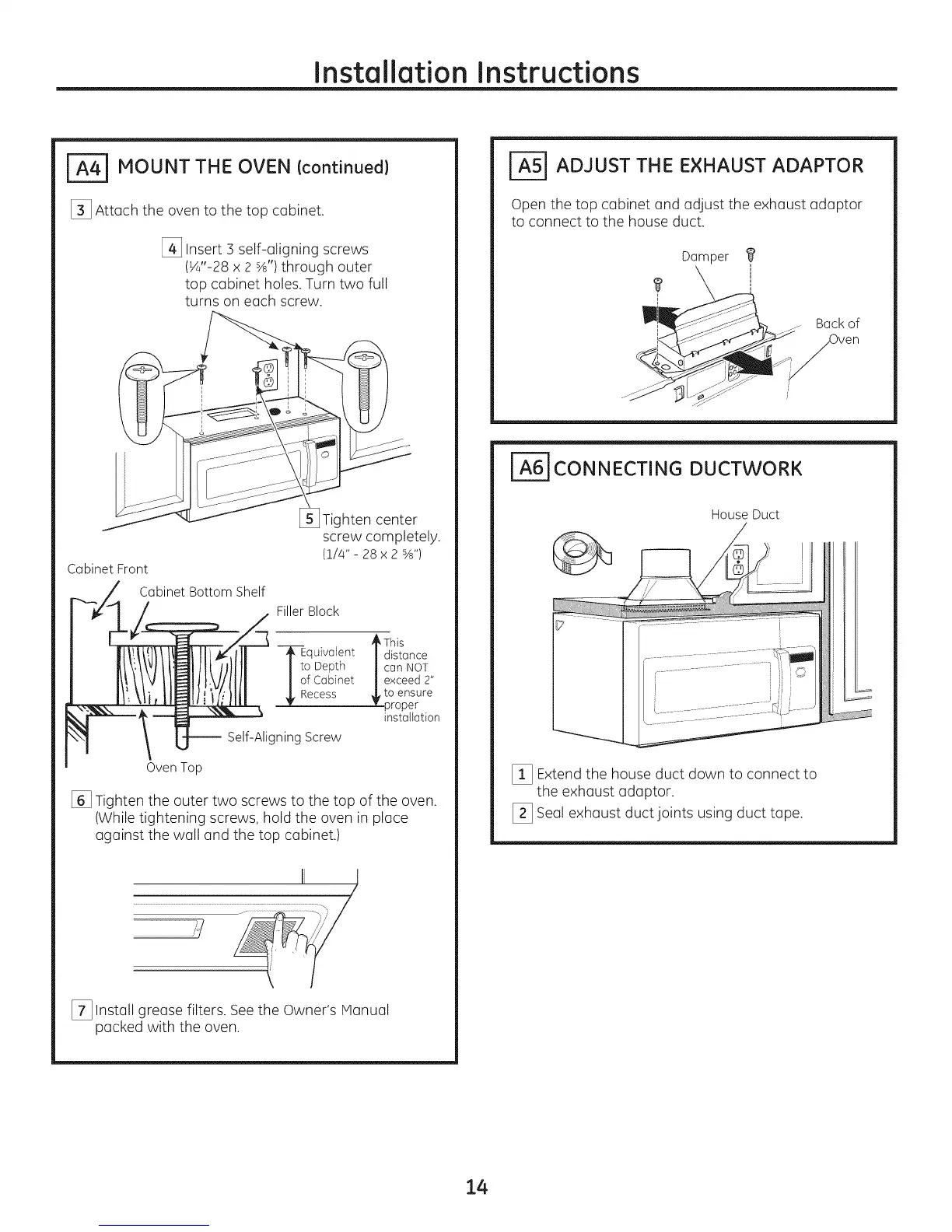

Installation Instructions
_ MOUNT THE OVEN (continued)
[_ Attach the oven to the top cabinet.
[_ Insert 3 self-aligning screws
(¼"-28 x 2 sA')through outer
top cabinet holes. Turn two full
turns on each screw.
Cabinet Front
Cabinet Bottom Shelf
Tighten center
screw completely.
(1/4"- 28x 2 sA")
Filler Block
__E ° _,Th s
quivalent | distance
o Depth |can NOT
f Cabinet | exceed 2"
$ Recess _, to ensure
_proper
installation
-- Self-Aligning Screw
Oven Top
[] Tighten the outer two screws to the top of the oven.
(While tightening screws, hold the oven in place
against the wall and the top cabinet.)
,/
..............................................................................................111 i _],
[_ Install grease filters. Seethe Owner's Manual
packed with the oven.
_5] ADJUST THE EXHAUST ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Damper
i ,_
_q - Backof
J_J_ _ "%J_J .Oven
_] CONNECTING DUCTWORK
House Duct
[_ Extend the house duct down to connect to
the exhaust adaptor.
[_ Seal exhaust duct joints using duct tape.
14
