Appendix C IC755CxS10CDx,
IC755CxS12CDA, and IC755CxS15CDx
Serial Port Details
Adhere to the following guidelines:
• A terminal block is supplied.
• The mating terminal block supports stranded 30 to 14 AWG (0.05 to 2.00 mm
2
) wires.
• At a minimum, the cable must be rated for 75°C (167 °F) or more.
• Secure the serial cable to the mating connector while noting signal orientation and tighten the screw clamps.
• The torque for the attaching screws is 0.3 Nm (2.66 in-lb).
Interface: x1 RS–232, x1 RS-232/485 (default is RS-485)
Connectors: Euro Terminal (Tyco Electronics 1-284539-0)
Mating Connector: (Tyco Electronics 1-284510-0)

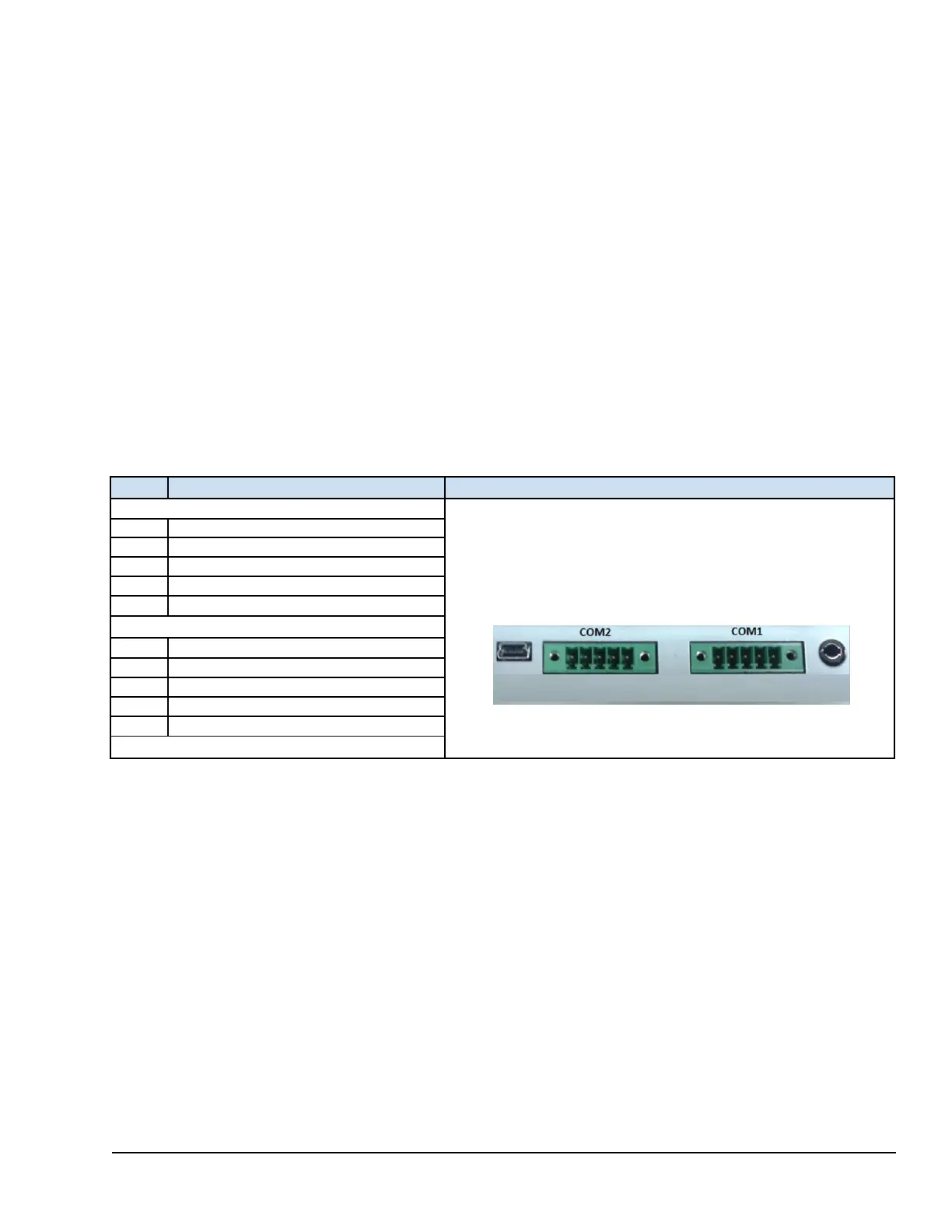

Pin #
Signal Name
Pin-out
COM1
5 4 3 2 1 5 4 3 2 1
1
TXD
2
RXD
3
RTS
4
CTS
5
SGND
COM2 (RS-232/485
†
)
1
TXD/TXD+/DATA+
2
RXD/TXD-/DATA-
3
RTS/RXD+/DATA+
4
CTS/RXD-/DATA-
5
SG
†
RS-485 mode shorts pins 1-3 and 2-4
