GE QuickPanel+ IC755CxS06RDx - Serial Port Details

78 GFK-2847W
For public disclosure
QuickPanel⁺ Operator Interface User
Manual
5.7.3 Serial Port Details
5.7.3.1 IC755CxS06RDx
Adhere to the following guidelines:
• A terminal block is supplied with the unit.
• The mating terminal block supports stranded 30 to 14 AWG (0.05 to 2.00 mm
2
) wires.
• At a minimum, the cable must be rated for 75°C (167 °F) or more.
• Secure the serial cable to the mating connector while noting signal orientation and tighten the screw clamps.
• The torque for the attaching screws is 0.3 Nm (2.66 in-lb).
Connectors: Euro Terminal (Tyco Electronics 284539-5)
Mating Connectors: Tyco Electronics 284510-5
Serial Port COM1 Details
Interface: RS-232
COM1 Pin Details
Pin #
Signal Name
1
TXD
2
RXD
3
RTS
4
CTS
5
SGND
Pin 1
Pin 5

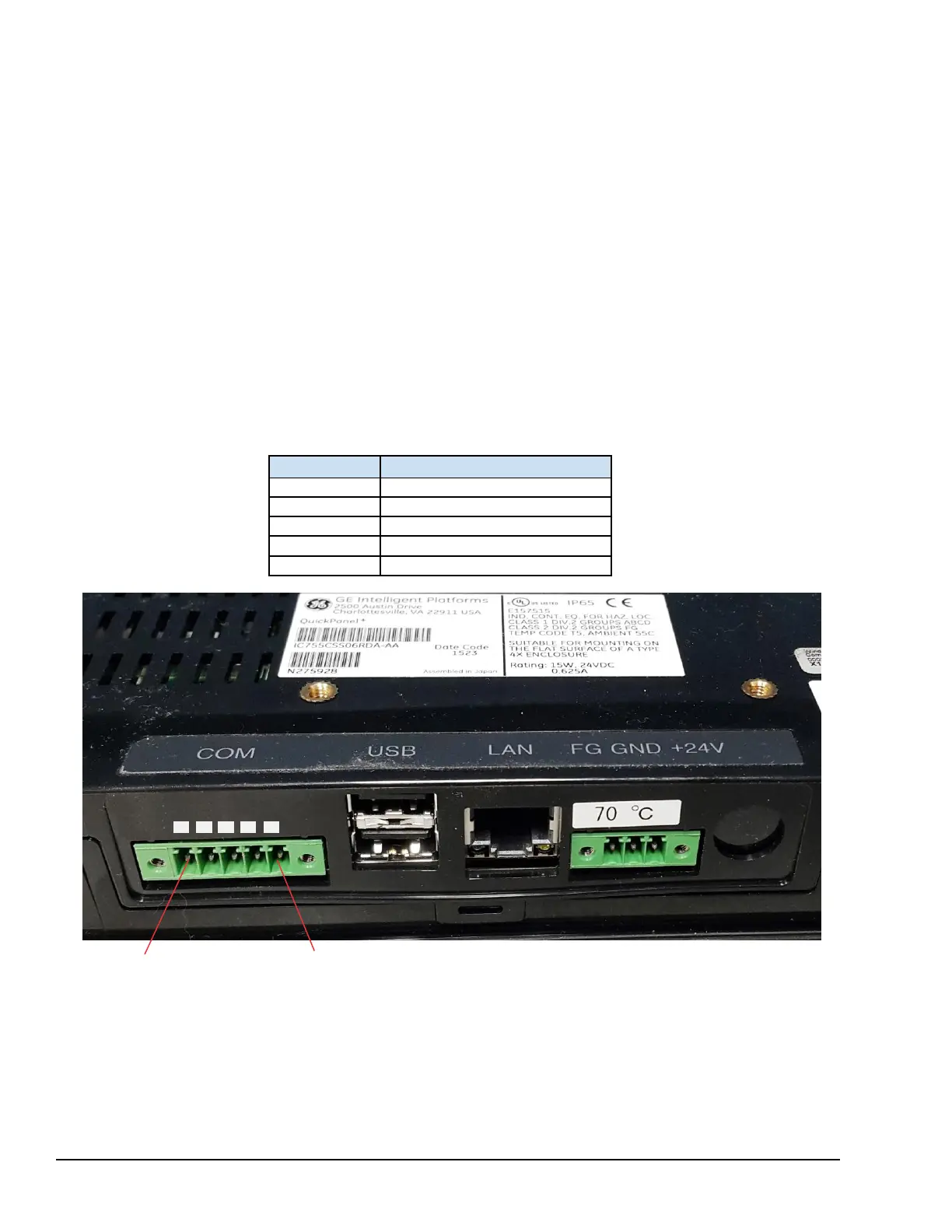

IC755CxS06RDx Serial Port COM1 Pin-out
