GE QuickPanel+ IC755CxS06RDx

Mounting and Installation
For public disclosure
GFK-2847W 63
5.3 Panel Mounting
To mount the QuickPanel
+
in an enclosure, you will need the following equipment:
• One #2 Phillips head screwdriver
• Mounting brackets (supplied)
The mounting holes for IC755CxS06RDx, IC755CxW07CDx, and IC755CxS10CDx are located on the top and bottom sides
of the unit.

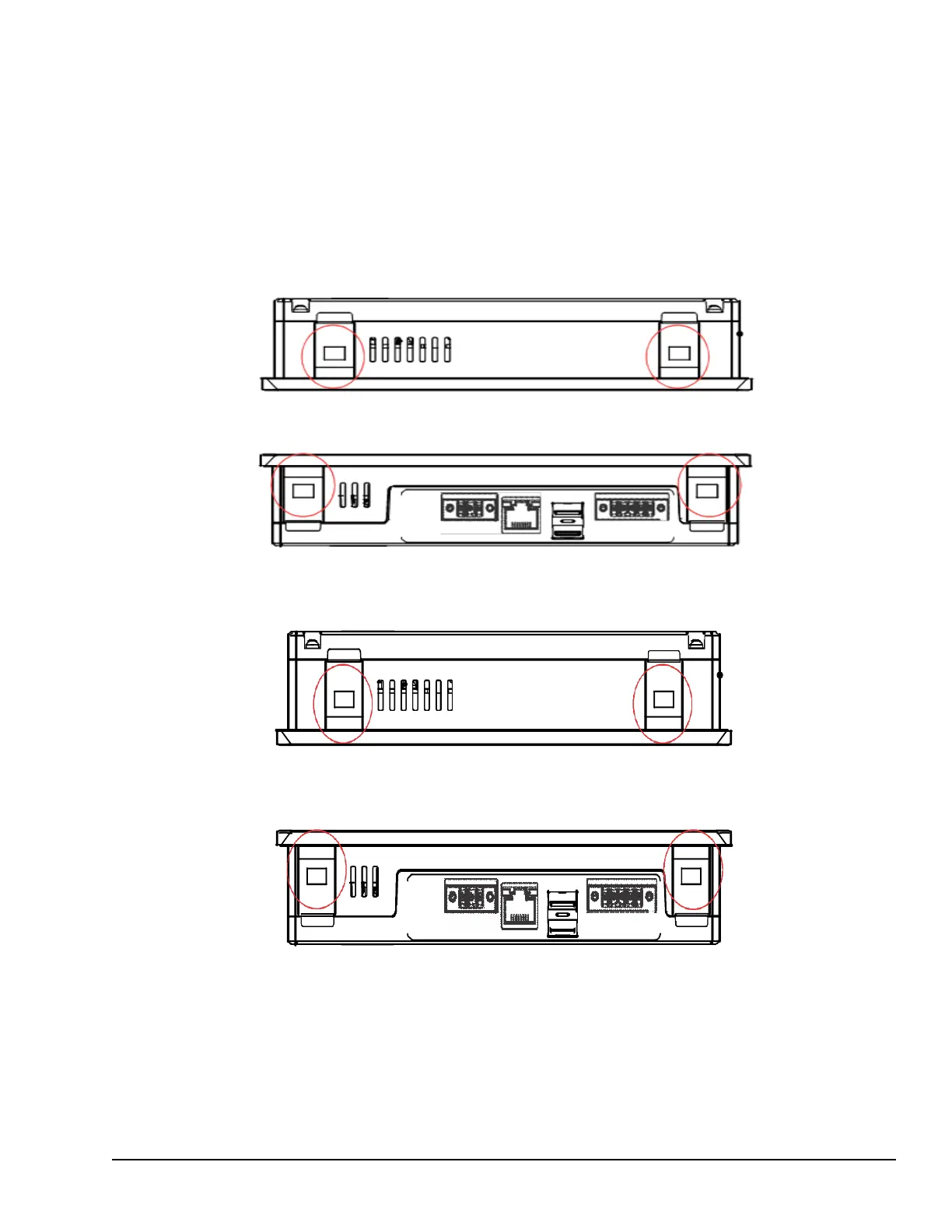

IC755CxS06RDx Mounting Holes
IC755CxW07CDx Mounting Holes
