5.7.4 Universal Serial Bus (USB) Ports
5.7.4.1 USB Host Port Details for IC755CxS06RDx, IC755CxW07CDx, and
IC755CxSxxCDx
The QuickPanel
+
has two full-speed USB 2.0 host ports. A variety of third party USB peripheral devices are also
available. Each connected USB device requires a specific driver. The driver supplied with the QuickPanel
+
is for optional
keyboard or mouse support; other devices require installation of the custom driver software.
Interface: USB 2.0
Number of Ports: Two
Connectors: Type-A connector
Maximum Supply Current: 0.5 A (per port)

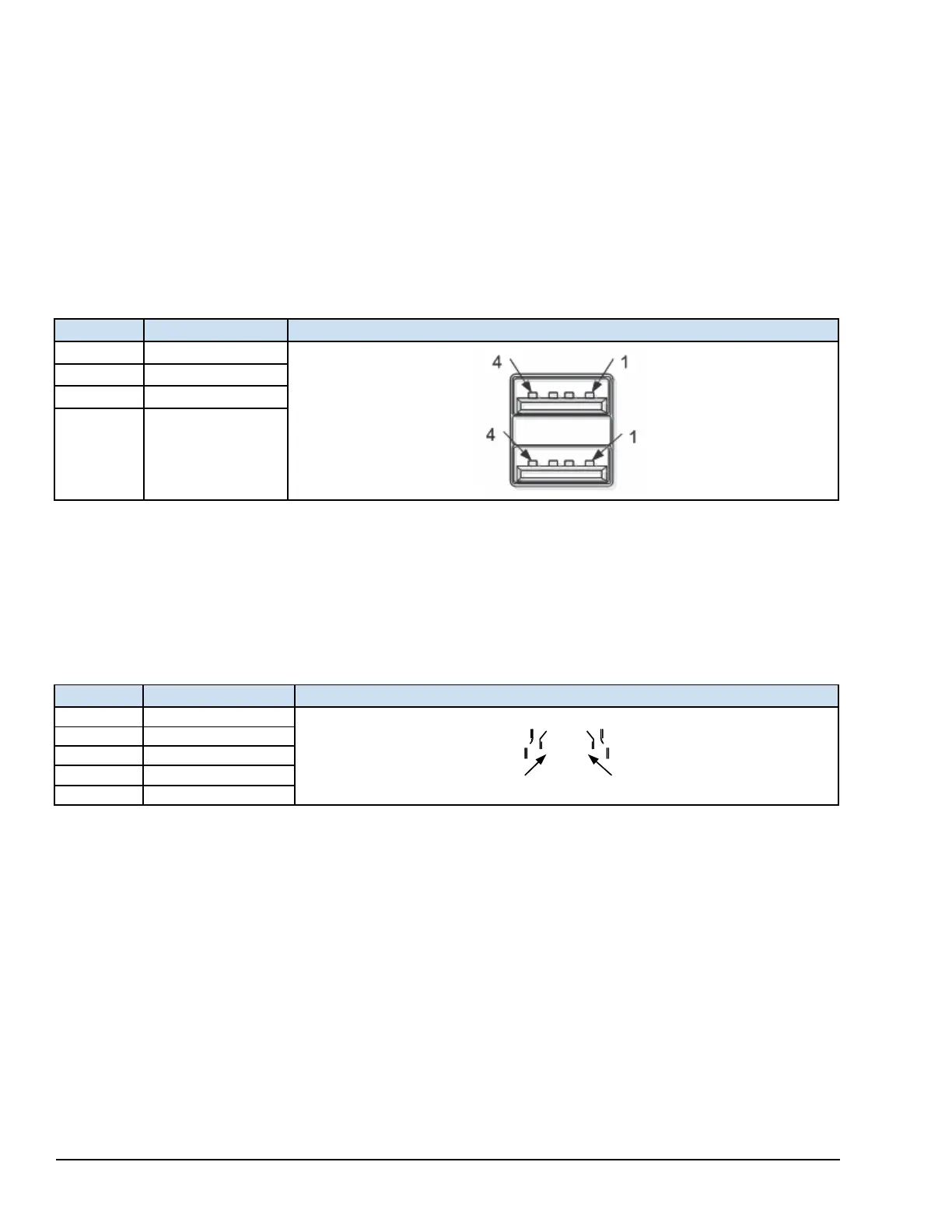

Pin #
Signal Name
Pin-out
1
USB_VCC
2
USB_D-
3
USB_D+
4
USB_GND
5.7.4.2 USB Device Port Details for IC755CxS06RDx, IC755CxW07CDx, and
IC755CxSxxCDx
The USB device port allows the QuickPanel
+
Operator Interface to be used as Slave
device. Interface: USB 2.0
Number of Ports: One
Connectors: Type-B Mini connector
Pin #
Signal Name
Pin-out
1
VCC
5 1
2
D-
3
D+
4
NC
5
GND
