GE QuickPanel+ IC755CxS06RDx - Page 18

18 GFK-2847W
For public disclosure
QuickPanel⁺ Operator Interface User
Manual
144.7 (5.70 in)
128.50 (5.06 in)
75 (2.95 in)
137 (5.39 in) x 2
192 (7.56 in) x 2
36 (1.42 in) x 2
115.2
(4.5 in)
SD Card
LCD Active Area
115.2 x 86.4
(4.5 x 3.4 in)
Serial Interface
Input Power
LAN
USB Host Ports
USB Device
LINE OUT
MIC IN
183.50 (7.22 in)
75 (2.95 in)
Battery Cover
Effective Screw Depth 6 mm (0.24 in)
License Label
Product Nameplate

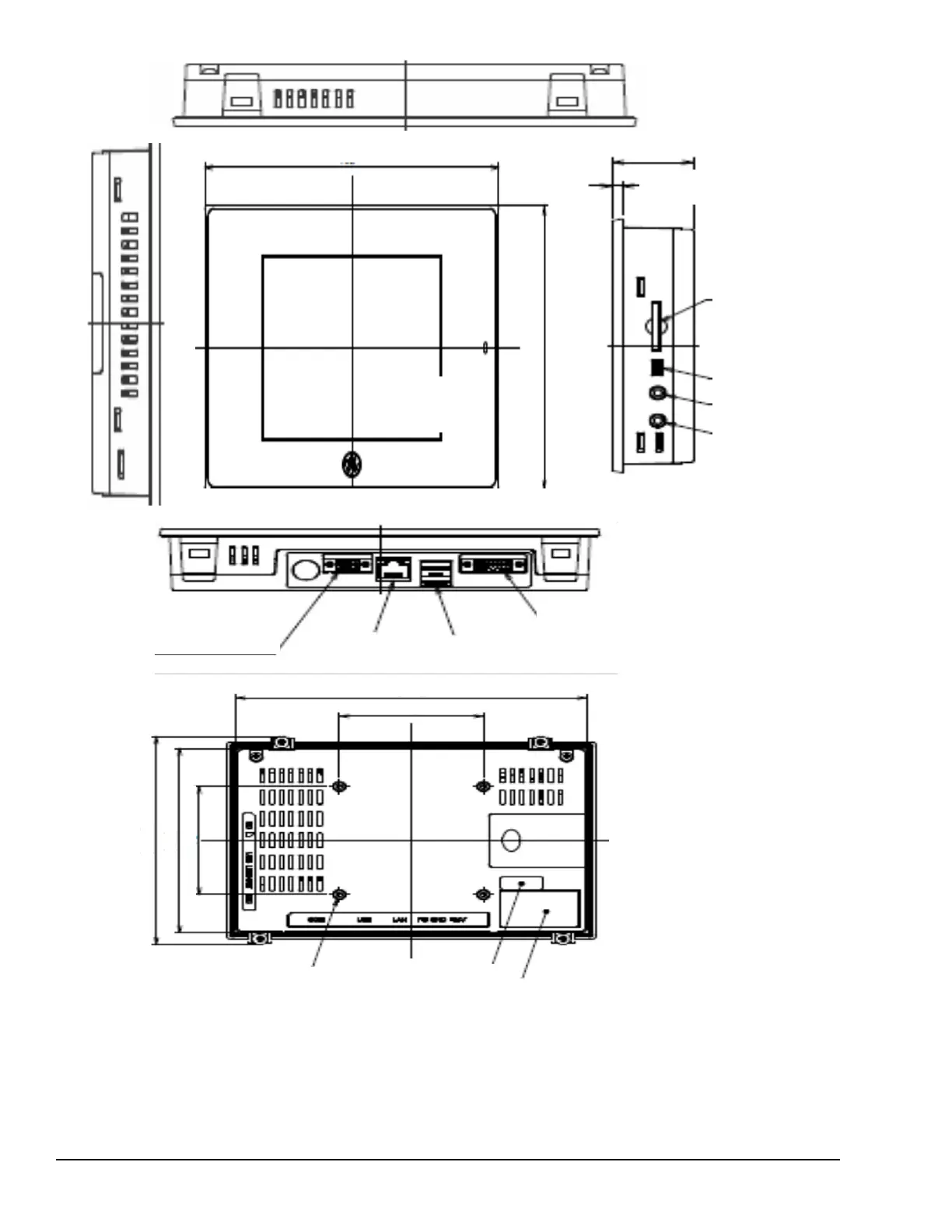

IC755CxS06RDx Hardware Features
