GE QuickPanel+ IC755CxS06RDx

Mounting and Installation
For public disclosure
GFK-2847W 67

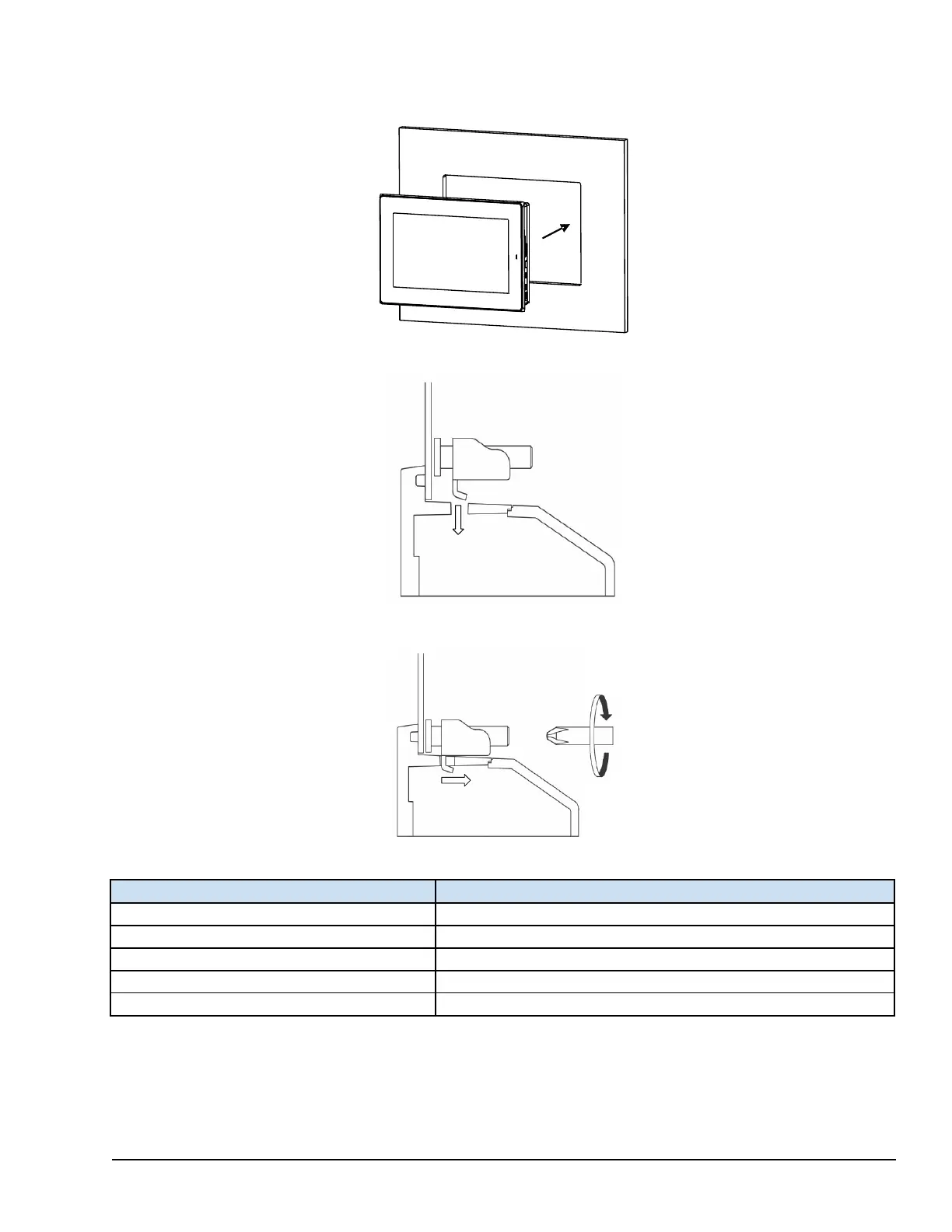

2. Verify that the gasket is present and properly seated in the bezel channel located on the sides of the unit.
3. Insert the QuickPanel
+
into the mounting panel cutout.
4. Insert the hook of the mounting bracket into the mounting hole as displayed in the following figure.
5. Tighten the screws on the mounting bracket in a clock-wise direction.
Torque Range for Mounting Clamp Screws
Display Unit
Torque Range
IC755CxS06RDx
0.3 Nm (2.66 in-lb)
IC755CxW07CDx
0.3 Nm (2.66 in-lb)
IC755CxS10CDx
0.7 Nm (6 in-lb)
IC755CxS12CDx
1.0 to 1.2 Nm (8.9 to 10.6 in-lb)
IC755CxS15CDx
1.0 to 1.2 Nm (8.9 to 10.6 in-lb)
