Mounting and Installation

For public disclosure

GFK-2847W 71

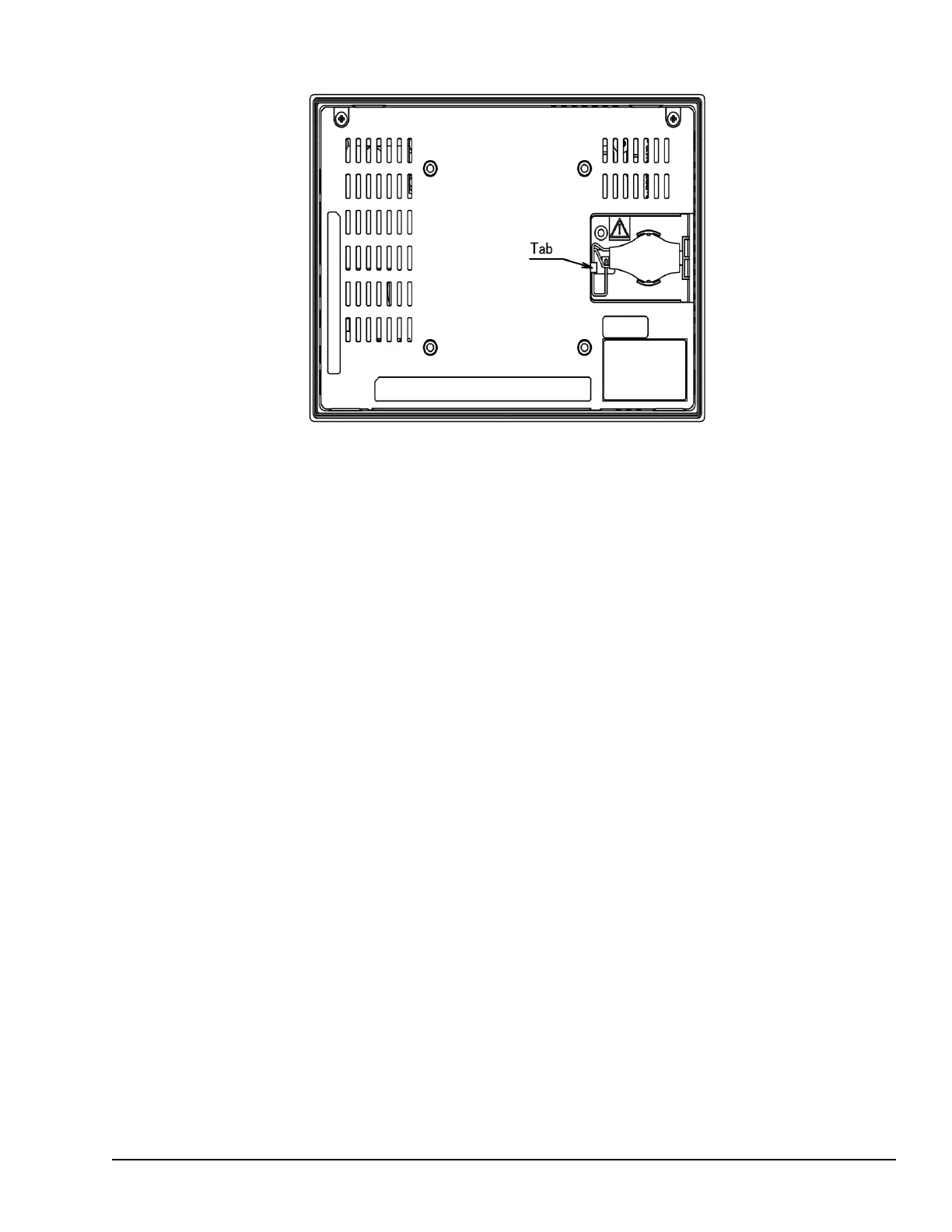

4. Wrap the harness connector around to match the following figure. Do not let the harness connector go above the tab.

Harness Connector

Orientation

5. Slide the battery cover into place, taking care not to pinch the harness connector.
