QuickPanel⁺ Operator Interface User
Manual
Serial Port COM1 Details
Interface: RS-232C
COM1 Pin Details
Pin #
Signal Name
1 TXD
2 RXD
3 RTS
4 CTS
5 SGND
5.7.3.3 IC755CxSxxCDx
Note For an IC755CxS12CDA serial port, refer to Appendix C IC755CxS12CDA Serial Port Details.
Adhere to the following guidelines:
• Terminal blocks are supplied.
• The mating terminal blocks support stranded 30 to 14 AWG (0.05 to 2.00 mm
2
) wires.
• At a minimum, the cable must be rated for 75°C (167 °F) or more.
• Secure the serial cable to the mating connector while noting signal orientation and tighten the screw clamps.
• The torque for the attaching screws is 0.3 Nm (2.66 in-lb).
Connectors: Euro Terminal (Tyco Electronics 284539-5)
Mating Connectors: Tyco Electronics 284510-5

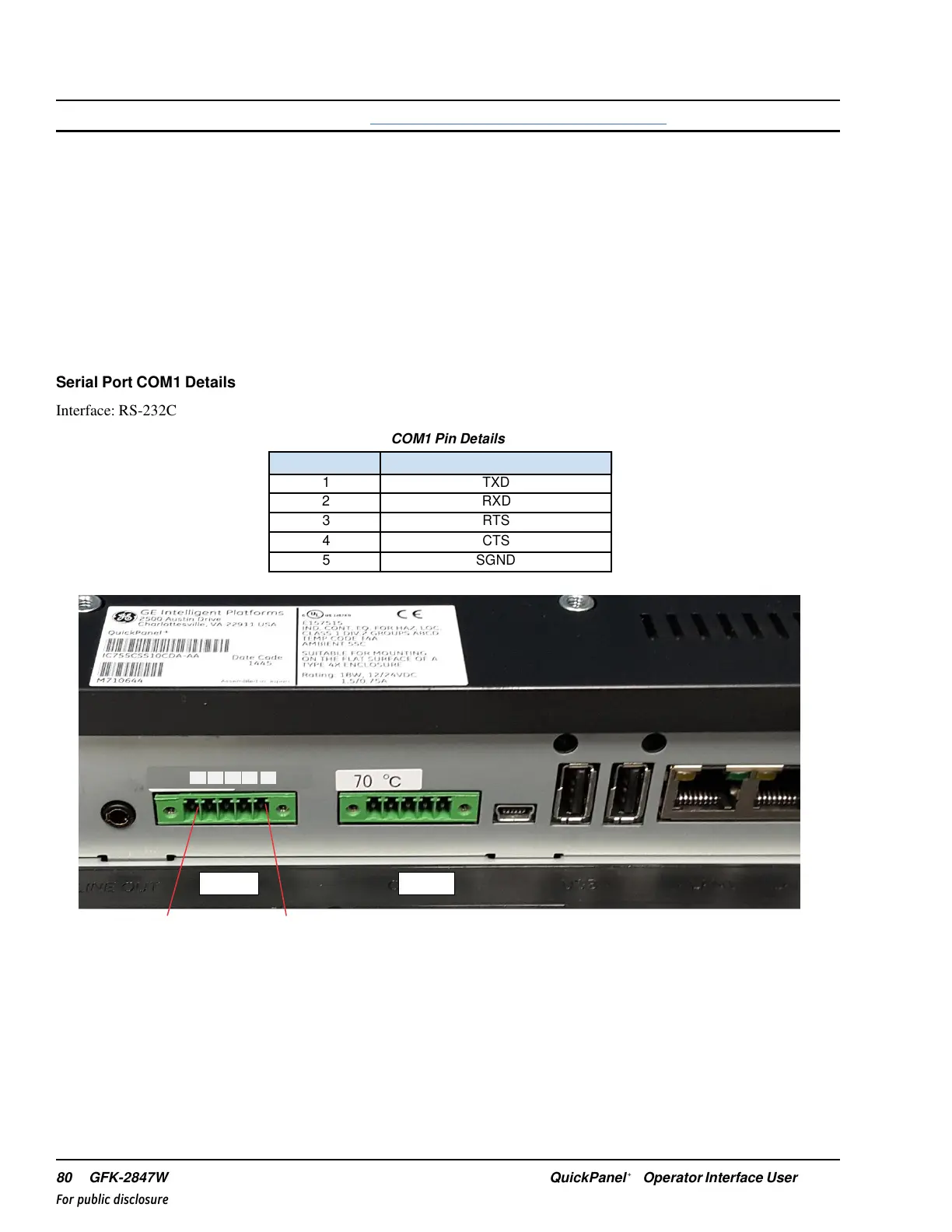

COM1 COM2
Pin 1 Pin 5
IC755CxSxxCDx Serial Port COM1 Pin-out
