GE QuickPanel+ IC755CxS06RDx - Page 82

82 GFK-2847W
For public disclosure
QuickPanel⁺ Operator Interface User
Manual
DIP SW
Bit
ON/OFF
SW4
1
ON
2
ON
3
OFF
4
OFF
5
ON
6
ON
7
OFF
8
OFF
SW5
1
OFF
2
OFF
3
OFF
4
OFF

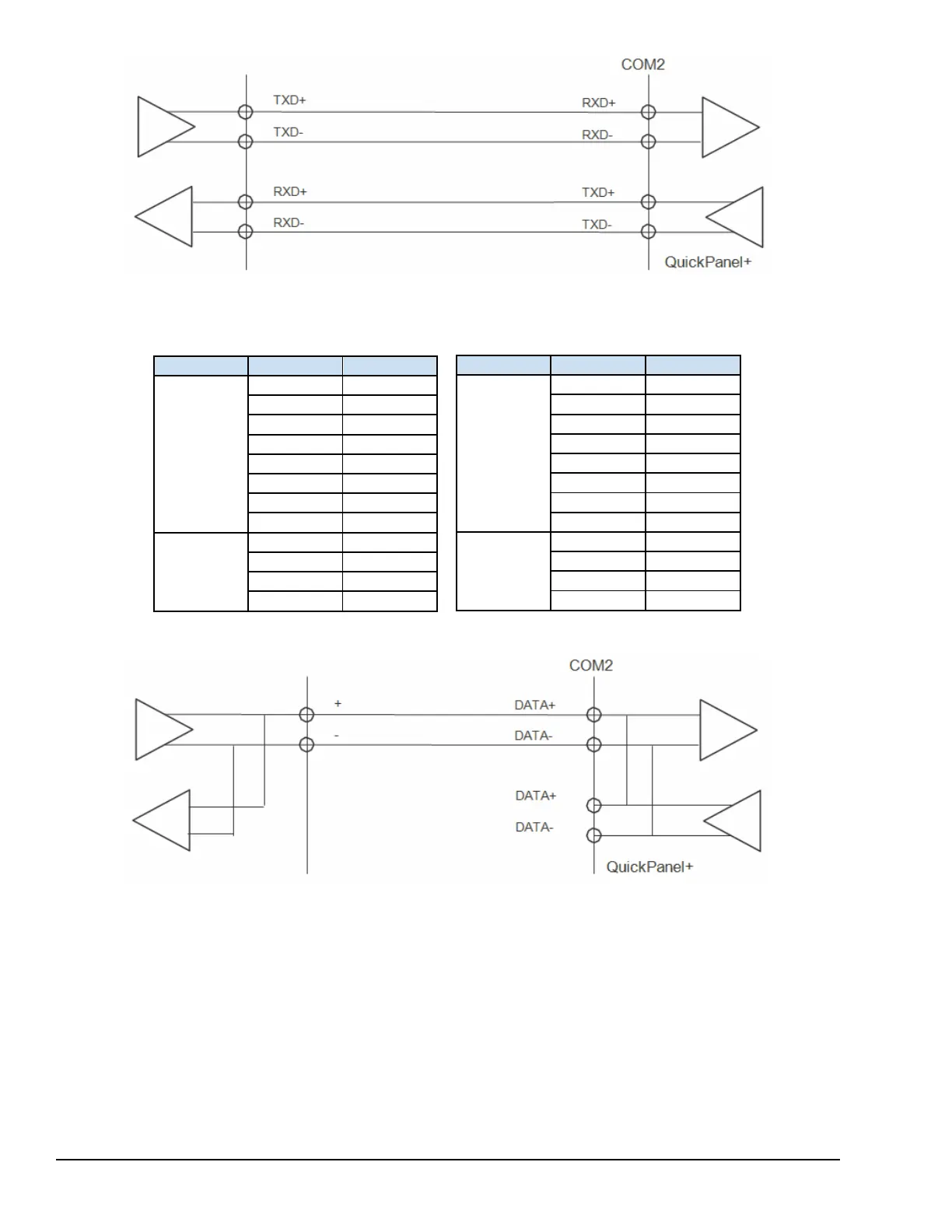

Example of Full-duplex (RS–422 Mode) Connection
COM2 DIP Switch Setting for RS–422
DIP SW
Bit
ON/OFF
SW2
1
OFF
2
OFF
3
OFF
4
OFF
5
ON
6
ON
7
OFF
8
ON
SW3
1
OFF
2
ON
3
OFF
4
OFF
Example of Half-duplex (RS–485 Mode) Connection
