Software
For public disclosure
GFK-2847W 47

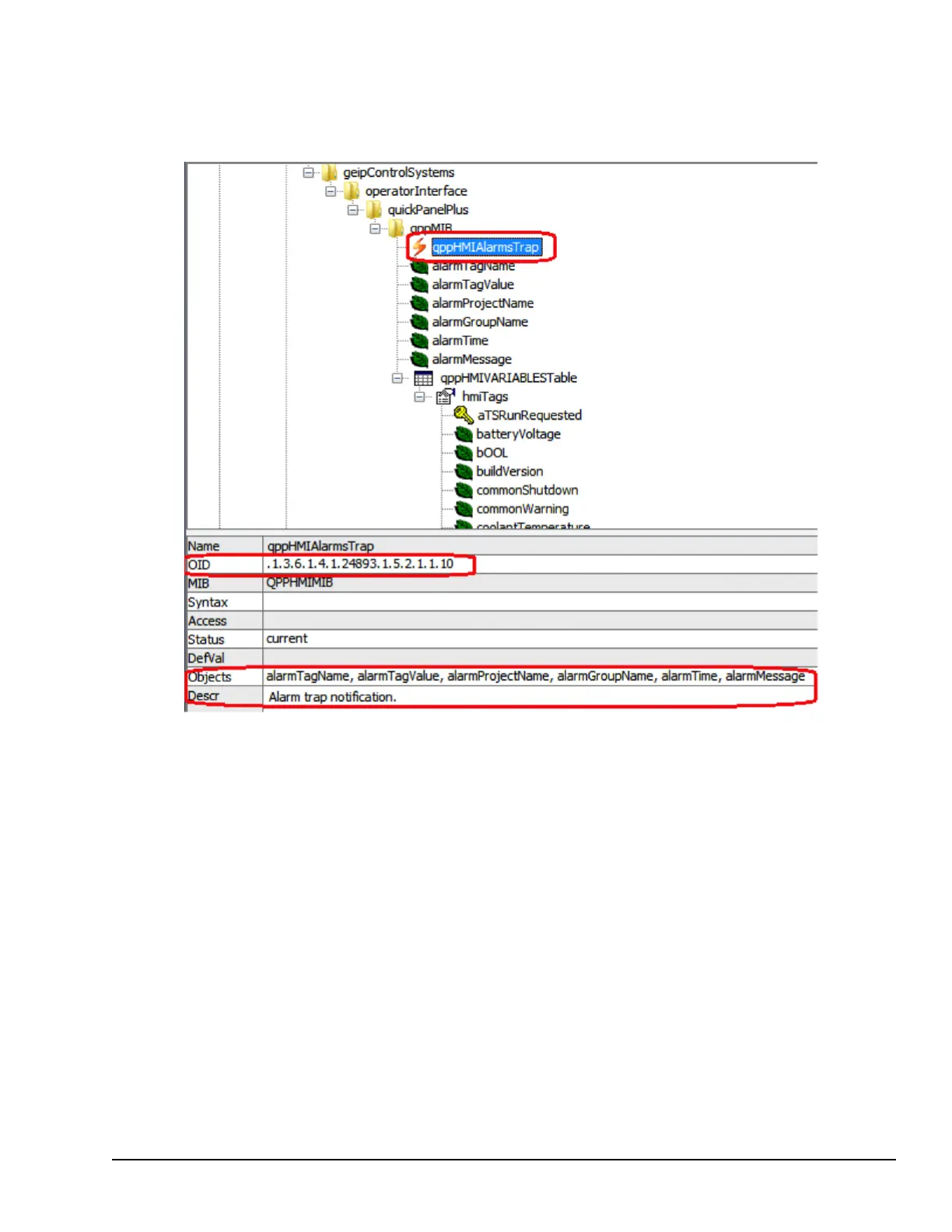

The following figure displays the HMI Alarms notification (TRAP information) with alarm objects as part of the Alarm
Record. The SNMP Manager is notified with the TRAP information when alarms are generated on the HMI running on
a QuickPanel
+
device.
OID for Alarm Trap: .1.3.6.1.4.1.24893.1.5.2.1.1.10
