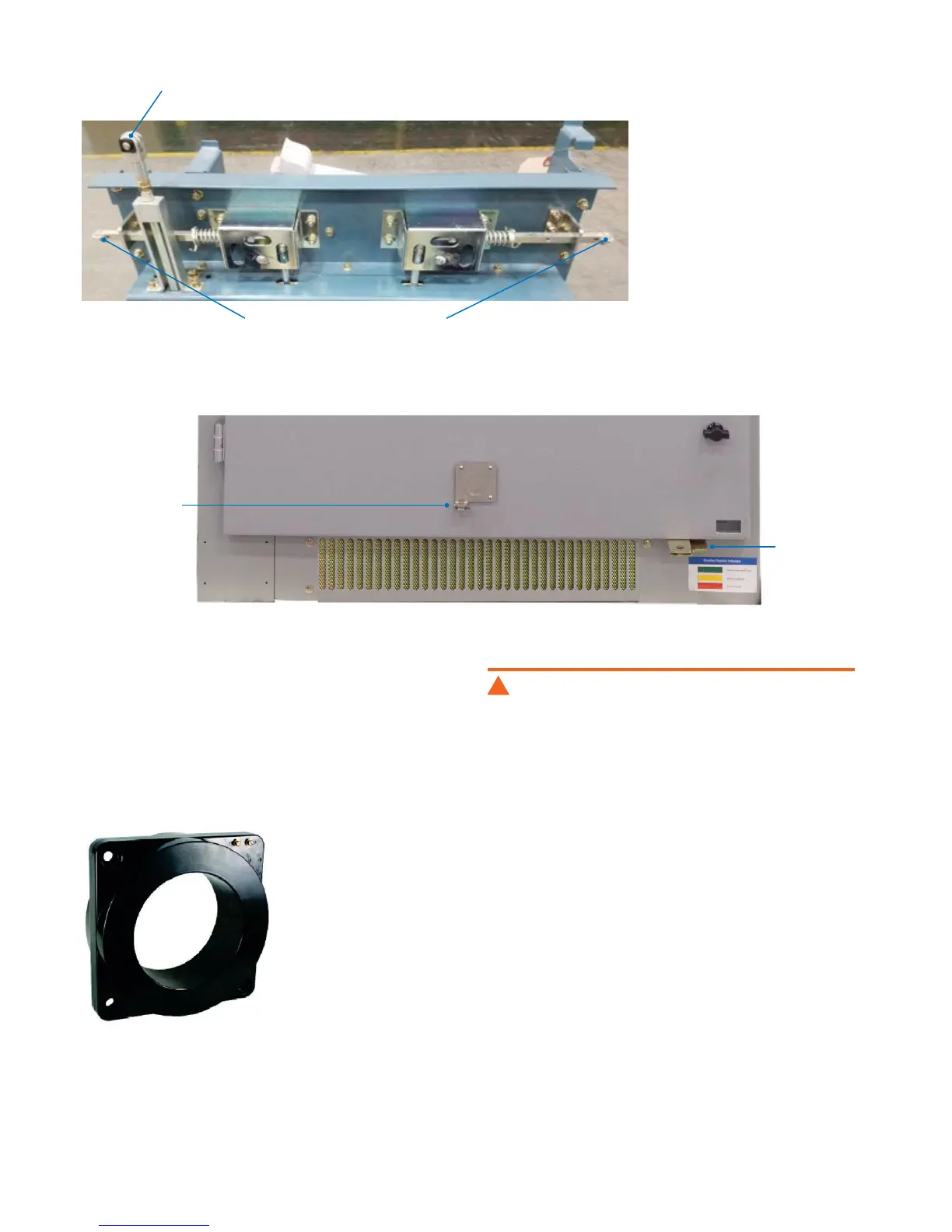

GE SecoGear - Current Transformers; Figure 3-8: Open-Close-Open Safety Interlock Plungers; Figure 3-9: Padlock for Door and Breaker Rack In;Out; Figure 3-10: Current Transformers

SecoGear – Installation, Operation and Maintenance Manual 19 of 56
Figure 3-9: Padlock for Door and Breaker Rack in/out
Figure 3-8: Open-Close-Open Safety Interlock Plungers
Window-type current transformers are mounted over the primary
bushings in the rear of the circuit breaker compartment and
are isolated from the circuit breaker by the shutters. They are
front-accessible by removing the personnel barrier and manually
opening the shutters.
Current Transformers
Figure 3-10: Current Transformers
Hazard of electric shock or burn. Turn off power
to this equipment before working inside.
DANGER
!
Racking Port
Padlock
Door Padlock
Open – Close – Open Plungers
MOC Switch Plunger
