SecoGear – Installation, Operation and Maintenance Manual 22 of 56

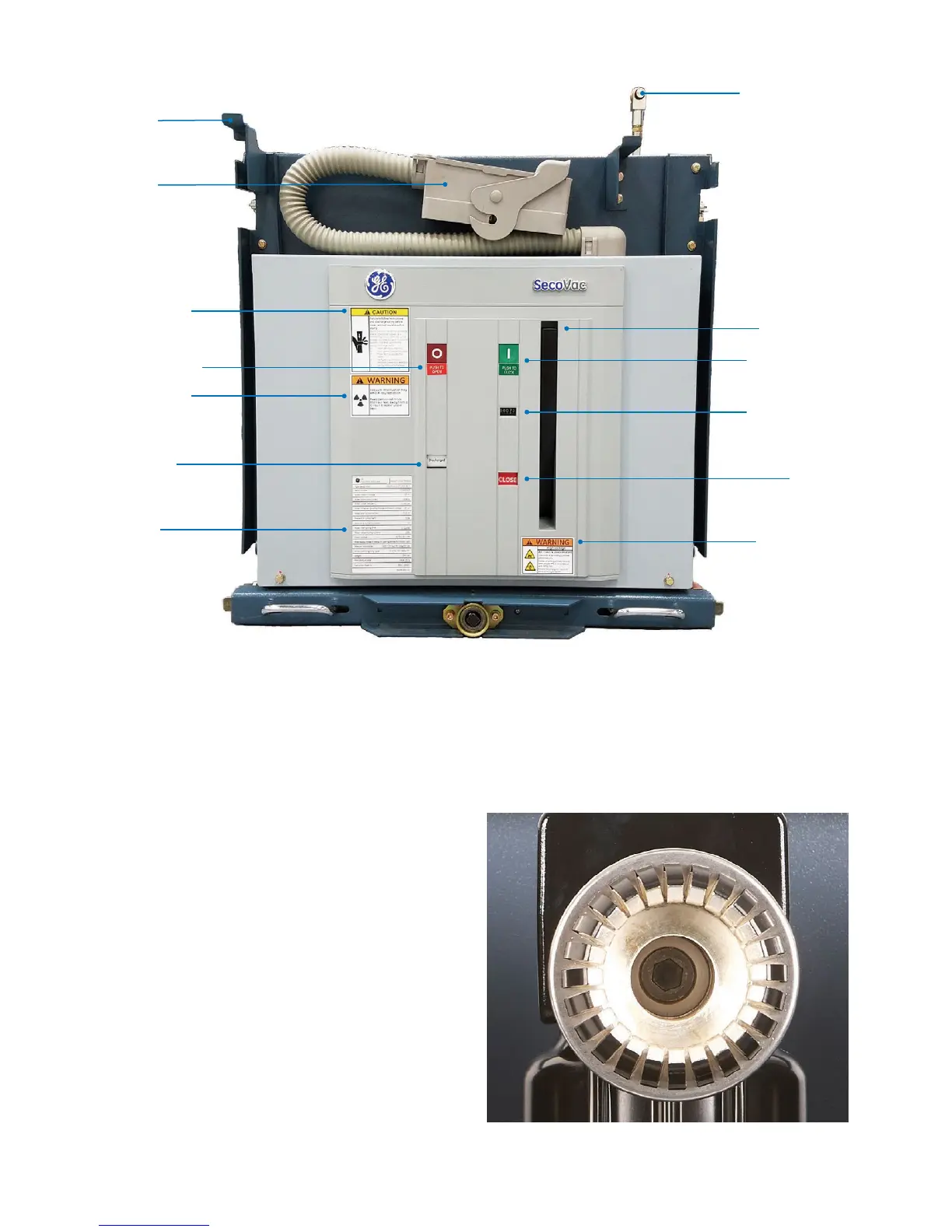

Figure 3-15: Disconnect Finger Cluster
Figure 3-15: SecoVac Vacuum Circuit Breaker
This removable element of the SecoVac vacuum circuit
breaker consists of an operating mechanism, interlocks, and
primary and secondary disconnecting devices. All SecoVac
vacuum circuit breakers are equipped with wheels for
easy movement.
SecoVac vacuum circuit breakers of the same rating are
interchangeable in their corresponding circuit breaker
compartments; for detailed description and operation
instructions, refer to Publication#DEH-50001 SecoVac
Vacuum Circuit Breaker Installation Manual.
Primary Disconnects
Primary disconnects utilize silver-plated copper fingers
positioned in a circular configuration and are supported by a
non-magnetic spider. This spider spaces the fingers equally
around the circuit breaker stud and fastens them to the end of
the stud.
Spring discharge
instructions
Secondary
disconnect
plug connector
TOC switch
actuator
Charging handle
MOC switch plunger
Close push button
Operation counter
Open/close
indicator
HV warning label
Open push button
Vacuum bottle
label
Spring charge
status indicator
Nameplate
The fingers are held in contact with the circuit breaker stud
by a garter spring, providing contact pressure when the finger
assembly is connected to the tube in the SecoGear circuit
breaker compartment.
