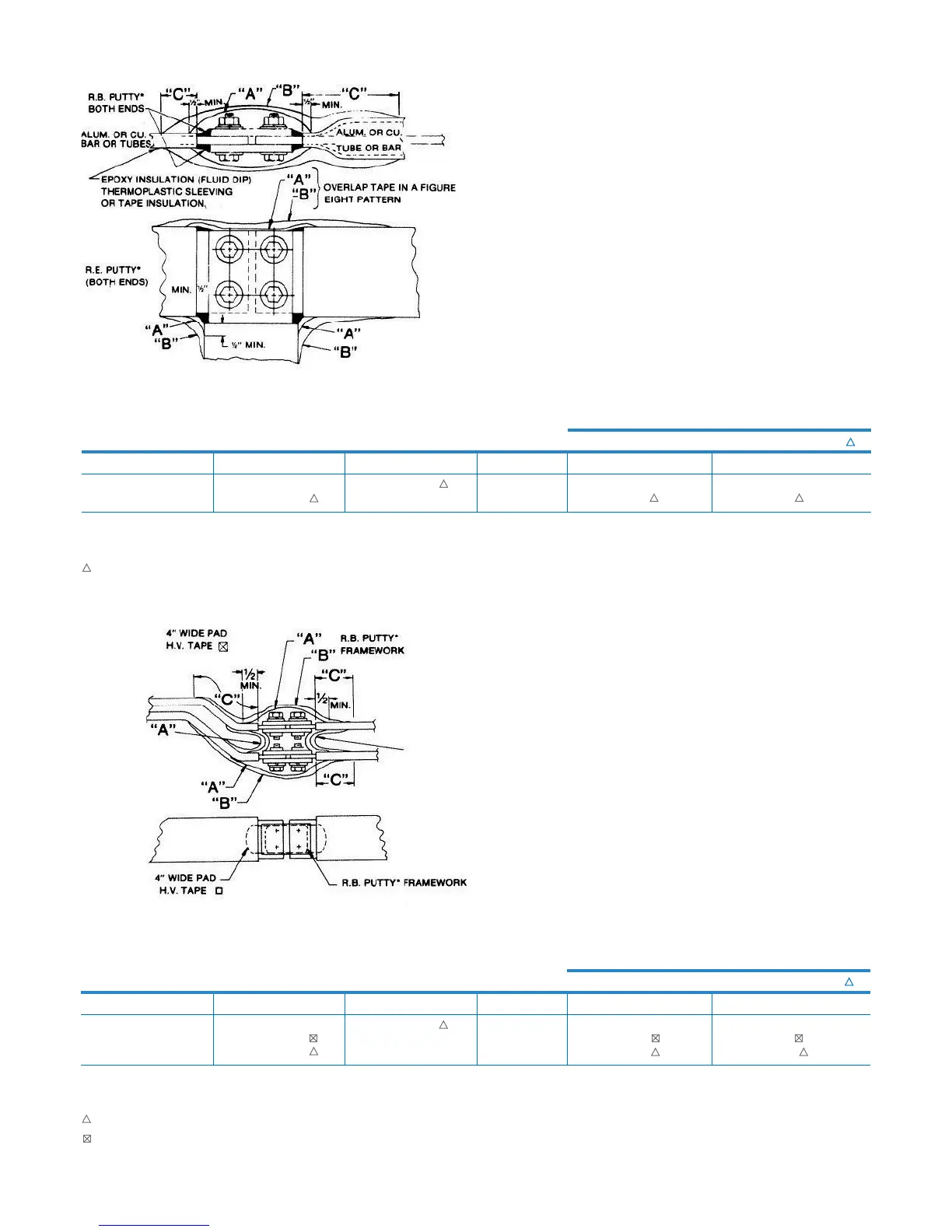

GE SecoGear - Figure 4-14: Tape Tee Connection Joint; Figure 4-15: Tape Double Bus Bar Joint; Table 4-5: Tape Tee Connection Joint; Table 4-6: Tape Double Bus Bar Joint

SecoGear – Installation, Operation and Maintenance Manual 30 of 56
APPROX. NO. ROLLS PER JOINT OF H.V. TAPE
INSULATION LEVEL INNER FILLER “A” OUTER WRAP “B” “C” 2” OR 3” BARS 4” OR 6” BARS
5 or 15KV R.B. Putty*
3-Layers H.V. Tape
2-Layers H.V. Tape 3” 1/2 Roll Putty*
1 Roll H.V. Tape
1 Roll Putty*
2 Roll H.V. Tape
Figure 4-15: Tape Double Bus Bar Joint
Figure 4-14: Tape Tee Connection Joint
Table 4-5: Tape Tee Connection Joint
* Electrical grade rubber-based putty 0282A3529 P008 in roll form will be used to grade voids and smooth out sharp edges of joints. This putty has no insulation value.
1-Roll is 1/8” x 1 1/2” x 5ft. LG.
High voltage insulating tape 0282A3529 p004 roll is .030” x 2” x 30’ LG. Apply with mastic side down.
APPROX. NO. ROLLS PER JOINT OF H.V. TAPE
INSULATION LEVEL INNER FILLER “A” OUTER WRAP “B” “C” 2” OR 3” BARS 4” OR 6” BARS
5 or 15kV R.B. Putty*
3-Layers H.V. Tape
3-Layers H.V. Tape
2-Layers H.V. Tape 3” 1/2 Roll Putty*
1 Roll H.V. Tape
1 Roll H.V. Tape
1 Roll Putty*
2 Roll H.V. Tape
2 Rolls H.V. Tape
Table 4-6: Tape Double Bus Bar Joint
* Electrical grade rubber-based putty 0282A3529 P008 in roll form will be used to grade voids and smooth out sharp edges of joints. This putty has no insulation value.
1-Roll is 1/8” x 1 1/2” x 5ft. LG.
High voltage insulating tape 0282A3529 p004 roll is .030” x 2” x 30’ LG. Apply with mastic side down.
H.V. Tape 0282A3529 p005 – Roll is .030” x 4” x 30’ LG.
