8 CUSTOMER INTERFACE
8.1 CUSTOMER INTERFACE
Serial port J3 - RS 232 (sub D - female 9 pin)
Suitable for JUMP protocol
Pin 2: TX (out) Pin 3: RX (in) Pin 5: GND
J2 (subD-female 25p) – Output signals on voltage free contacts
J2
/
1, 2, 3
- NO, C, NC - Utility Failure (def. Param. RL=1)
J2/4, 5, 6 - NO, C, NC - Load on Inverter (def. Param. RL=3)
J2/7, 8, 9 - NO, C, NC - Stop Operation (def. Param. RL=5)
J2/14, 15, 16 - NO, C, NC - Load on Utility (def. Param. RL=2)
J2/17, 18, 19 - NO, C, NC - General Alarm (def. Param. RL=4)
J2/20, 21, 22
- NO, C, NC - Acoustic Alarm (def. Param. RL=6)
Signals on terminals X1 and on connector J2 are in parallel
and therefore not separated galvanically from each other.
The programmable signals on X1 and J2 will be disabled with Q1
open, with the exception of the signals for “16 - Manual Bypass ON”
and “26 - EPO”.
XB - Terminals for EPO connection
X2 / 1, 2
or
J2 / 12, 25
NC EPO (Emergency Power Off)
Note: to enable this function, remove cable short-circuiting XB / 2 – 3
and the Jumper JP3 on P4 – Customer Interface
.
X1 – Output signals on voltage free contacts - terminals
X1/1, 2, 3 - NO, C, NC - Utility Failure (def. Param. RL=1)
X1/4, 5, 6
- NO, C, NC - Load on Inverter (def. Param. RL=3)
X1/7, 8, 9
- NO, C, NC - Stop Operation (def. Param. RL=5)
X1/12, 13, 14 - NO, C, NC - Load on Utility (def. Param. RL=2)
X1/15, 16, 17 - NO, C, NC - General Alarm (def. Param. RL=4)
X1/18, 19, 20 - NO, C, NC - Acoustic Alarm (def. Param. RL=6)
Input contacts
X1/10, 21 or J2/10, 23 Programmable (default = RL1)
X1/11, 22 or J2/11, 24 Programmable / Generator ON (NO) (def. = RL2)
1
12 13
2
14
3
15
4
16
5
17
6
18
7
19
8
20
9
21 10
22 11
1
14
9
1
X1
J2
J3
SGT5000_100-150_Customer interface_01
J5
J4
XA
21
XB
1
2
3
4
1
2
3
4
JP3

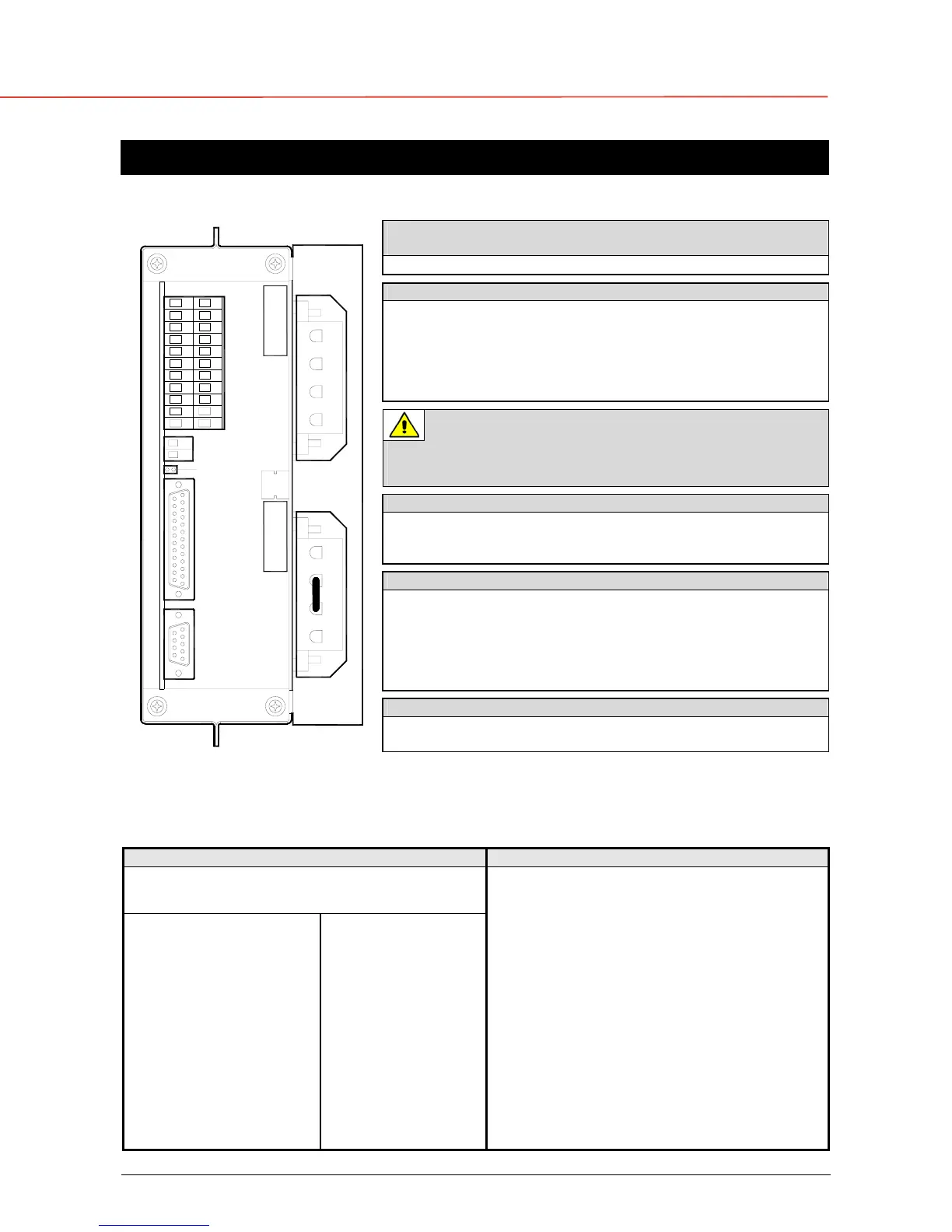

Fig. 8.1-1 Customer interface
NO = normally open C = common NC = normally closed
The connectors J4 and J5 can be used for additional SNMP Card, Environmental Card (not available yet)
or an additional
Customer Interface
(installation only when the UPS is switched Off).
XA: terminals for 24VDC Auxiliary Power Supply connection. XB: terminals for EPO connection.
Programmable user relays Programmable functions on contacts (X1 - J2)
On terminals
X1
or
J2
connector, six of the following
26
signals can be selected from the display, entering with the
appropriate password.
0- No Information
1- Buzzer
2- General Alarm
3- Load on Utility
4- Stop Operation
5- Load on Inverter
6- Utility Failure
7- DC Over Voltage
8- Low Battery
9- Overload
10- Over Temperature
11- Inverter-Utility not syncr.
12- Bypass Locked
13- Bypass Utility Failure
14- Rectifier Utility Failure
15- Battery Discharge
16- Manual Bypass ON
17- Rectifier ON
18- Inverter ON
19- Boost Charge
20- Battery Earth Fault
21- Battery Fault
22- Relay Input 1
23- Relay Input 2
24- Relay Output ON
25- Relay Output OFF
26-
EPO (Emergency
Power Off)
Some UPS functions can be activated with
parameters when an external Normally Open
contact is closed on:
X1-10, 21 / J2-10, 23
or
X1-11, 22 / J2- 11, 24
Selectable functions by changing
parameters
(password required) are:
0 - No function 1 - Inverter ON
2 - Inverter OFF 3 - Print All
4 - Status Relay 5 - Generator ON
6 - External Bypass ON
7 - External Battery Fuses, or External K3.
See Alarm 4104 - “Battery Fuses”.
Voltage free contacts: Max. DC / AC: 24V / 1.25A
IEC 950 (SELV circuit)
Min. Signal Level: 5VDC/50mA
