GE SG Series User Manual

Critical Power
Modifications reserved
Page 25/46
GE_UPS_OPM_SGS_ISG_10K_40K_0US_V070.docx
Installation Guide SG Series 10-20-30-40 UL S
SG Series 10 & 20
How to access the terminals for the cable connections.

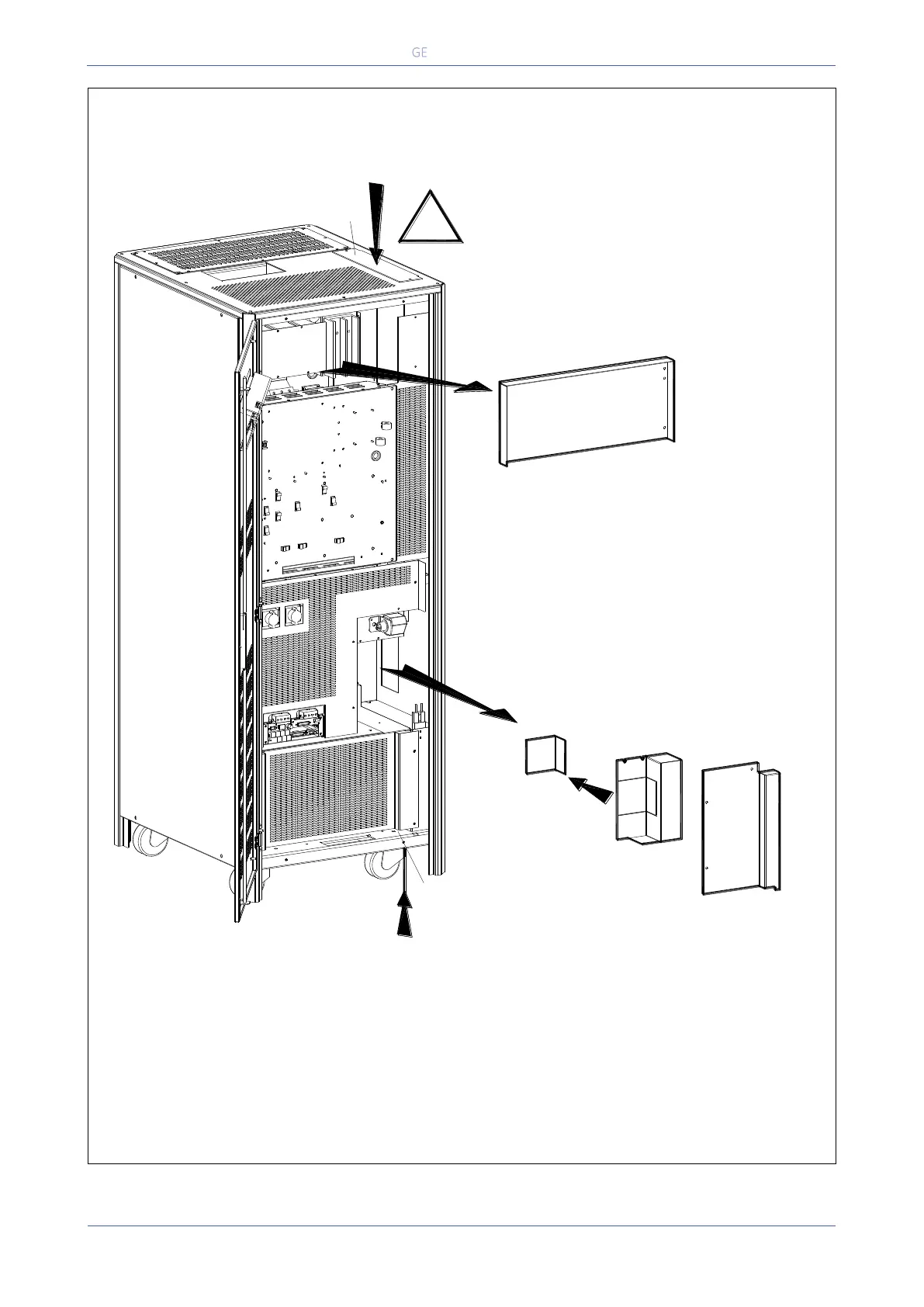

Fig. 3.8.1-1 Access to the input / output connections of SG Series 10 & 20
To access input, output and Battery connections proceed as follows:
 Remove protection panel “A”.
 Remove protection panel “B”.
 Remove UPS side panel “C”.
 Only for Dual Input Utility:
Remove with appropriate tool the metallic window “D” from the metal screen “C”.
A
C
B
Bottom entry cables
Top entry cables
SGUL_010-020_UPS connection_01US
D
E
!
Please remove the plate "E & F"
before drilling any wholes.
F
