User Manual TLE Series 160 - 500 UL S2B
2.2 LAYOUT TLE Series 300 - 400 - 500

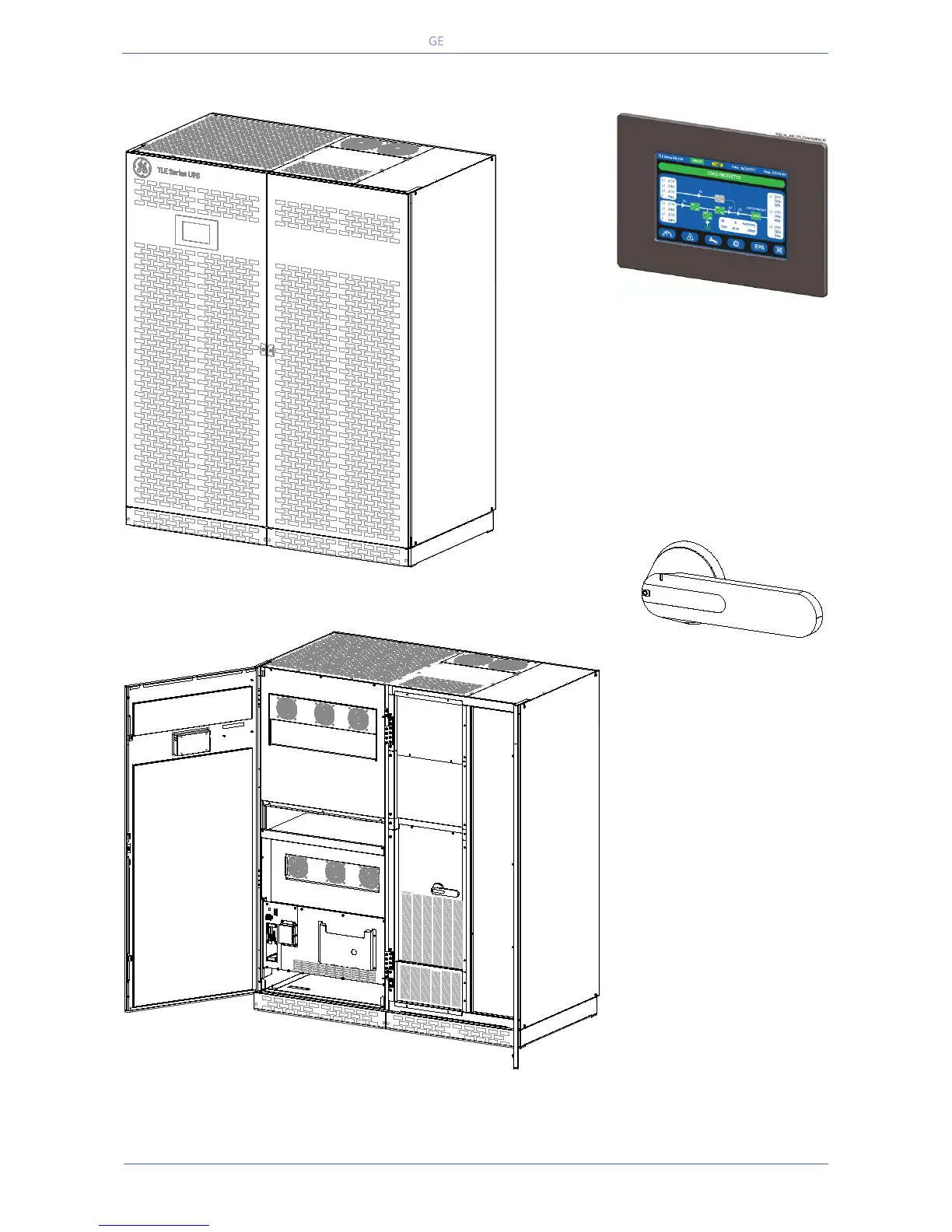

Fig. 2.2-1 TLE Series 300 – 400 - 500 - General view
Fig. 2.2-3 Control Panel
Fig. 2.2-4 Q1 - UPS Output switch
Fig. 2.2-2 TLE Series 300 – 400 - 500 - General view with open doors
TLES_UL_400-500_S1_UPS_GE_02
TLES_UL_400-500_S1_Switch Q1_01
Q1
I ON
0 OFF
TLES_UL_400-500_S1_UPS_GE_03a
Q1
12
I ON
0 OFF
EPO
EPO
- +
