5 CONTROL PANEL
5.1 CONTROL PANEL

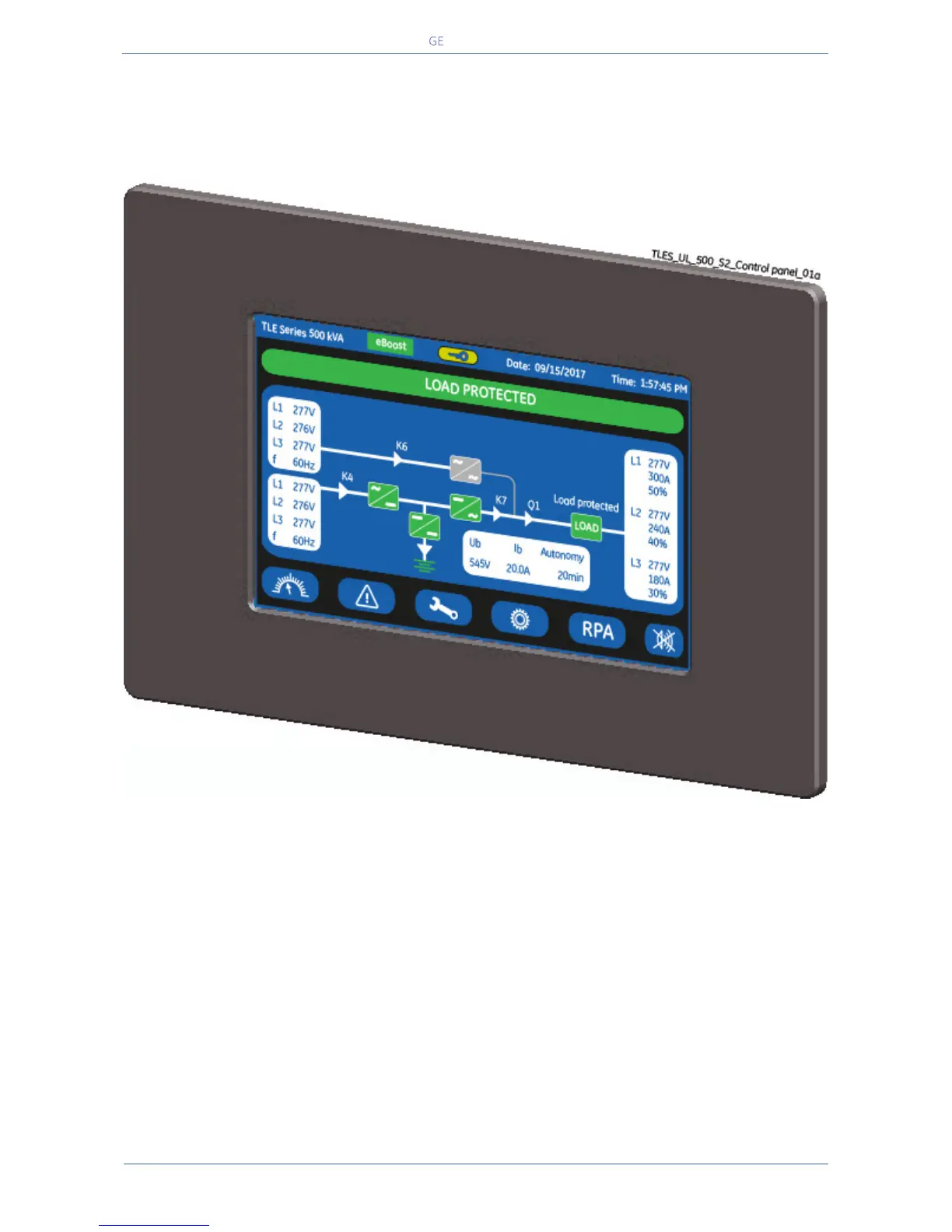

Fig. 5.1-1 Control Panel
The Control Panel, positioned on the UPS front door, acts as the UPS user interface.
Main features:
• LCD Touch screen color graphic display. See Chapter 6.
• Multilanguage communication interface:
English, German, Italian, Spanish, French, Finnish, Polish, Portuguese, Czech, Slovenian, Chinese,
Swedish, Russian and Dutch.
• Synoptic diagram indicating UPS status.
• Command keys and parameters setting.
• UPS status control LED.
