Critical Power
Modifications reserved
Page 9/91
GE_UPS_USM_TLE_SUL_M16_M50_2bU_V010.docx
User Manual TLE Series 160 - 500 UL S2B

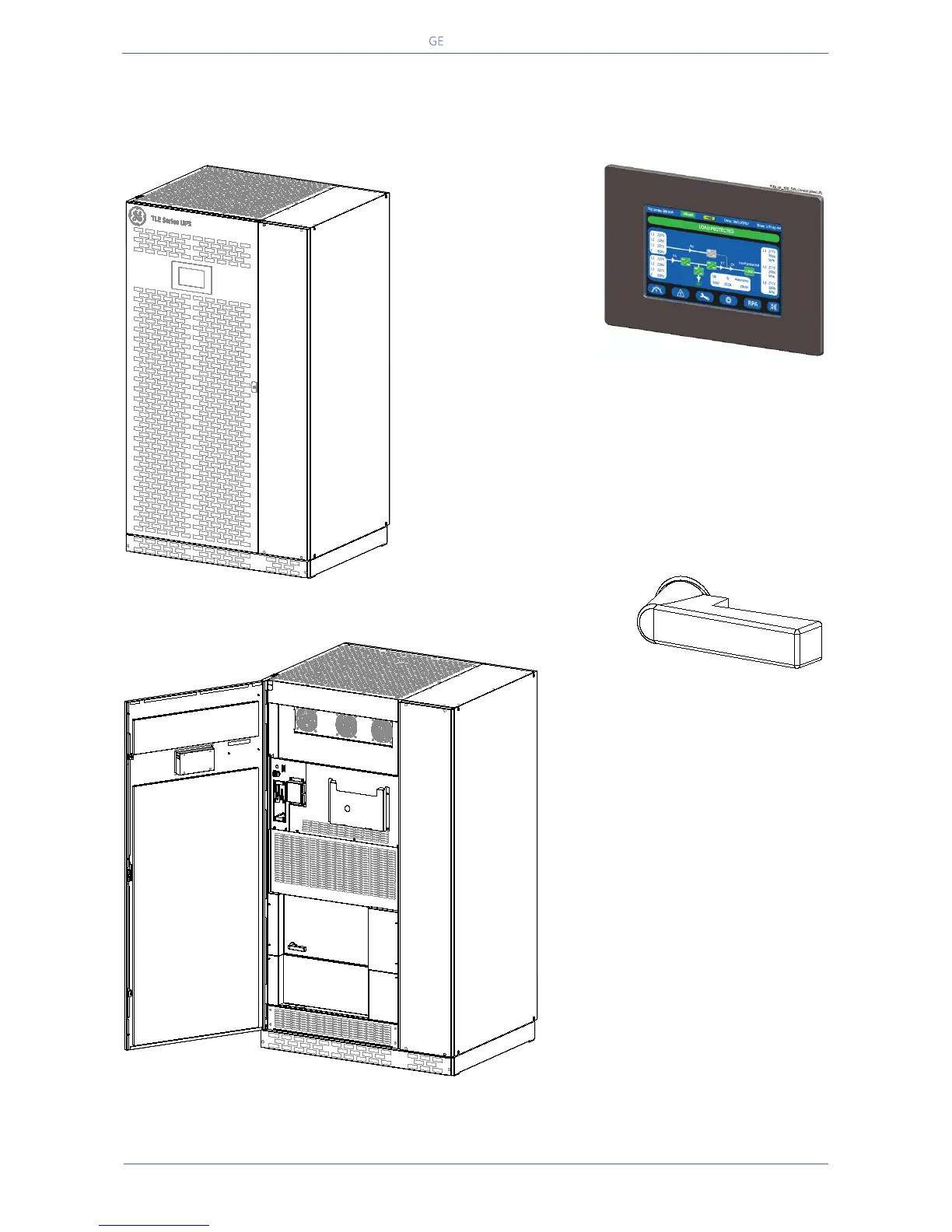

2 LAYOUT
2.1 LAYOUT TLE Series 160 - 220 - 225 - 250
Fig. 2.1-1 TLE Series 160 - 200 - 225 - 250 General view
Fig. 2.1-3 Control Panel
Fig. 2.1-4 Q1 - UPS Output switch
Fig. 2.1-2 TLE Series 160 - 200 - 225 - 250 - General view with open doors
TLES_UL_225-250_S1_UPS_GE_02
Q1
I ON
0 OFF
TLES_UL_225-250_S1_Switch Q1_01
TLES_UL_225-250_S1_UPS_GE_03
Q1
I ON
0 OFF
1
2
EPO
EPO
-
+
