9.11 Programming the PLACEMENT Menu
The PLACEMENT menu allows the user to configure the mounting method of the
transducers, based on the programmed information in the
TRANSDUCERS menu
(see “Programming the TRANSDUCERS Menu” on page 20).
9.11.1 Viewing the Traverse Configuration
For CLAMP-ON transducers, one of the six possible TRAVERSE configurations
shown in Figure 19 below is displayed, as appropriate for your programmed
transducer information. Typically, a two-traverse installation is used.

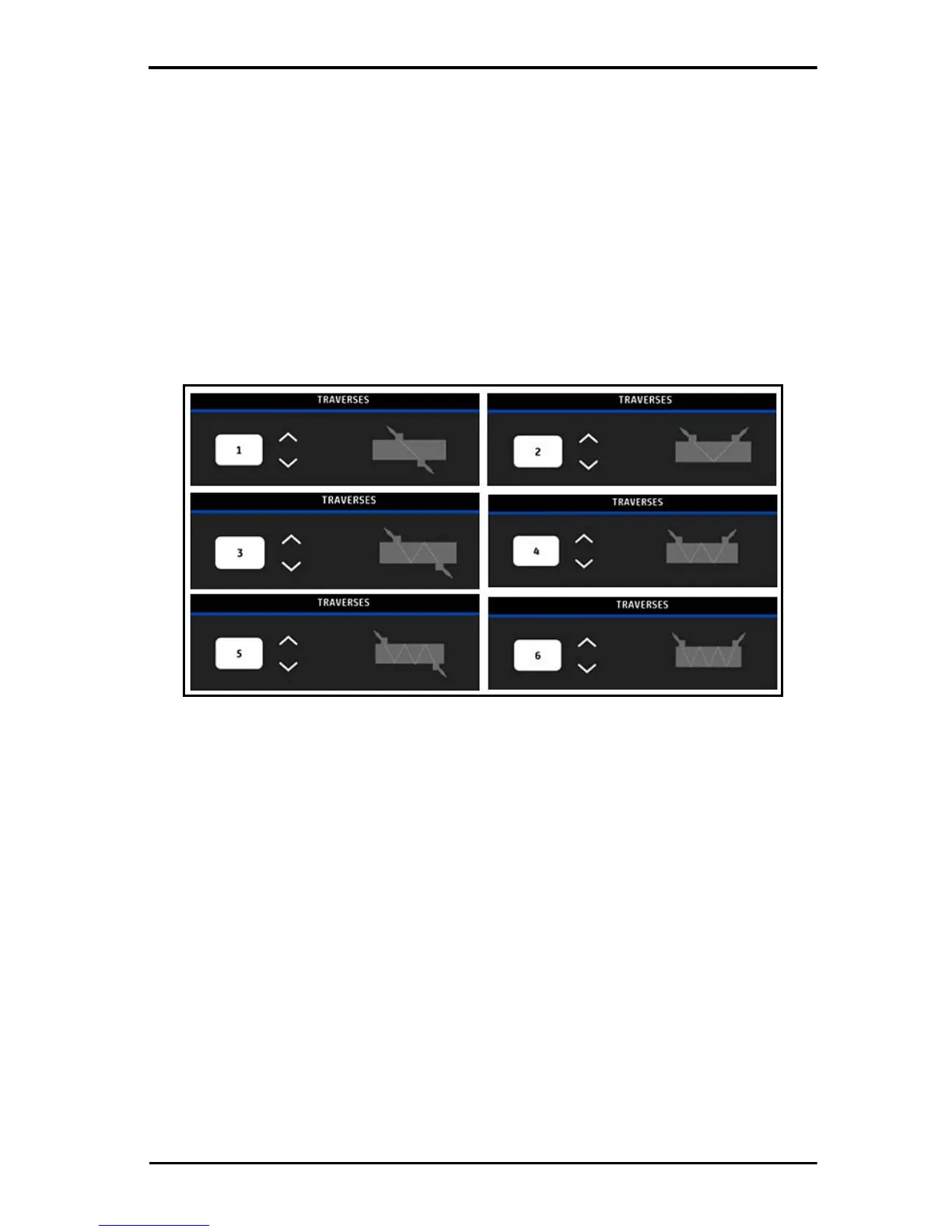

Figure 19: Clamp-On Traverse Configurations
