11.0 Taking Measurements
11.1 Setting Up the Measurements for Display
The PT900 APP can display up to 10 different variables at the same time. To set up
your display screen, click the
EDIT button at the top right of the measurement
screen to open the
SET UP MEASUREMENTS menu, as shown in Figure 22 below.

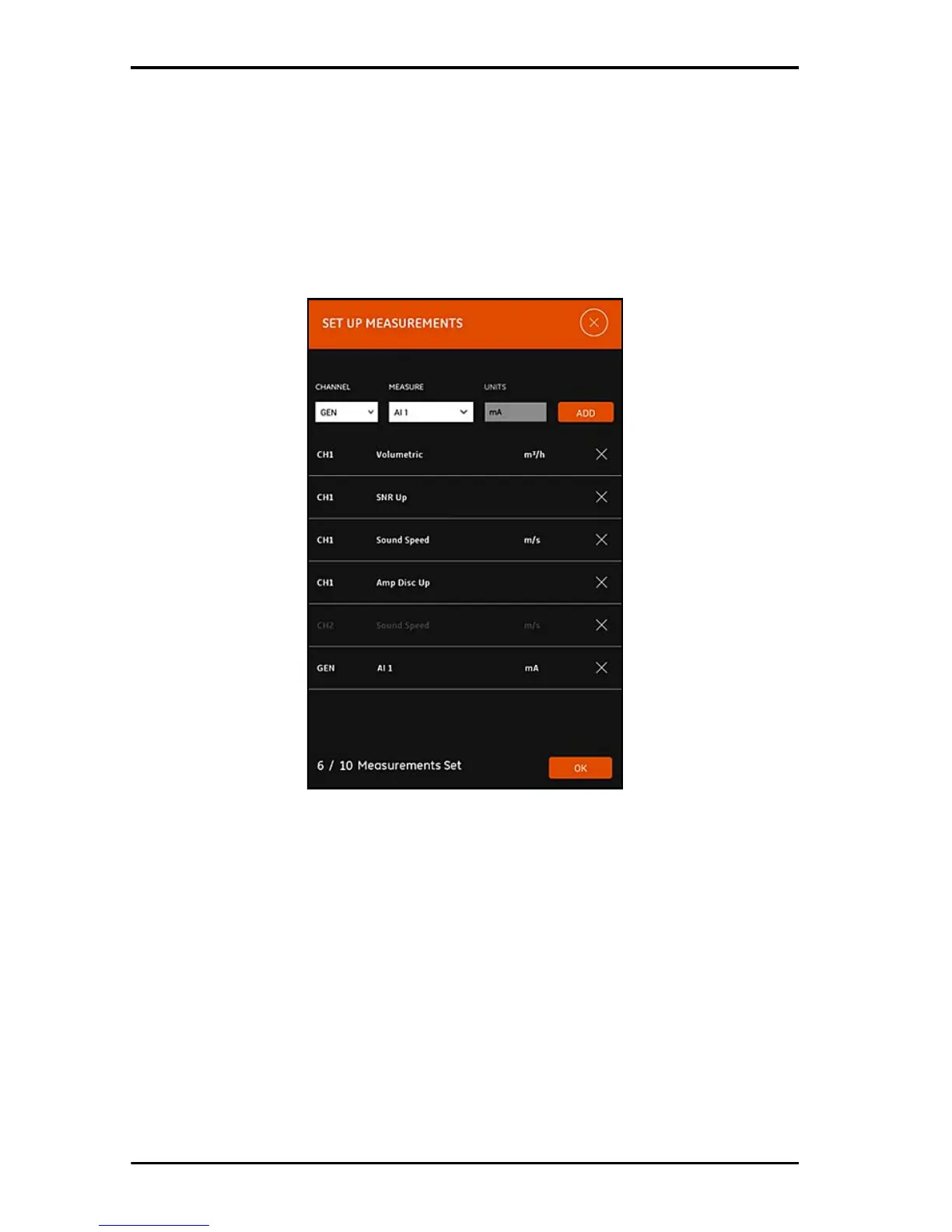

Figure 22: Set Up Measurements Menu
To set up your display measurements, complete the following steps:
1. Open the drop-down list in the
CHANNEL box and select either CH1, CH2,
Average or General as the channel to be displayed.
2. Open the drop-down list in the
MEASURE box and select the desired
measurement variable from the list.
