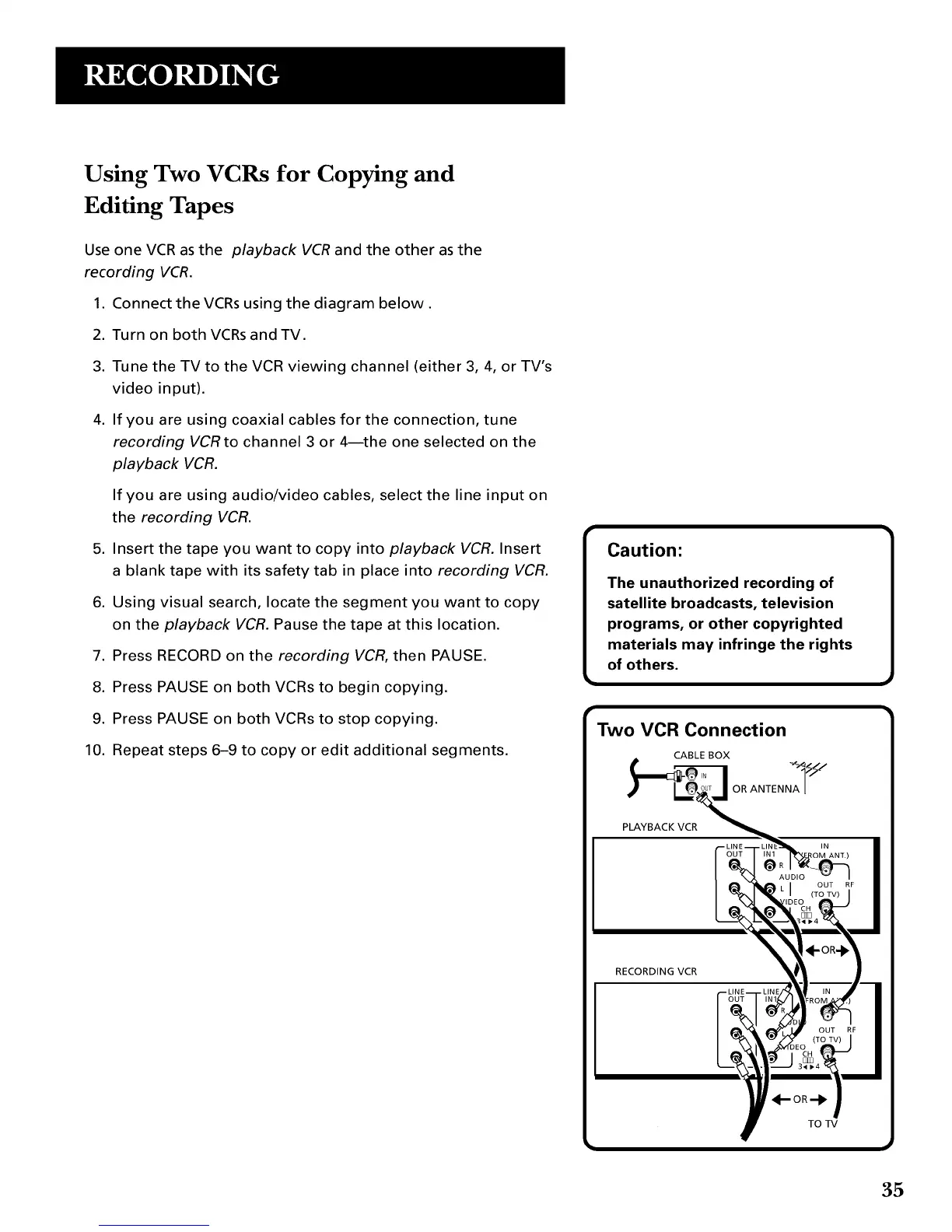

GE VG4272 - Using Two Vcrs for Copying and Editing Tapes

Using Two VCRs for Copying and
Editing Tapes
Use one VCR as the playback VCR and the other as the
recording VCR.
1. Connect the VCRs using the diagram below.
2. Turn on both VCRs and TV.
3. Tune the TV to the VCR viewing channel (either 3, 4, or TV's
video input).
4. If you are using coaxial cables for the connection, tune
recording VCRto channel 3 or 4--the one selected on the
playback VCR.
If you are using audio/video cables, select the line input on
the recording VCR.
5. Insert the tape you want to copy into playback VCR. Insert
a blank tape with its safety tab in place into recording VCR.
6. Using visual search, locate the segment you want to copy
on the playback VCR. Pause the tape at this location.
7. Press RECORD on the recording VCR, then PAUSE.
8. Press PAUSE on both VCRs to begin copying.
9. Press PAUSE on both VCRs to stop copying.
10. Repeat steps 6-9 to copy or edit additional segments.
Two VCR Connection
CABLE BOX
OR ANTENNA_'_
PLAYBACK VCR
RECORDING VCR
35
