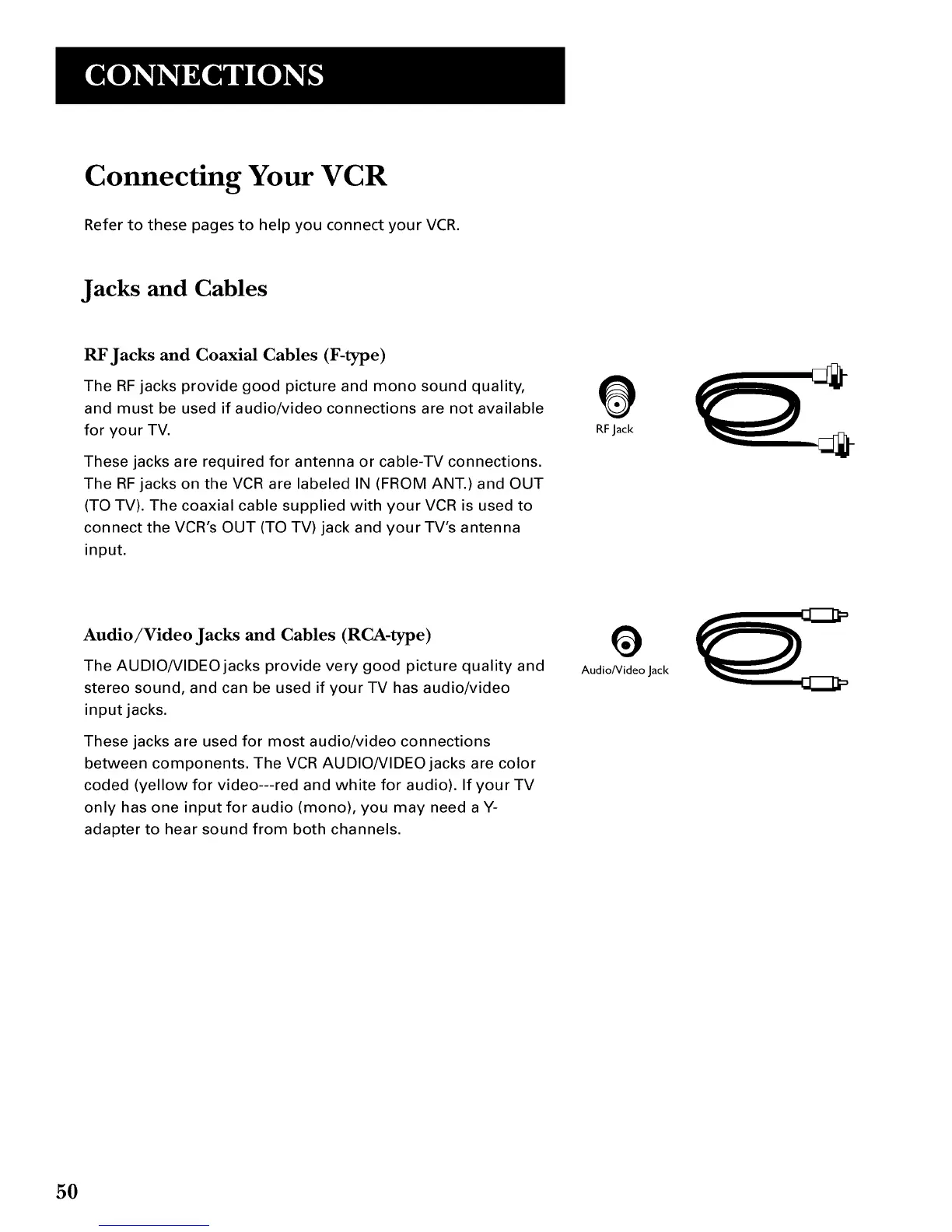

Connecting Your VCR
Refer to these pages to help you connect your VCR.
Jacks and Cables
RFJacks and Coaxial Cables (F-type)
The RF jacks provide good picture and mono sound quality,
and must be used if audio/video connections are not available
for your TV.
These jacks are required for antenna or cable-TV connections.
The RF jacks on the VCR are labeled IN (FROM ANT.) and OUT
(TO TV). The coaxial cable supplied with your VCR is used to
connect the VCR's OUT (TO TV) jack and your TV's antenna
input.
O
RFJack
Audio/Video Jacks and Cables (RCA-type)
The AUDIO/VIDEO jacks provide very good picture quality and
stereo sound, and can be used if your TV has audio/video
input jacks.
These jacks are used for most audio/video connections
between components. The VCR AUDIONIDEOjacks are color
coded (yellow for video---red and white for audio). If your TV
only has one input for audio (mono), you may need a Y-
adapter to hear sound from both channels.
O
Audio/Video Jack
5O
