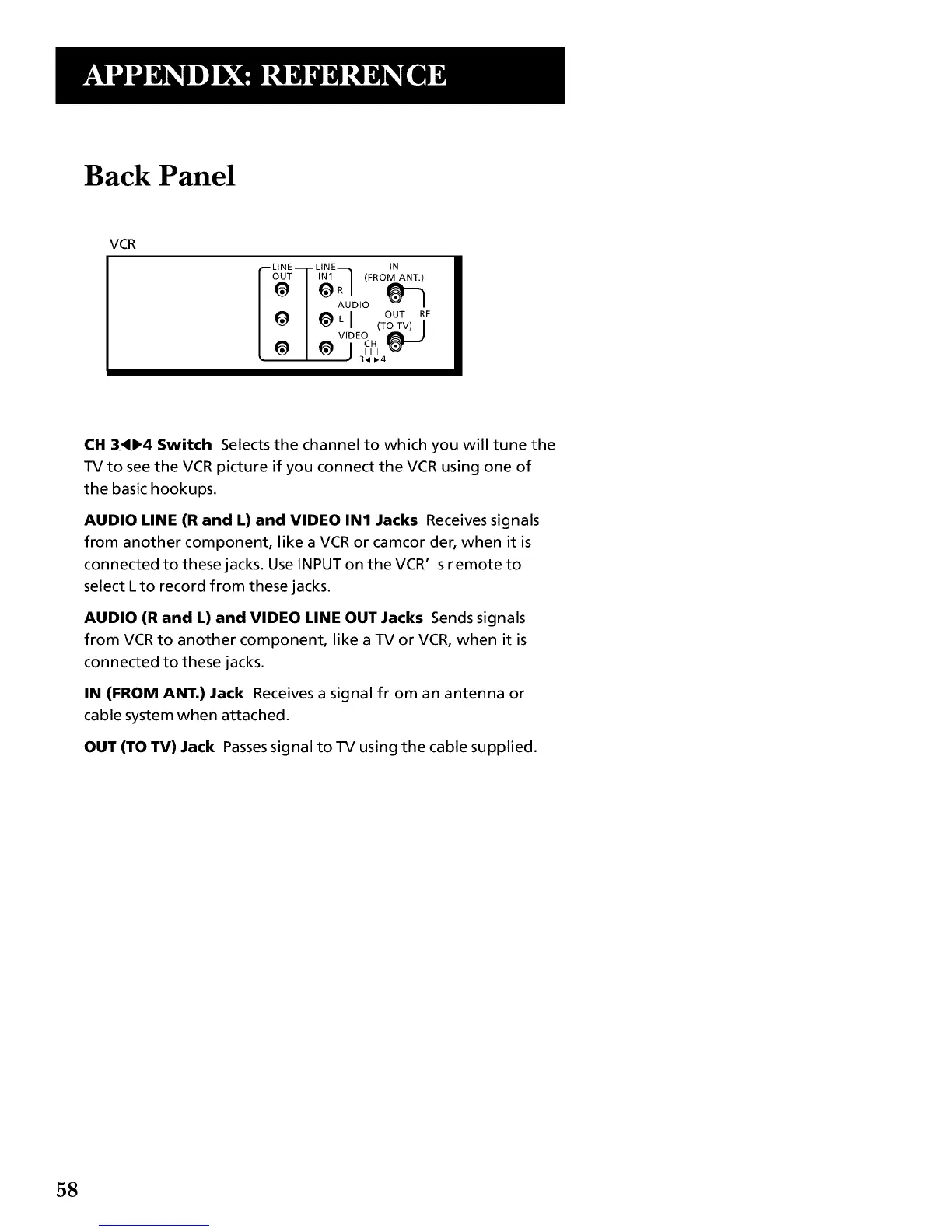

Back Panel
VCR
I LINE -mr- LINE--- x IN
OUT / IN1 / (FROM ANT.)
#_ / _ L OUT RF
_" / _ I (TOTV) I
/ VIDEO _ J
CH 3,.,4 Switch Selects the channel to which you will tune the
TV to see the VCR picture if you connect the VCR using one of
the basic hookups.
AUDIO LINE (R and L) and VIDEO IN1 Jacks Receives signals
from another component, like a VCR or camcor der, when it is
connected to these jacks. Use INPUT on the VCR' s remote to
select Lto record from these jacks.
AUDIO (R and L) and VIDEO LINE OUT Jacks Sends signals
from VCR to another component, like a TV or VCR, when it is
connected to these jacks.
IN (FROM ANT.) Jack Receives a signal fr om an antenna or
cable system when attached.
OUT (TO TV) Jack Passessignal to TV using the cable supplied.
58
