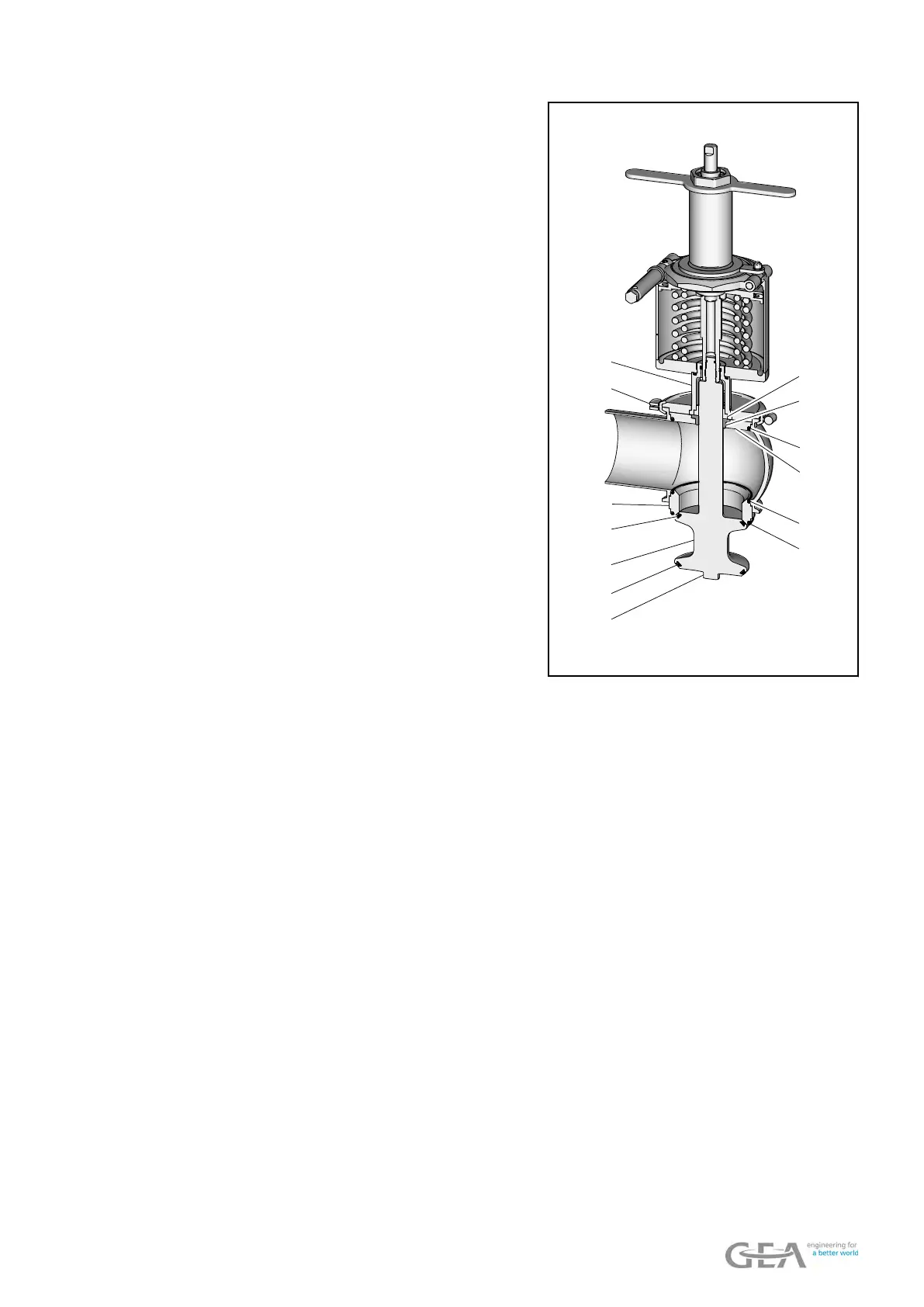

5. Press the bearing (2) into the lantern
(9).
6. Place
the seal disk (3) with the O-ring
(5) and seal ring (1) into the housing.
7. Place the lantern (9) onto the housing
and mount the hinged clamp (43) be-
tween the housing and the lantern.
®
Observe torques, see table ‘Tight-
ening torques’. 9.6.1 Tightening
torques .
8. Place the seat ring (33) with the O-
ring (5) into the housing.
9. Screw valve disk (15) with the V-ring
(7) into actuator and tighten using
jaw wrench at wrench at surface
(15.1). To do this, afx with a belt
wrench.
®
Observe torques, see table ‘Tight-
ening torques’. 9.6.1 Tightening
torques .
9
2
3
43
1
5
15
7
7
33
5
5
15.1
Þ
The valve insert is assembled from individual parts.
9.6 Installing the valve - 83 / 128
