5 Technical data

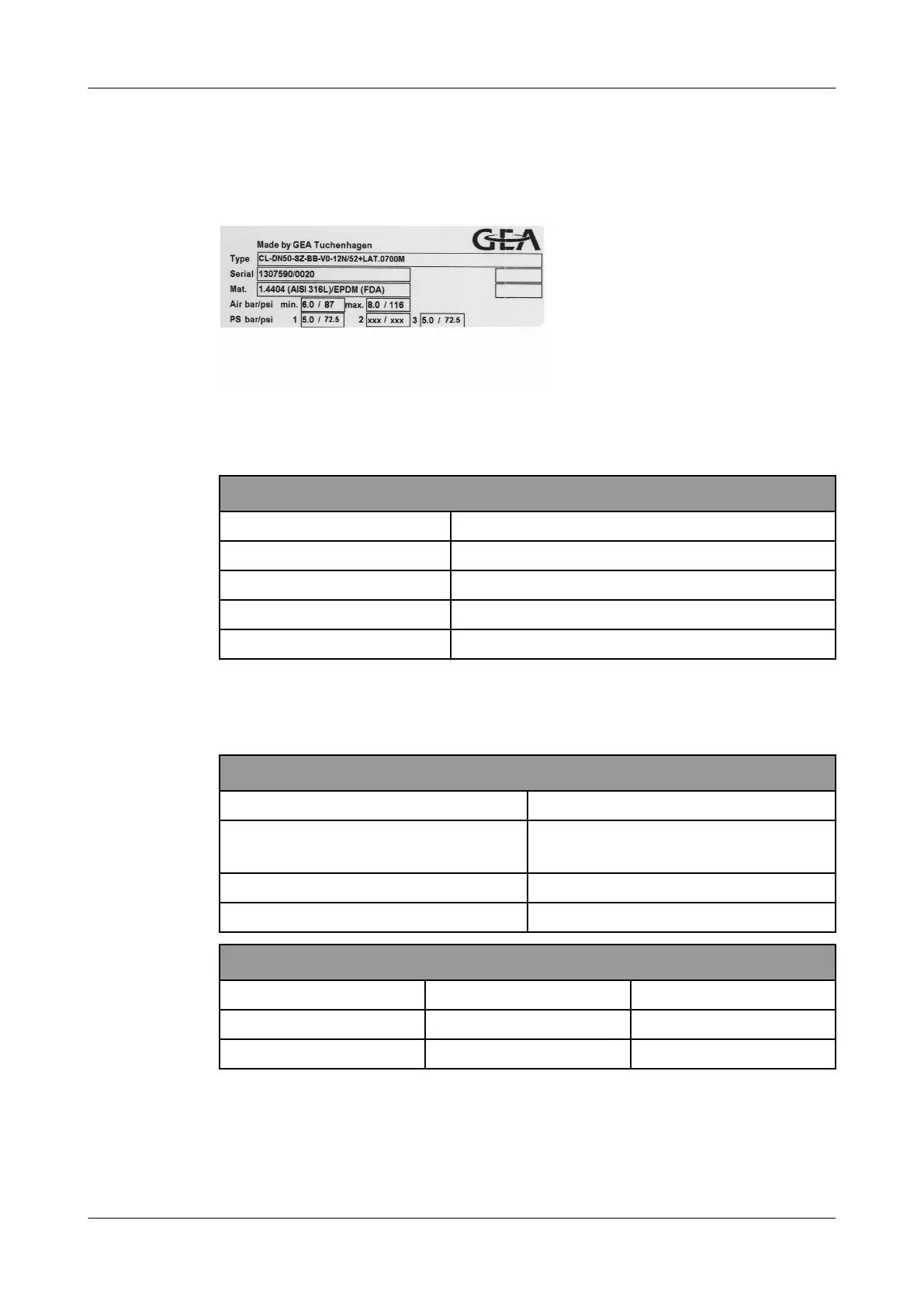

5.1 Type plate
The type plate clearly identifies the valve.
Fig.8
The type plate provides the following key data:
Key data of the valve
Type Double seal valve C
Serial Serial number
Material 1.4404(AISI316L)/FKM (FDA)
Control air pressure bar/psi min. 6.0 (87); max. 8.0 (116)
Product pressure bar/psi 5.0 (72.5)
5.2 Technical data
Refer to the following tables for the key technical data of the valve:
Technical data: Valve
Designation Description
Size
DN 25 to DN 150
1" to 6" OD
Material of product contact parts Stainless steel 1.4404
Fitting position Vertical
Technical data: flushing valve SPV
Designation Description Operating temperature
SPV C Piston material PVDF < 80°C
SPV C-S Piston material PEEK > 80°C
Technical data
Type plate
430BAL008331EN_4
22 18.02.2022
