2.
Shut off the control air supply.
3.
Disconnect the power supply.
4.
Take the valve out of the pipe section, with all housings and housing
connections if possible.
®
Done
10.5 Disassembling the Valve
10.5.1 Ventilating the Actuator for Disassembly
The actuator can be ventilated for disassembly via the pilot valve or with the
assembly tool.
Requirement:
•
The pneumatic and electrical connections at the site can remain on the
control top.
Via pilot valve
Hint!
The pneumatic and electrical connections can remain on the
connecting head.
Carry out the following steps:
1.

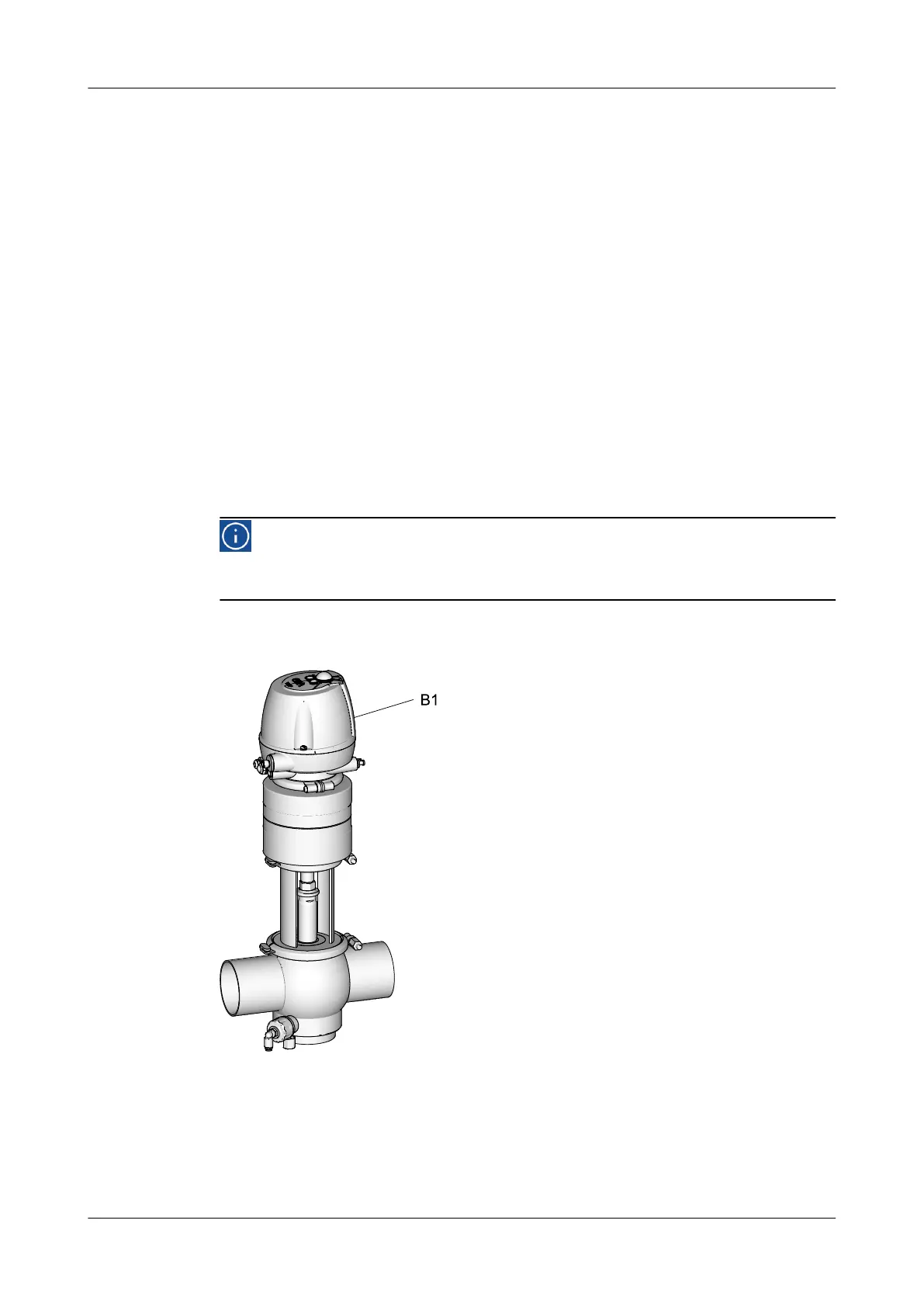

Remove the hood (B1) of the control top.
Fig.14
2.
Turn the screw (S) of the handheld control element on the pilot valve, see
Chapter "Commissioning, step 2 - Valve actuation" in the operating
instructions for the control top T.VIS.
Maintenance
Disassembling the Valve
430BAL008331EN_4
18.02.2022 43
