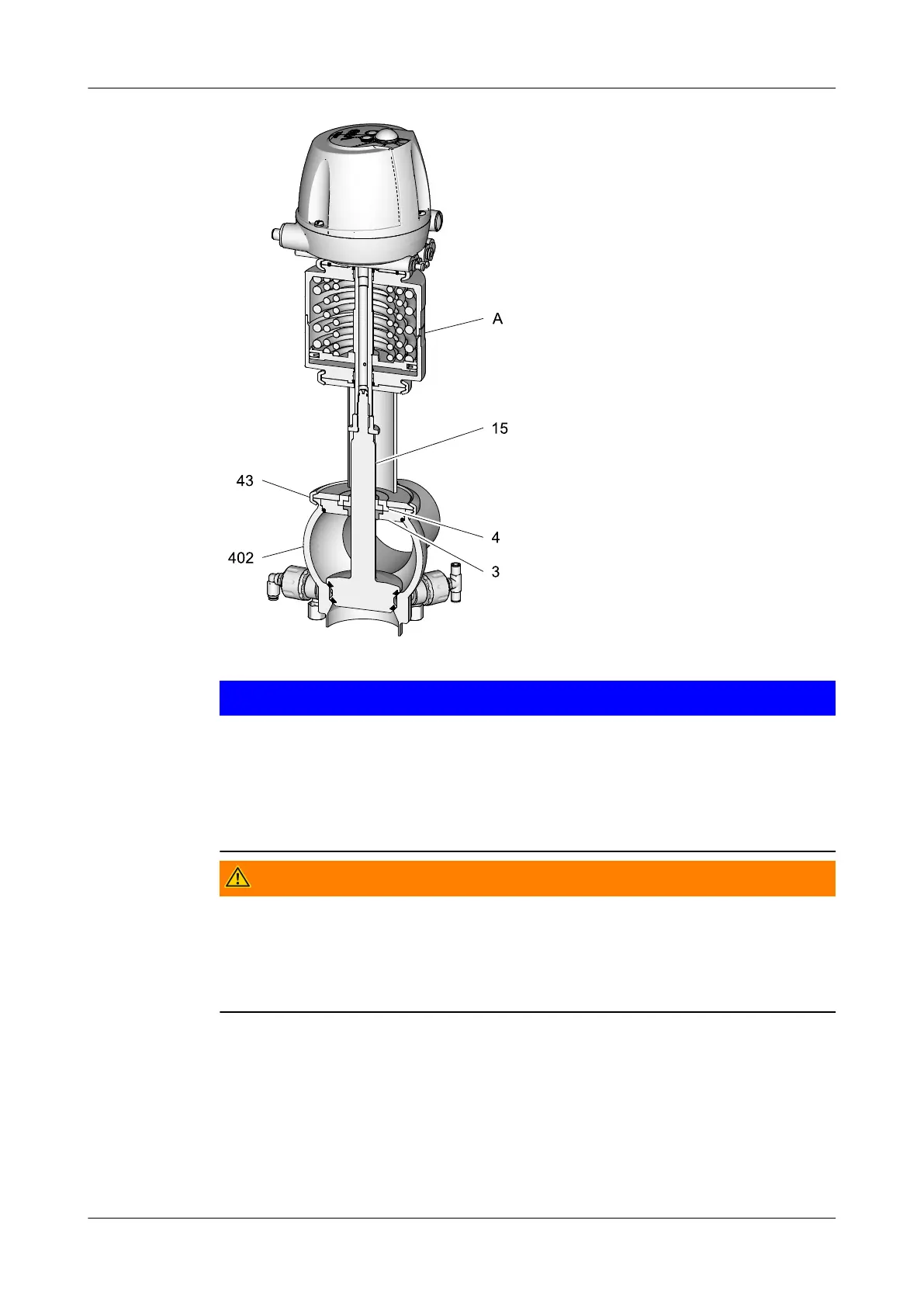

Fig.18
Notice
The stem of the valve disc (15) is a sensitive component.
Damage to these parts can result in malfunction.
► The bearing disc (4) and the sealing disc (3) must not hit the stem (15) of
the valve disc when the valve insert is withdrawn.
► Do not place the valve insert down on the valve disc. Therefore lay down
the valve insert.
Warning!
Spring tension in the valve
Danger of injury when detaching the clamp connection (43.1) as the
released spring pretension will suddenly lift the actuator.
► Therefore, release the spring tension before detaching the clamp
connections by pressurising the actuator with compressed air at max. 8 bar.
Carry out the following steps:
1.
Ventilate the valve.
®
The valve disc (15) is raised.
2.
Remove the clamp connection (43).
3.
Vent the actuator.
Maintenance
Disassembling the Valve
430BAL008331EN_4
46 18.02.2022
