GEA VARIVENT DN 65 - Removing the Control Top

2.
Unscrew the cleaning hose (30).
3.
Vent actuator at (22) or control the pilot valve using the manual override.

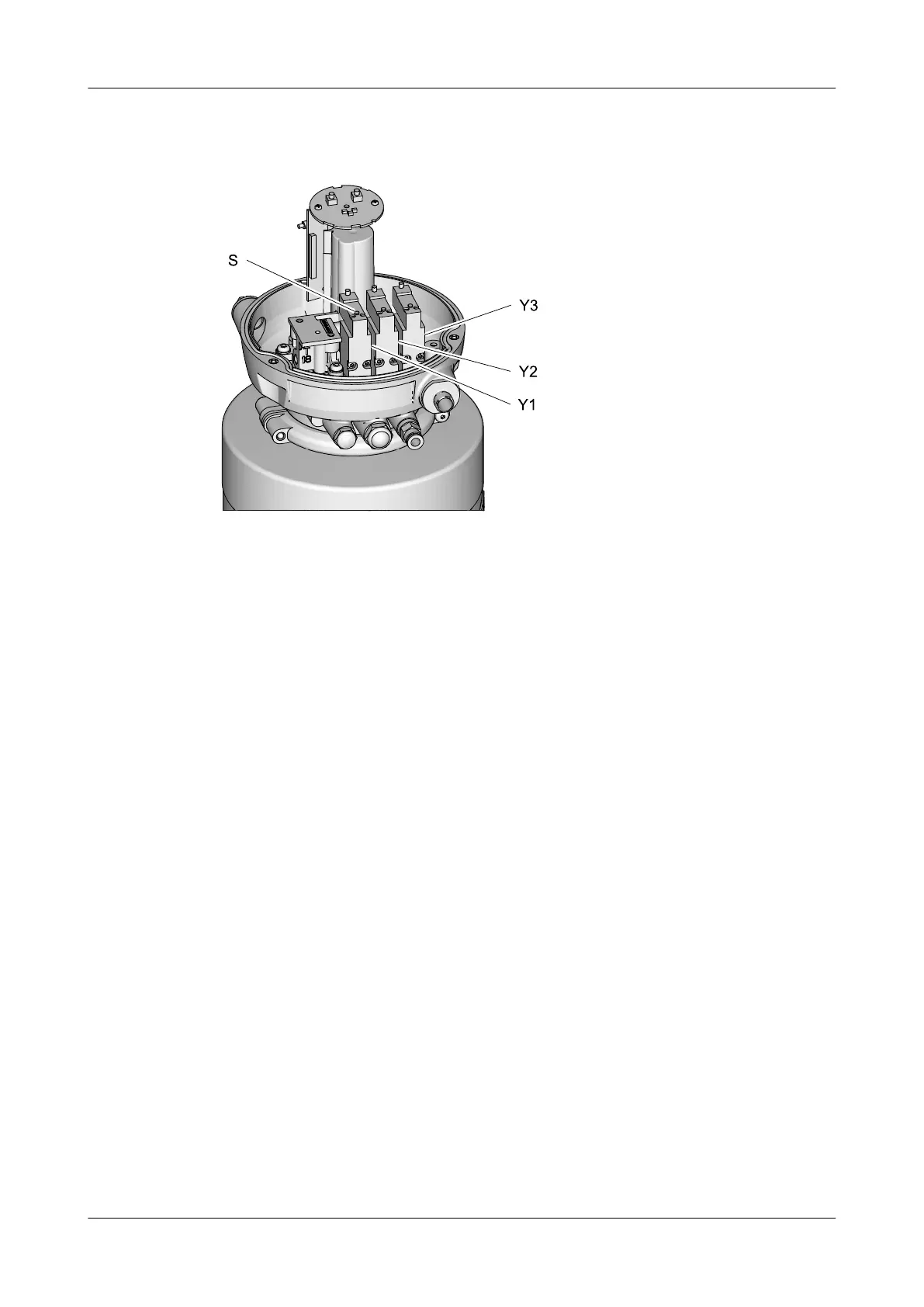

Fig.11: S = manual override pilot valve
4.
Remove the clamp connection (43.1) between housing and lantern.
5.
Vent the actuator.
®
Done
10.5.2 Removing the control top
Maintenance
Disassembly
430BAL008386EN_3
42 07.02.2022
