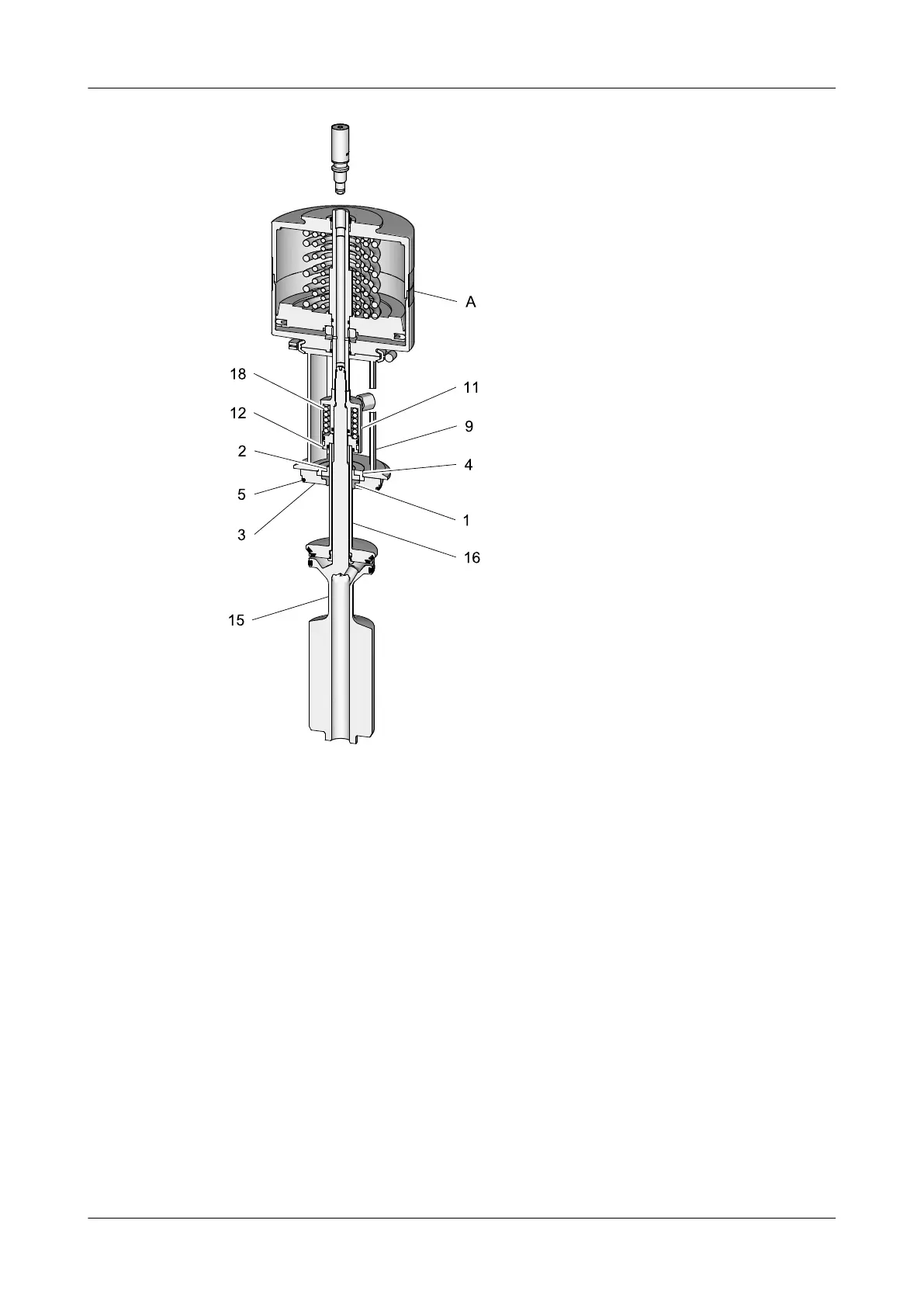

Fig.17
5.
Assembly the lantern (9) with hinged clamp on the actuator (A).
6.
Screw the valve disk (15), spanner flat C into the actuator (A). Hold the
actuator with a belt wrench.
7.
Screw the switch bar into the actuator.
®
The valve is assembled from individual parts.
