9
Connections
Connection of main keypad
Note: always shut power down before connecting an accessory to the in�ye�

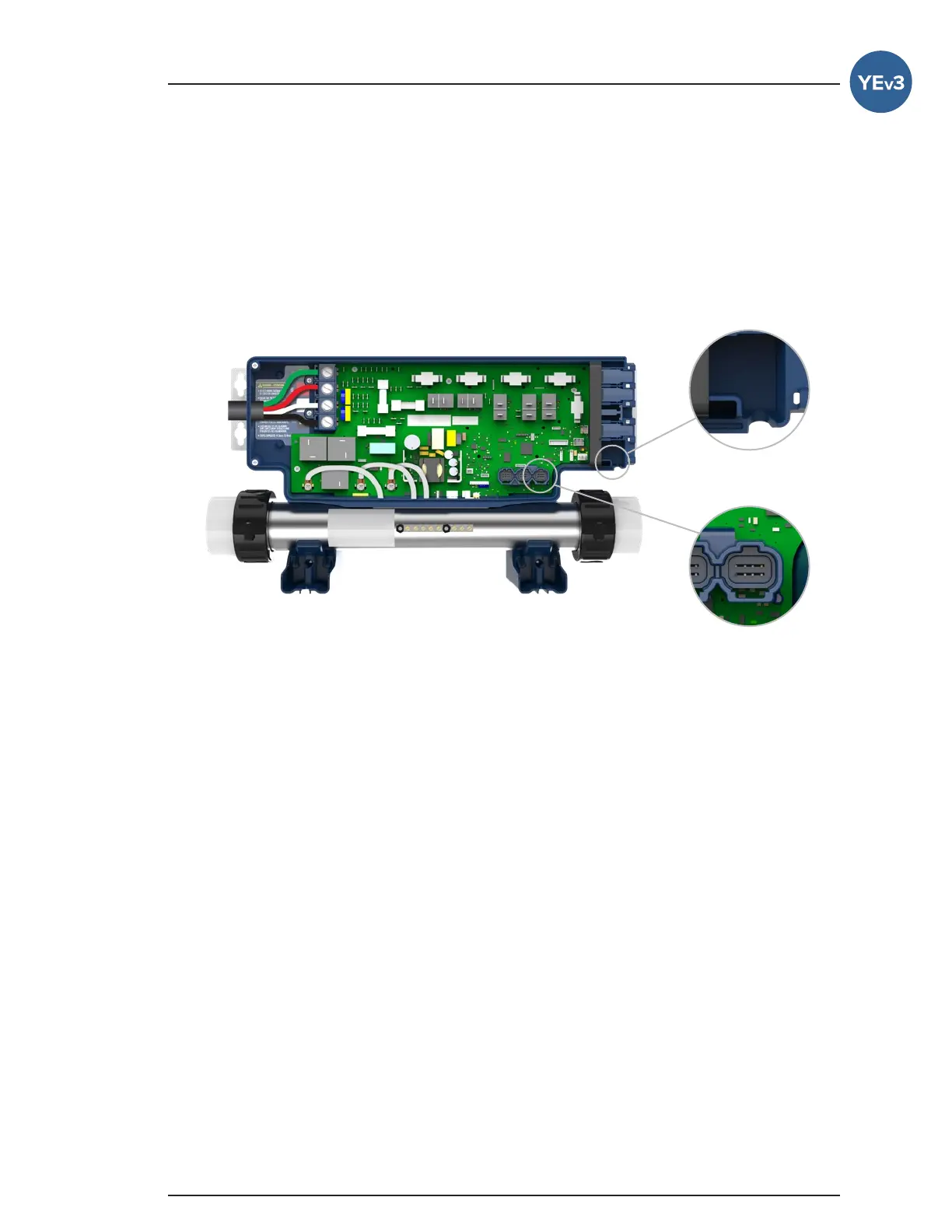

To connect the keypad, remove the cover, then insert the in�link connector into the appropriate keypad connector
(as illustrated)� Route the cable through the molded strain relief channel on the bottom right side of the spa
pack (as illustrated)� Don’t forget to replace the cover and all screws (torque to 8 in� lb max (0�9 N�m))�
Strain relief
channel
C1 - Main keypad
connector
