16

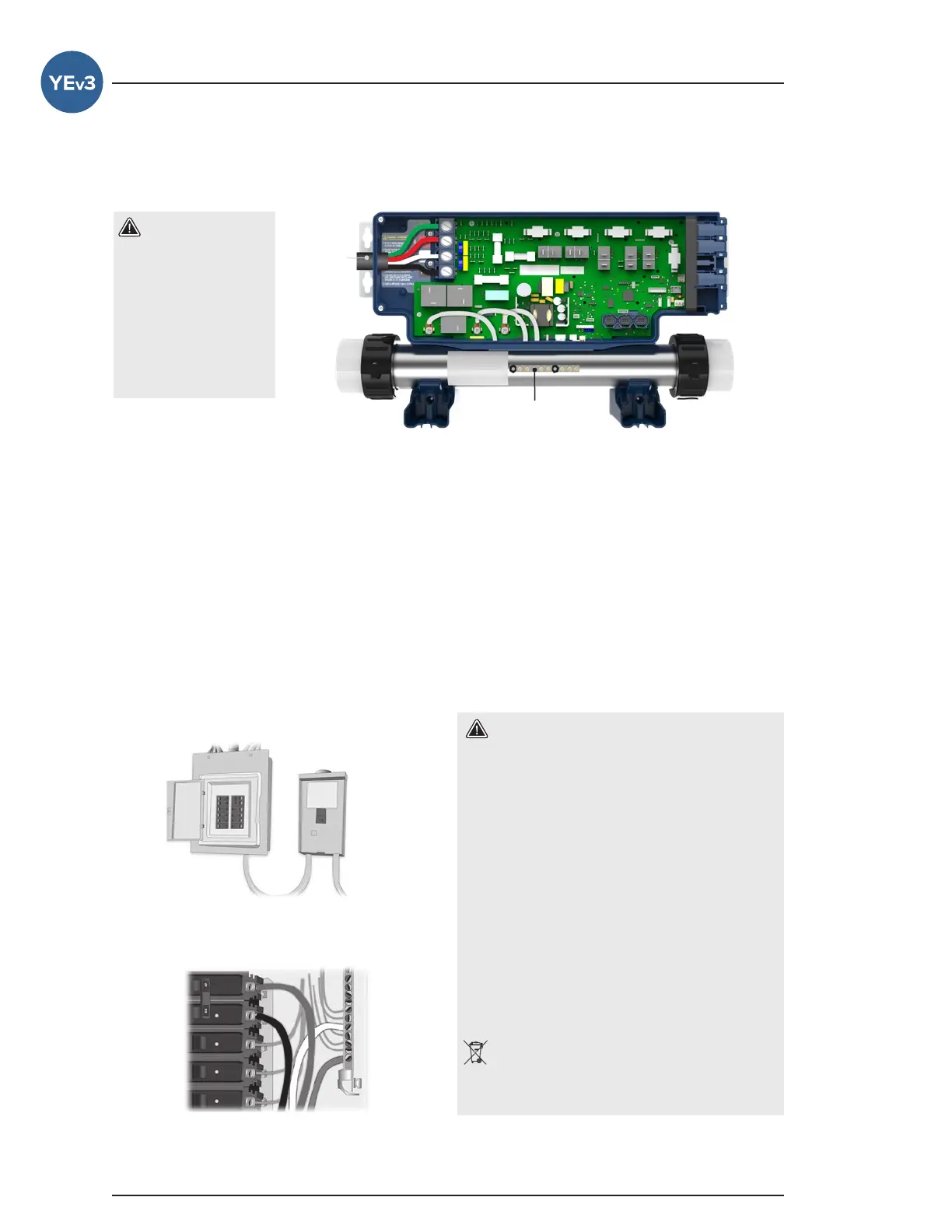

Electrical wiring : all models
Main electrical box GFCI panel
Electrical wiring
Warning
Disconnect power
before starting
electrical work�
Wiring must be
completed by a
qualified electrician
and must be done in
accordance with the
local electrical code�
To complete the electrical connections of our in�ye control system you will need a Phillips screwdriver and a flat-head
screwdriver (slotted head size between 5/16'' and 3/8'')�
Remove the screws from the system control lid and remove it�
Remove 5 1/2" (142 mm) of cable insulation�
Strip away 1" (25 mm) of insulation from each wire�
Pull the cable through the cutout of the box and secure it with a NPT strain relief* (hole diameter 1,335"
[34,42 mm])� Ensure that the NPT strain relief clamps are around the outer sheath of the cable�
* For CE use an IEC certified plastic bushing that will maintain the IPX5 rating.
Warning
For units to be installed in other than single-family
dwellings, a clearly labeled emergency switch
shall be provided as part of the installation�
The switch shall be readily accessible to the
occupants and shall be installed at least 5'
(1�52 m) away, adjacent to, and within sight of
the unit�
-----
This product must always be connected to a
circuit protected by a ground fault interrupter�
-----
Proper wiring of the electrical service box,
GFCI and in�ye terminal block is essential!
-----
Check your electrical code for local
regulations� Only copper wire should be
used, never aluminum�
-----
Disposal of the product
The appliance (or the product) must be
disposed of separately in accordance with the
local waste disposal legislation in force�
Bonding lug
Main power
connection
To Next Page
