Installation
The following material
is recommended:
4- # 10 screws of
appropriate length with
round, truss or pan head�
4- washers �5 OD» x
�0625» thickness
(12 mm OD x 1�5 mm)
Use 2 standard 2" x 4" or 2" x 6" wall studs, spaced
17-inch from center to center to fix the spa pack�
Firmly attach, one at a time, upper mounting holes on
each side of the spa pack with 2 screws backed by
2 washers�
Firmly attach lower mounting holes on each side of the
pack with the 2 remaining screws and 2 washers�
Lower mounting holes are 2" (51 mm) below upper holes�
Part number: Wall mount bracket kit 100 pcs - 9920-101474
(with 200 screws to attach to pack)
Install mounting brackets on both sides of the rear of the
unit, using screws provided with the brackets�
Torque screws to 13 in� lb max (1�49 N�m)�

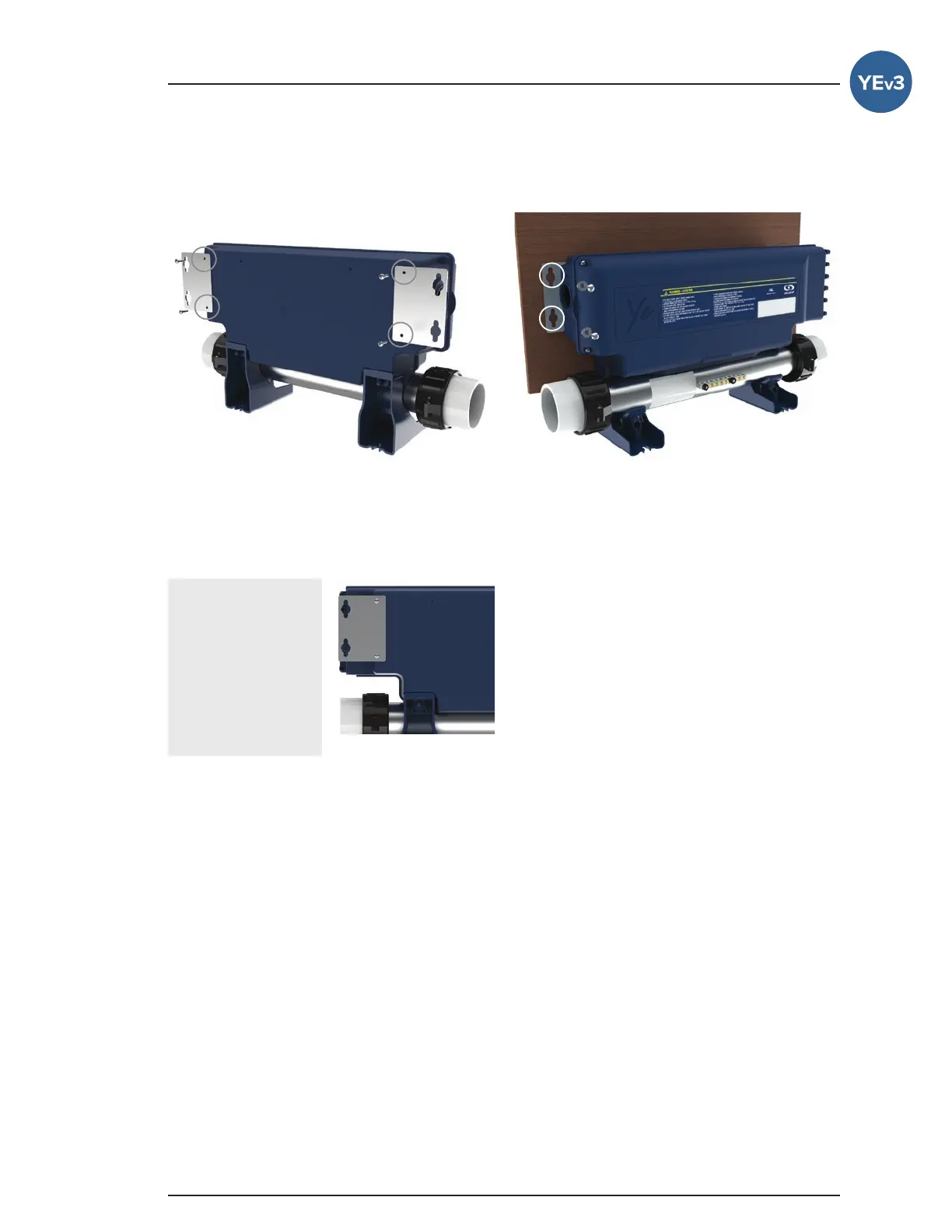

Wall installation procedure with optional wall mounting brackets (option 1)
