14

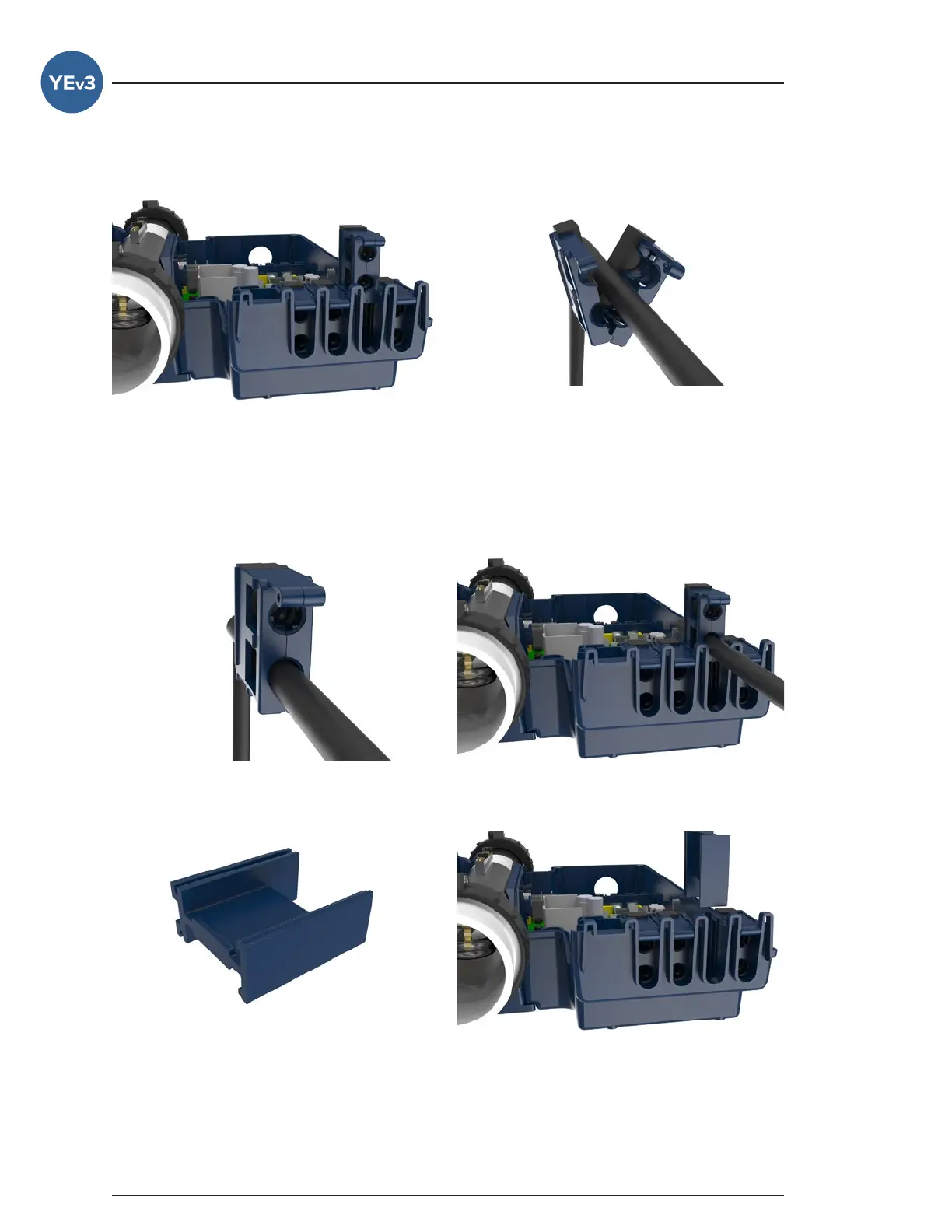

Open the in�claw and place the wire inside in the middle
of the round shape form�
Each in�claw can accept up to 2 high voltage cables,
(OD 0�410'' (10�41 mm) max� - OD 0�300" (7�62mm) min�)�
Make sure that the cable jacket exceeds the in�claw foam
inside the in�ye�
Reinsert the in�claw in its original position, pressing down
on either side of the cable�
Once all cables of high voltage accessories are connected
and routed to the right openings, remove the empty
in�claw from the enclosure�
Close the in�claw on the wire�
Once all in�claw's and shut-off are reinserted, replace the
cover� Cover screws should be tightened to a max of
8 lb�in (0�9 N�m)�
Close off unused openings in the enclosure with the
shut-off�
Note: By default, in.ye-3OP has 2 in.claws and 2 shut-off
in.ye-5OP has 3 in.claws and 1 shut-off
Part Numbers:
9920-102288 - in.claw
9917-106808 - shut-off
Connections
Completing the installation
