12

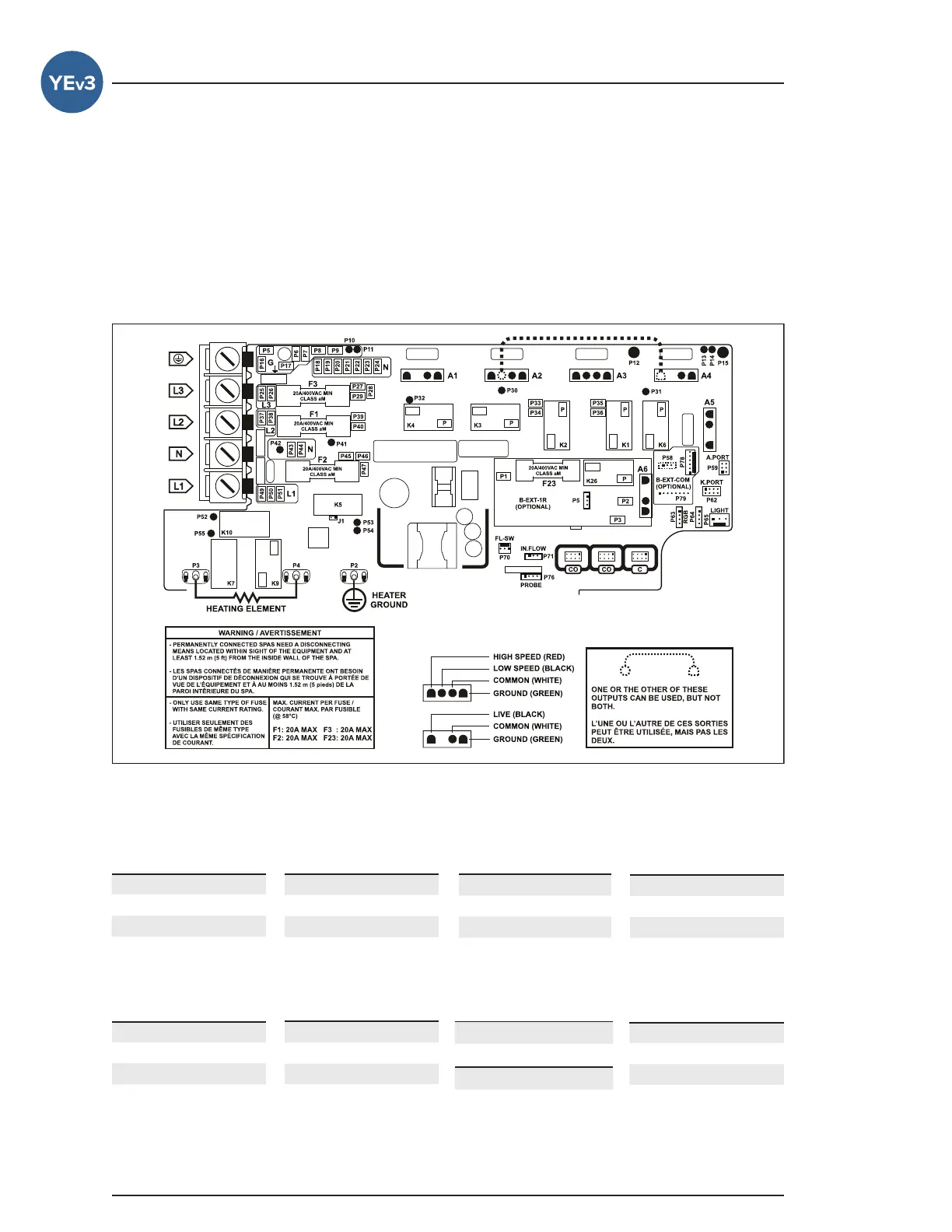

Connecting high voltage accessories: European model in.ye
For the connection to the 0�250 inch terminals, the high voltage accessories must be provided with female quick
connect terminals, straight and non-insulated for all types of connections, including the ground� Only 230 V accessories
may be connected to the corresponding terminals of the printed circuit of the in�ye� Refer to the following tables for
correct connections� Note that all female terminals must be correctly and completely seated on the printed circuit
terminals for proper current ratings�
This table shows typical connections� OEMs may have a different connection scheme�
* Ozonator and circulation pump can be combined on the same output via the optional splitter PP1�
** Max� available current for Light and LEDs RGB together�
Connections
Circulation pump* (A1)
Voltage 230 V
Green / ground P6
Black / line K4-P
White / common P18
Direct output 1 (A5)
Voltage 230 V
Green / ground P16
Black / line P45
White / common P22
Pump 1 (A2)
(in.ye-5-CE)
Voltage 230 V
Green / ground P7
Black / low speed K6-P
Red / high speed K3-P
White / common P19
Pump 3 (A4)
(in.ye-5-CE only)
Voltage 230 V
Green / ground P9
Black / line K6-P
White / common P21
Pump 1 (A3)
Voltage 230 V
Green / ground P8
Black / low speed K2-P
Red / high speed K1-P
White / common P20
Pump 2 (A2)
(in.ye-3-CE)
Voltage 230 V
Green / ground P7
Black / low speed K2-P
White / common P19
Connection for model without AMP connectors:
Light (12 V dc, 1.3 A Max.)**
P65
LEDs RGB (in.lu.me only)
P63; P64
Optional output (A26)
(in.ye-4-CE or -6-CE only)
Voltage 230 V
Green / ground P17
Black / line K26-P
White / common P44
To Next Page
