11
Connecting high voltage accessories: all models
Two options are available with Y Series spa packs for connecting high voltage accessories: 0�250” quick-connect
terminals, or AMP connectors conform to industry standards�
Connections

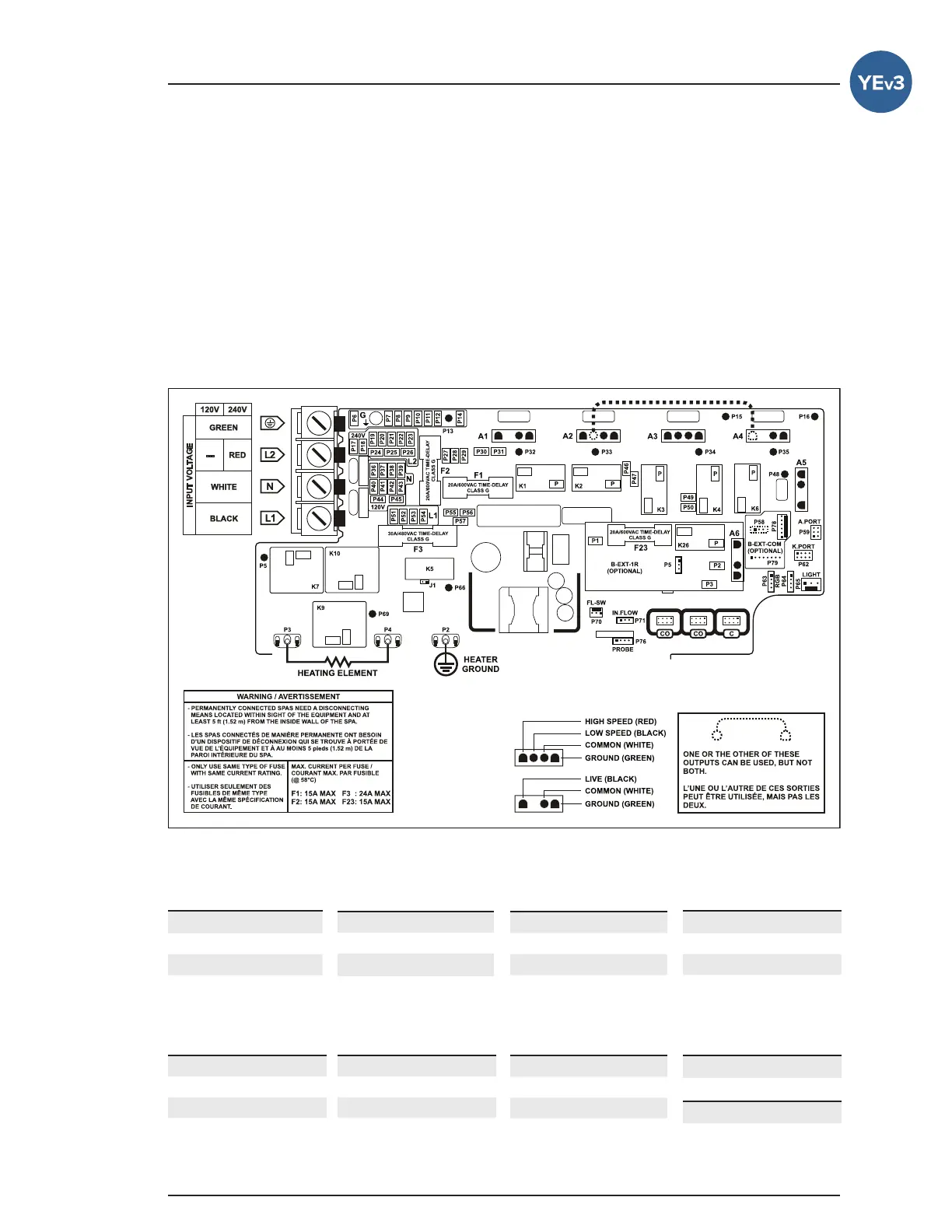

Connecting high voltage accessories: North American model in.ye
For the connection to the 0�250 inch terminals, the high voltage accessories must be provided with female quick
connect terminals, straight and non-insulated for all types of connections, including the ground� Accessories of 120 V or
240 V may be connected to the corresponding terminals of the printed circuit of the in�ye� Refer to the following tables
for correct connections� Note that all female terminals must be correctly and completely seated on the printed circuit
terminals for proper current ratings�
Circulation pump* (A1)
Voltage 120 V 240 V
Green / ground P7 P7
Black / line K1-P K1-P
White / common P36 P19
Optional output (A26)
(in.ye-4 or -6 only)
Voltage 120 V 240 V
Green / ground P12 P12
Black / line K26-P K26-P
White / common P45 P26
Direct output 1 (A5)
Voltage 120 V 240 V
Green / ground P11 P11
Black / line P49 P49
White / common P44 P24
This table shows typical connections� OEMs may have a different connection scheme�
Connection for model without AMP connectors:
* Ozonator and circulation pump can be combined on the same output via the optional splitter PP1�
** Max� available current for Light and LEDs RGB together�
Pump 2 (A2)
(in.ye-5 only)
Voltage 120 V 240 V
Green / ground P8 P8
Black / low speed K6-P K6-P
Red / high speed K3-P K3-P
White / common P37 P20
Pump 3 (A4)
(in.ye-5 only)
Voltage 120 V 240 V
Green / ground P10 P10
Black / line K6-P K6-P
White / common P39 P22
Light (12 V dc, 1.3 A Max.)**
P65
LEDs RGB (in.lu.me only)
P63; P64
Pump 1 (A3)
Voltage 120 V 240 V
Green / ground P8 P8
Black / low speed K2-P K2-P
Red / high speed K4-P K4-P
White / common P38 P21
Pump 2 (A2)
(in.ye-3 only)
Voltage 120 V 240 V
Green / ground P8 P8
Black / low speed K2-P K2-P
White / common P37 P20
